Container
Dimensions
Mounting
Usage temperature
Storage temperature
Ambient humidity in use and in storage
Power supply
Power draw
Display range
Analog inputs
Digital input
Serial
Digital outputs (configurable)
Buzzer output
Measurement range
Accuracy
Resolution
Classification
Please refer to label on the instrument for relay capacity, power supply and terminals layout
11
12
(B)
13
11
L
12
(B)
N 13
L
N
L
N
L
N
Eliwell Controls S.r.l.
Via dell' Industria, 15 Zona Industriale Paludi
32010 Pieve d' Alpago (BL) Italy
Telephone +39 0437 986 111
Facsimile +39 0437 989 066
www.eliwell.it
Technical Customer Support:
+39 0437 986 300 (Italy)
Email: techsuppeliwell@invensyscontrols.com
PC+ABS UL94 V-0 resin plastic casing, polycarbonate glass, keys in thermoplastic resin
front 180x37 mm, depth 43mm
panel mounting with 150x31mm (+0.2/-0.1mm) drilling template
-5°C...55°C
-30°C...85°C
10...90% RH (non-condensing)
230 Va 10% 50/60 Hz
1,5 VA max
–50.0...110°C (–58...230°F) (NTC); –50.0...140°C (–58...230°F) (PTC); on display with 3 and a half digits + sign.
2 NTC or 2 PTC (pre-set in factory)
1 voltage-free configurable as per parameter
TTL for Copy Card connection
2 relay outputs (IWC 720 VS) / 3 relay outputs (IWC 730 VS)
• (A) 1 relay output SPST UL60730 1,5 hp (10FLA - 60LRA) max 240Va
• (C) 1 relay output SPST N.A. 8(3)A ½ hp max 240Va
IWC 730 VS only: • (B) 1 relay output SPDT 8(3)A ½ hp max 240Va
only on models where this is provided - BUZZER ON DEMAND ONLY
from -55 to 110°C (NTC)
better than 0.5% of full-scale +1 digit
0.1°C (0.1°F up to +199.9°F; then 1°F)
• according to its construction, as an independently mounted automatic electronic control device
• according to its automatic operating characteristics, as a 1B-type operated control type device
• according to its software class and structure, as a Class A device
• as a device with pollution grade 2
• as a device with class D fire resistance
• overvoltage category grade II
• device made with class IIIa material
Power
Supply
IWC 720-730 VS WIRING DIAGRAMS
(C) (A)
1 2 3 4 5 6
Power
Supply
(C) (A)
1 2 3 4 5 6
Power
Supply
(C) (A)
1 2 3 4 5 6
Power
Supply
(C) (A)
1 2 3 4 5 6

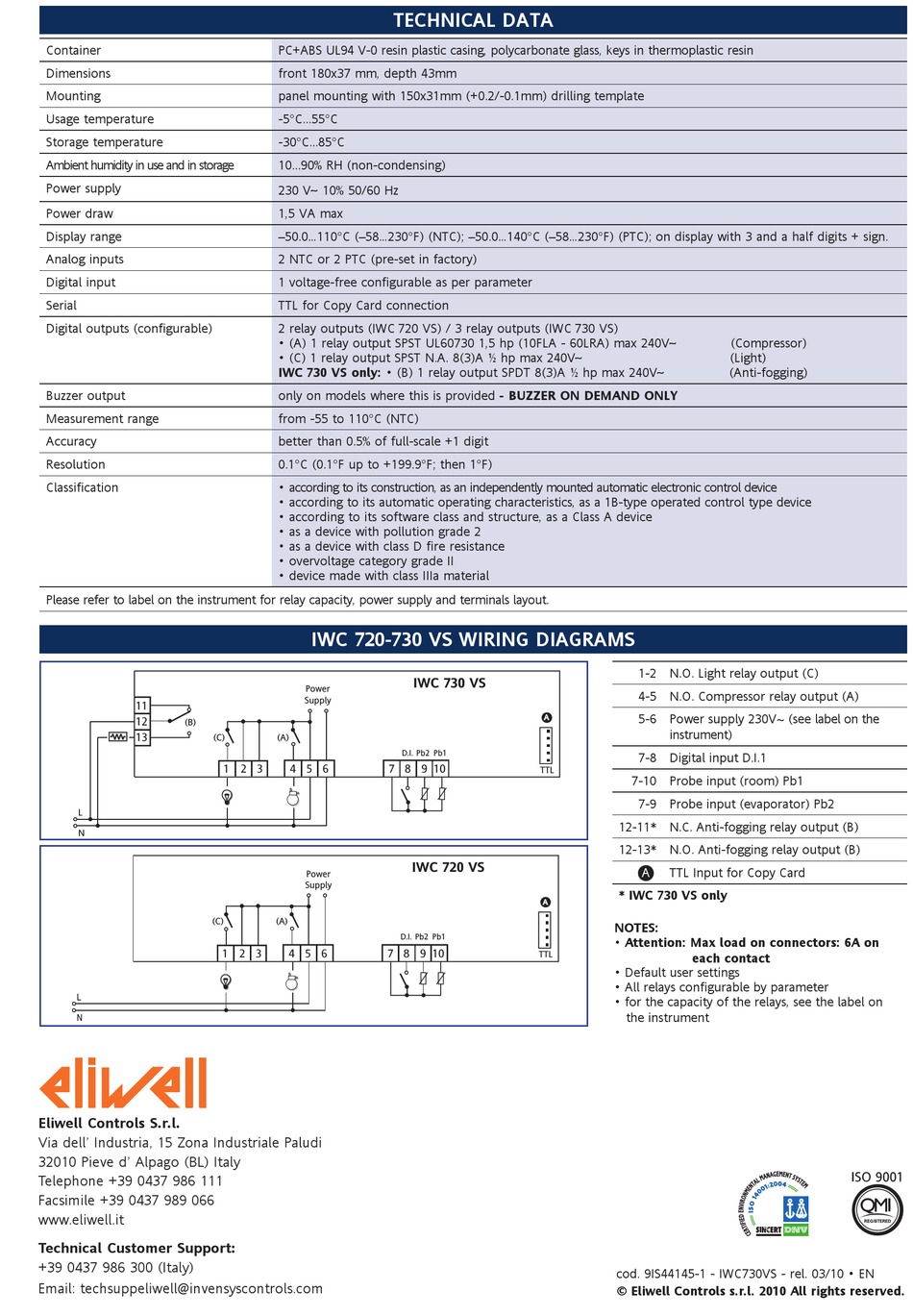

TECHNICAL DATA
IWC 730 VS
.
A
D.I. Pb2 Pb1
7 8 9 10
TTL
IWC 730 VS
A
D.I. Pb2 Pb1
7 8 9 10
TTL
IWC 720 VS
A
D.I. Pb2 Pb1
7 8 9 10
TTL
IWC 720 VS
A
D.I. Pb2 Pb1
7 8 9 10
TTL
(Compressor)
(Light)
(Anti-fogging)
1-2 N.O. Light relay output (C)
4-5 N.O. Compressor relay output (A)
5-6 Power supply 230V~ (see label on the
instrument)
7-8 Digital input D.I.1
7-10 Probe input (room) Pb1
7-9 Probe input (evaporator) Pb2
12-11* N.C. Anti-fogging relay output (B)
12-13* N.O. Anti-fogging relay output (B)
A TTL Input for Copy Card
* IWC 730 VS only
NOTES:
• Attention: Max load on connectors: 6A on
each contact
• Default user settings
• All relays configurable by parameter
• for the capacity of the relays, see the label on
the instrument
cod. 9IS44145-1 - IWC730VS - rel. 03/10 • EN
