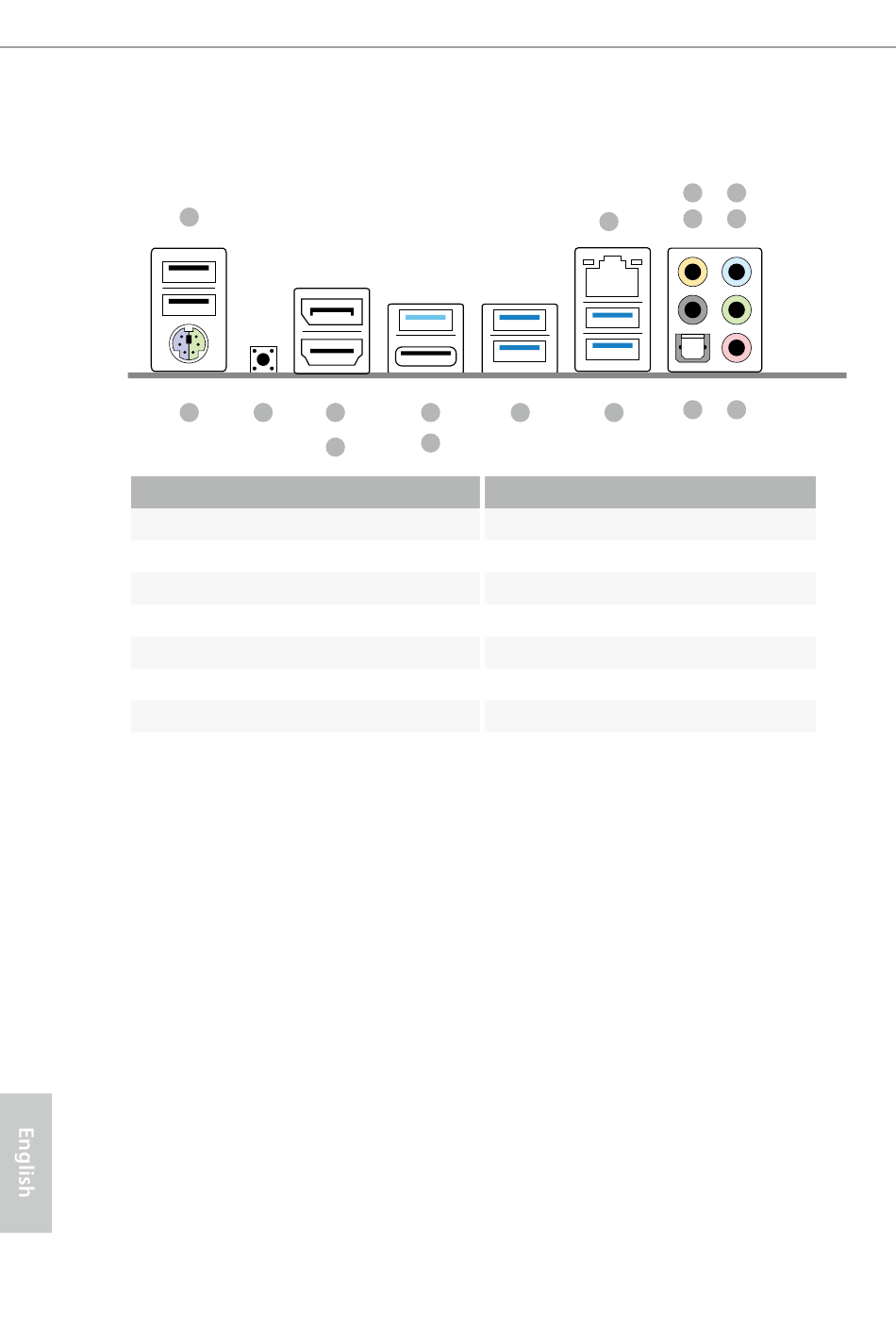

I/O Panel
1
16
No. Description
1 USB 2.0 Ports (USB12)
2 LAN RJ-45 Port*
3 Central / Bass (Orange)
4 Rear Speaker (Black)
5 Line In (Light Blue)
6 Front Speaker (Lime)**
7 Microphone (Pink)
8 Optical SPDIF Out Port
4
15 13 11
12
14
2
10 9
No. Description
9 USB 3.0 Ports (USB3_34)
10 USB 3.0 Ports (USB3_12)
11 USB 3.1 Type-A Port (USB31_TA_1)
12 USB 3.1 Type-C Port (USB31_TC_1)
13 DisplayPort 1.2
14 HDMI Port
15 Clear CMOS Switch
16 PS/2 Mouse/Keyboard Port
3 5
4 6
8 7
