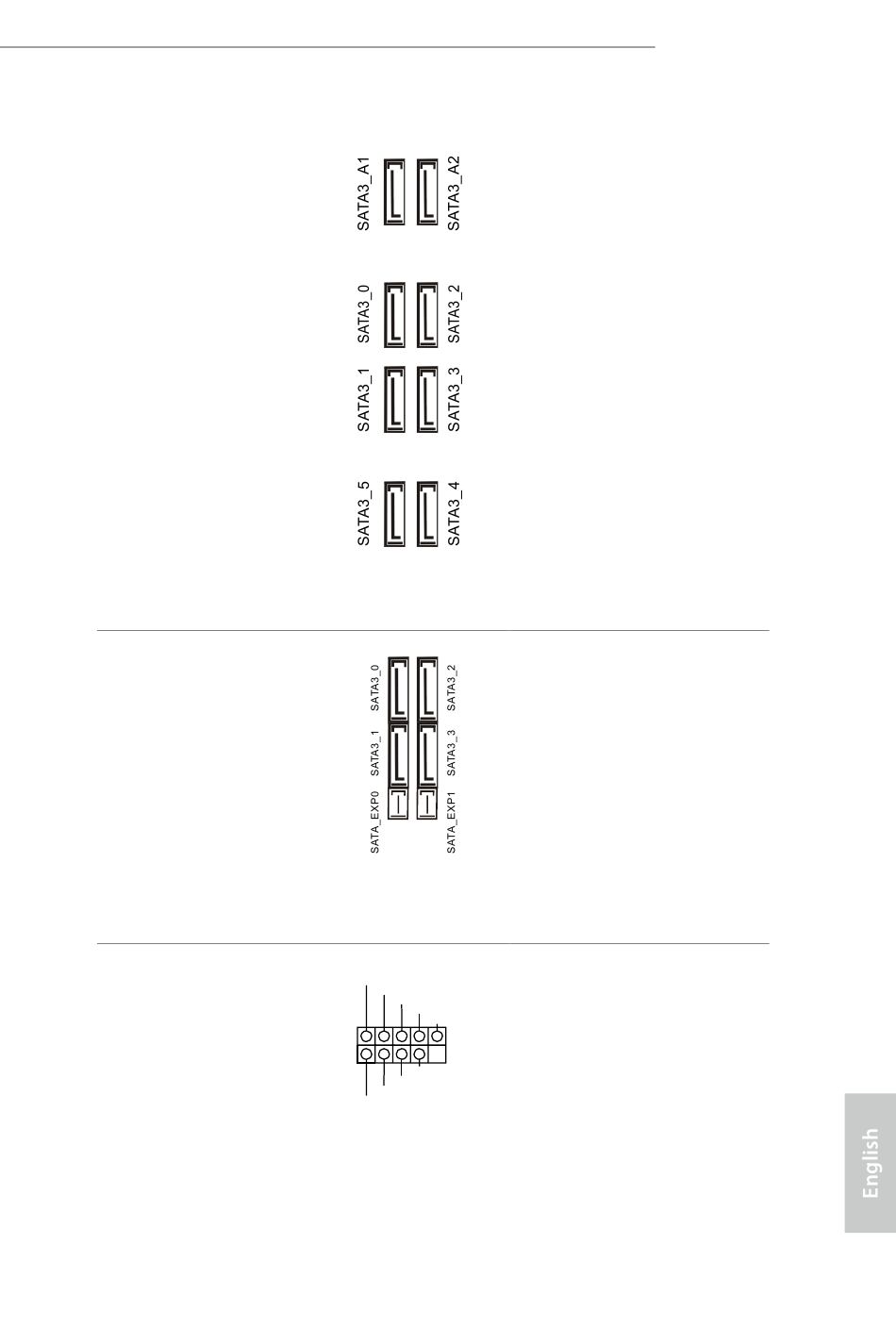

Serial ATA3 Connectors
(SATA3_0
see p.1, No. 20)
(SATA3_1:
see p.1, No. 22)
(SATA3_2:
see p.1, No. 21)
(SATA3_3:
see p.1, No. 23)
(SATA3_4:
see p.1, No. 27)
(SATA3_5:
see p.1, No. 26)
(SATA3_A1
see p.1, No. 18)
(SATA3_A2
see p.1, No. 17)
Serial ATA Express
Connectors
(SATA_EXP_0:
see p.1, No. 24)
(SATA_EXP_1:
see p.1, No. 25)
USB 2.0 Headers
(9-pin USB3_4)
(see p.1, No. 33)
(9-pin USB5_6)
(see p.1, No. 32)
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
Z170M OC Formula
These eight SATA3
connectors support SATA
data cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate. The SATA3_0,
SATA3_1 are shared with
the SATA_EXP0. The
SATA3_2, SATA3_3 are
shared with the SATA_
EXP1. To minimize the
boot time, use Intel® Z170
SATA ports (SATA3_0)
for your bootable devices.
Please connect either
SATA or PCIe storage
devices to these
connectors.
*The upper SATA Express
Connector (SATA_
EXP0) is shared with
the SATA3_0, SATA3_1
and the Ultra M.2 Socket
(M2_1).
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
