CONNECTION OF FUME EXHAUST VENT
Important
Make the connection in compliance with
the relevant legal requirements, using ap-
propriate and recommended materials.
Connecting to a fan extractor hood
To carry out this operation, proceed as follows.
A

ELECTRICAL CONNECTION

Important
The connection must be made by author-
ised, skilled personnel, in accordance with
the relevant legal requirements, using ap-
propriate and specified materials.
The appliance is supplied with operating
voltage 230V/1N 50Hz (220V/1N 60Hz avail-
able on request).
Caution - warning
Before doing any work, cut off the mains elec-
tricity supply.
Connect the appliance to the mains electricity sup-
ply as follows.
1 - If not already present, install a circuit-breaker
(A) with overload cutout and differential safety
breaker close to the appliance.
A

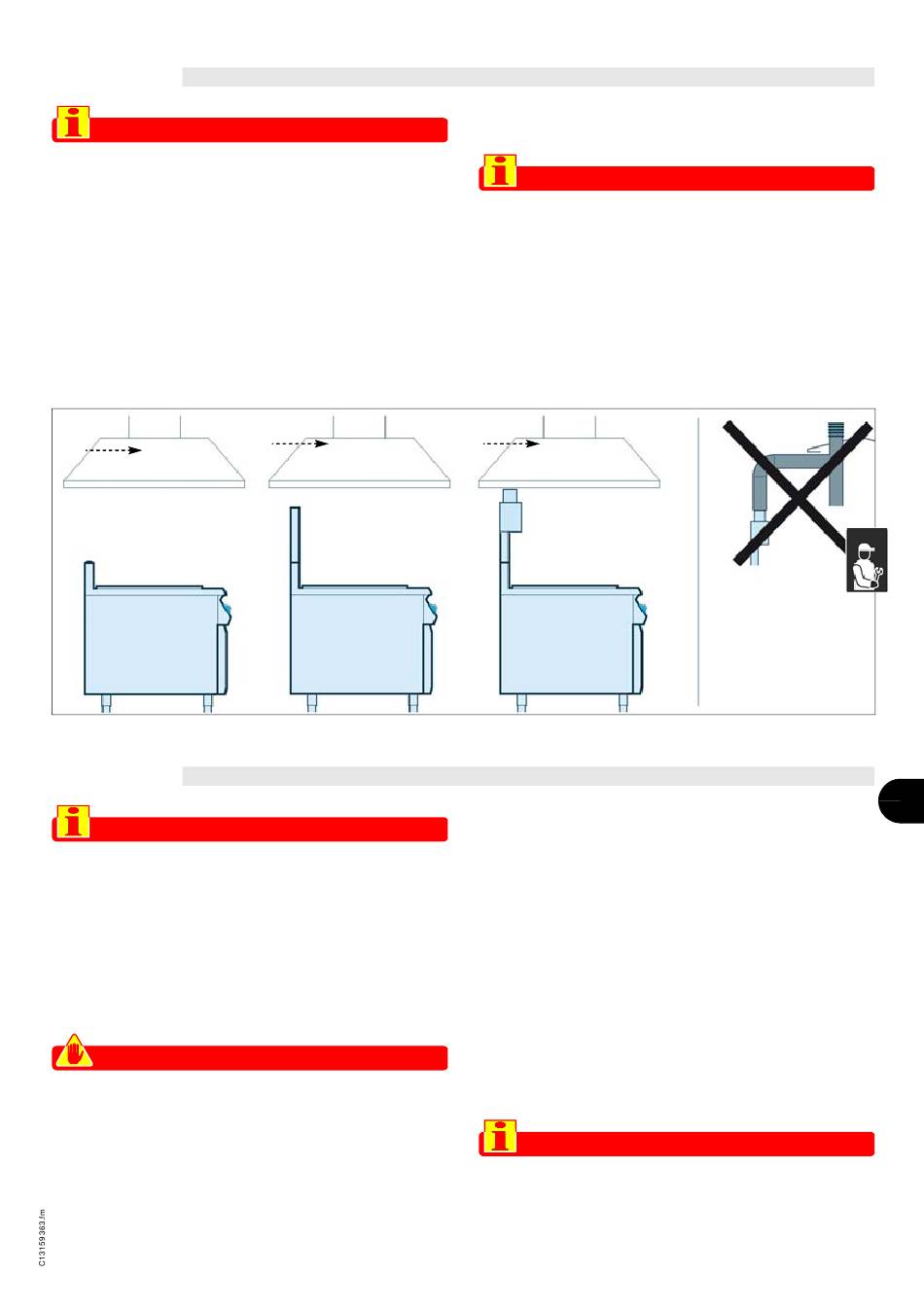

1 - Position the appliance underneath the hood (A)
(see diagram).
Important
The gas supply tap must open automatical-
ly when the fan of the extraction system is
switched on.
A
2 - Undo the screws (B) to remove the control pan-
el (C).
3 - Undo the screws (D) to remove the guard (E).
4 - Fit the power supply cable into the cable gland
(F).
5 - Connect the circuit-breaker (A) to the terminal
board (G) of the appliance as shown in the dia-
gram and in the electrical system diagram at
the back of the manual.
Use a flexible cable with at least type H07RN-F
characteristics, rated for an operating tempera-
ture of at least 80°C.
Important
When connecting, take care to connect the
neutral and earth lines.
