MILLENIUM VALIDO
Installation and connections
Chapter 3
DANGER
All operations described in this chapter
shall be carried out by skilled and author-
ized technicians, only.
3.1 -
OVEN LIFTING (Fig 1)
The oven lifting shall be carried out by using a crane or
a tackle as follows:
• The oven shall slightly alternatively be lifted from its
four sides using a lever and making sure the panels
are not damaged, then the oven shall be positioned
on shims (1).
• insert two belts (2) being properly dimensioned
according to the weight of the oven, under the base
(3) of the latter and connect them with a hook (4) of
a crane or a tackle.
ATTENTION
To hoist the machine do not use steel belts
as they may damage the outside body.

3.2 - ASSEMBLING OF THE COMPONENTS

IMPORTANT
Regarding the assembling of the support,
the hood and the relevant components,
please follow the instructions in the relevant
handbooks.
• Position the support (1) near the final oven installa-
tion area by positioning its possible braking wheels
(optional) onto the front side.
Brake the front wheels by the lever (2) or level the
oven by operating its adjustable feet (3) depending
on the kind of support.
Single-chamber oven assembling (Fig 2)
• The oven (4) shall be lifted as indicated in "lifting"
paragraph and positioned on the base.
• Fix the oven (4) to the support (1) by the screws (5)
and the washers supplied with the support set.

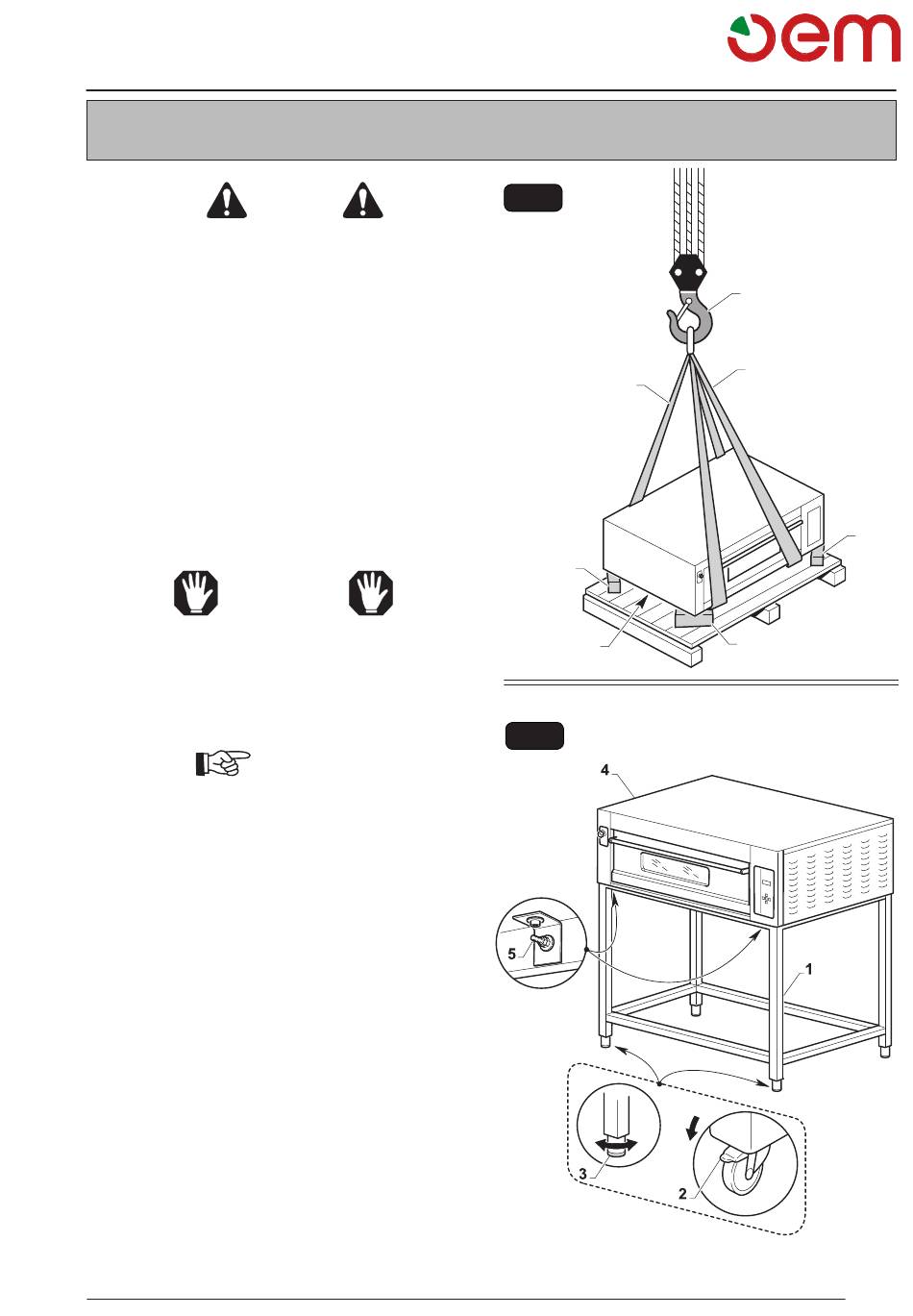

FIG. 1
2
1
3
FIG. 2
4
2
1
1
EN - 11
