en 54 | TCE 4460-TCE 4465 | Adjustment
4.4

Adjusting tool assembly

1. Fit a reference rim (15"-17").
2. Move the horizontal sliding arm into the working area.
3. Move the mounting head into contact with the edge
of the rim.
i The roller and the surface of the tool must make con-
tact with the rim as shown in the illustration.
4. Lock the mounting head with the button (A).

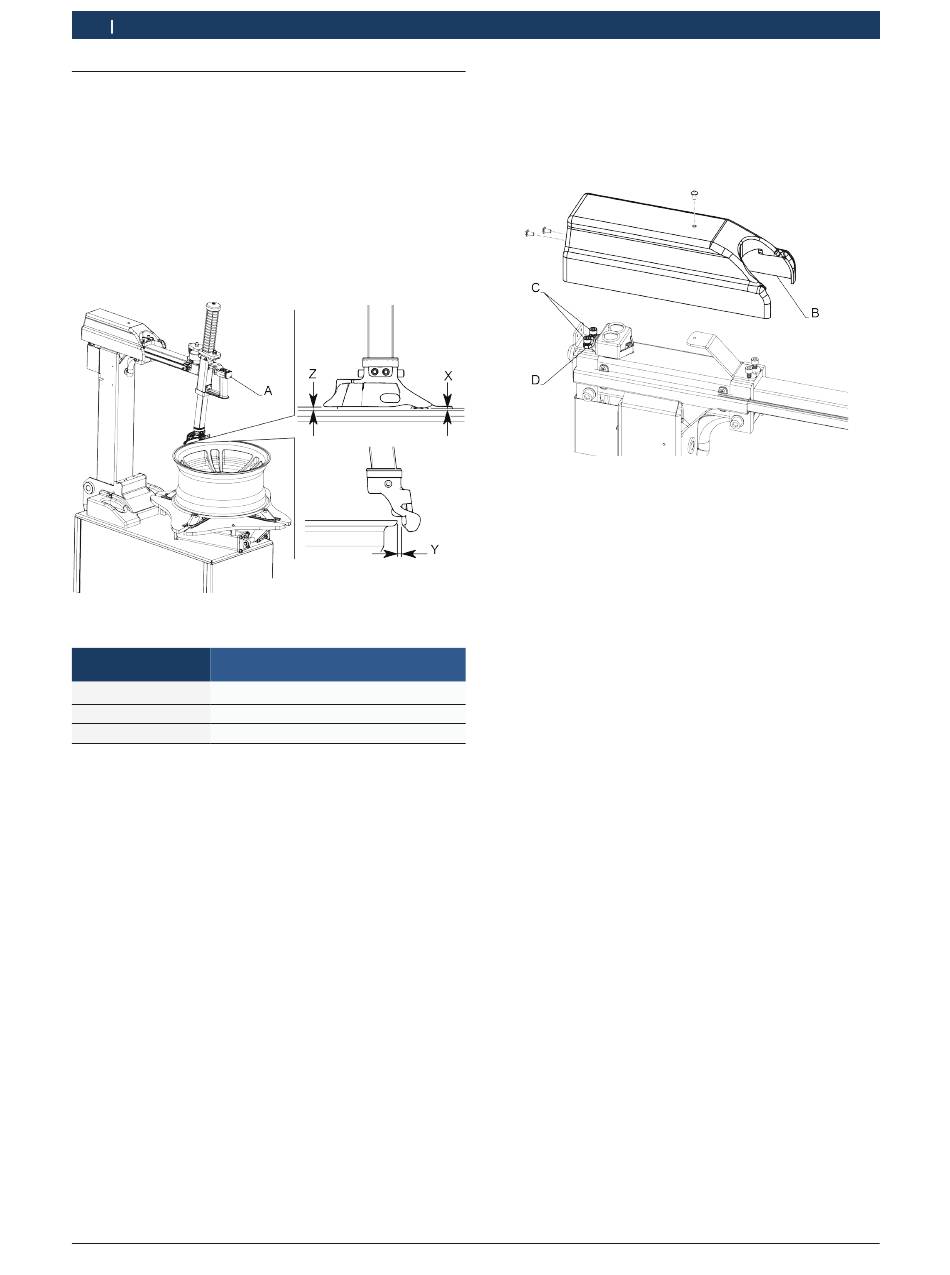

Fig. 46: Optimum distance
Distance
X
Y
Z
Tab. 2: Optimum distance
i For proper operation: After locking the mounting head,
check whether the distance between the tool and the
rim corresponds to the values in Fig. 49 and Tab. 5.
|
1 695 100 278 2013-12-03
4.4.1
1. Remove the rear protective cap (B) from the horizontal
Fig. 47:
2. Localize the bolts (C) at the rear of the sliding arm.
3. Unfasten the locking nuts (D).
4. Completely unscrew and remove one of the two bolts
5. Slacken off the other bolt and turn to adjust the hor-
6. Repeatedly check the distance produced on turning
mm
7. Repeat the operation until the required distance is
2.5 +/- 0.5
2.5 +/- 0.7
8. Screw the other bolt back in again once the desired
2.5 +/- 0.5
9. Unlock the mounting head.
10. Move the mounting head to the edge of the rim.
11. Lock the mounting head to check the set distance.
12. Re-tighten both locking nuts (D).

Adjusting horizontal distance

sliding arm.
Removing rear protective cap
(C).
izontal distance (Y) between the mounting head and
the edge of the rim.
the bolt.
obtained.
distance has been obtained.
