Hauff-Technik MSH Basic-MBK-R4 Montageanweisung Seite 34

Building package MSH Basic-FUBO-GK-SR4 / MBK-R4

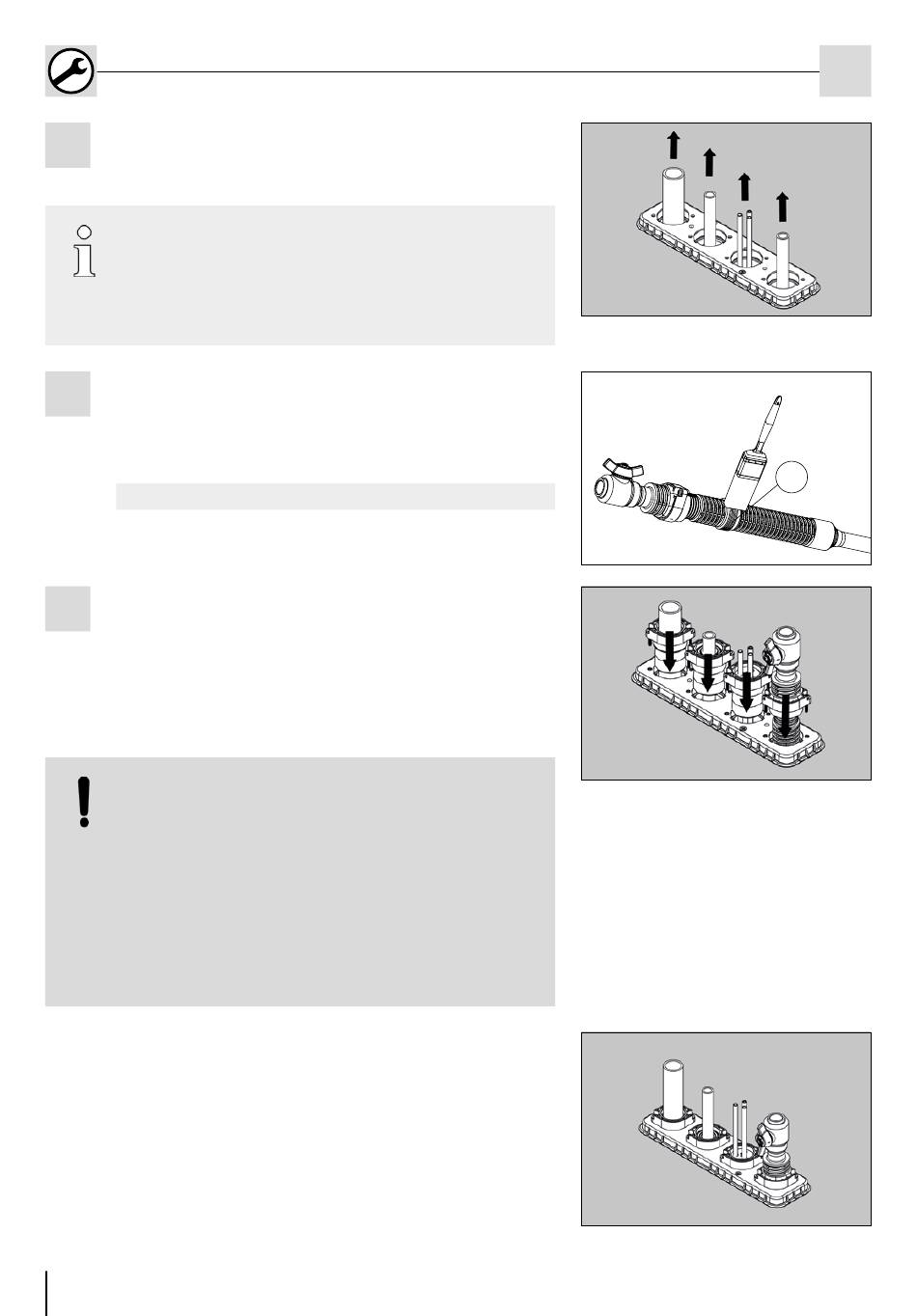

Now it is possible to feed in the various connection lines
5
for gas, water, power and telecommunications through
the ducts (see fig.: 24).
• Consult the supplier before feeding through the
media lines.
• The service sealing elements are applied according
to the instructions enclosed. PolySafe sealing
elements and sleeve caps.
If a gas fitting is to be installed, the pre-assembled sec-
6
ondary sealing element must be spread sufficiently with
GMT lubricant (see fig.: 25).
Legend for Fig.: 25
1 Secondary sealing element
Introduce individual sealing elements and gas building
7
entry into the MSH Basic-MBK-R4 seal insert.
Then tighten the flaps of the sealing element with the
plastic tapping screws until they are flush with the inner
plate of the MSH or a torque of 14 Nm has been reached
(see fig.: 26).
IMPORTANT!
No sealing due to incorrect preparation of
installation!
Incorrect preparation can result in damage.
• All four sealing elements must be installed, even if
only some of the media channels are to be used.
• If no gas fitting is to be installed for the time
being, the blind sealing element included must
be fitted.
Fully assembled MSH Basic-MBK-R4 seal insert (see fig.: 27).
►
34
Art. Nr.: 5090032089 Rev.: 01/2018-07-05
EN
Fig.: 24
Fig.: 25
1
Fig.: 26
Fig.: 27
