Building package MSH Basic-FUBO-GK-SR4 / MBK-R4

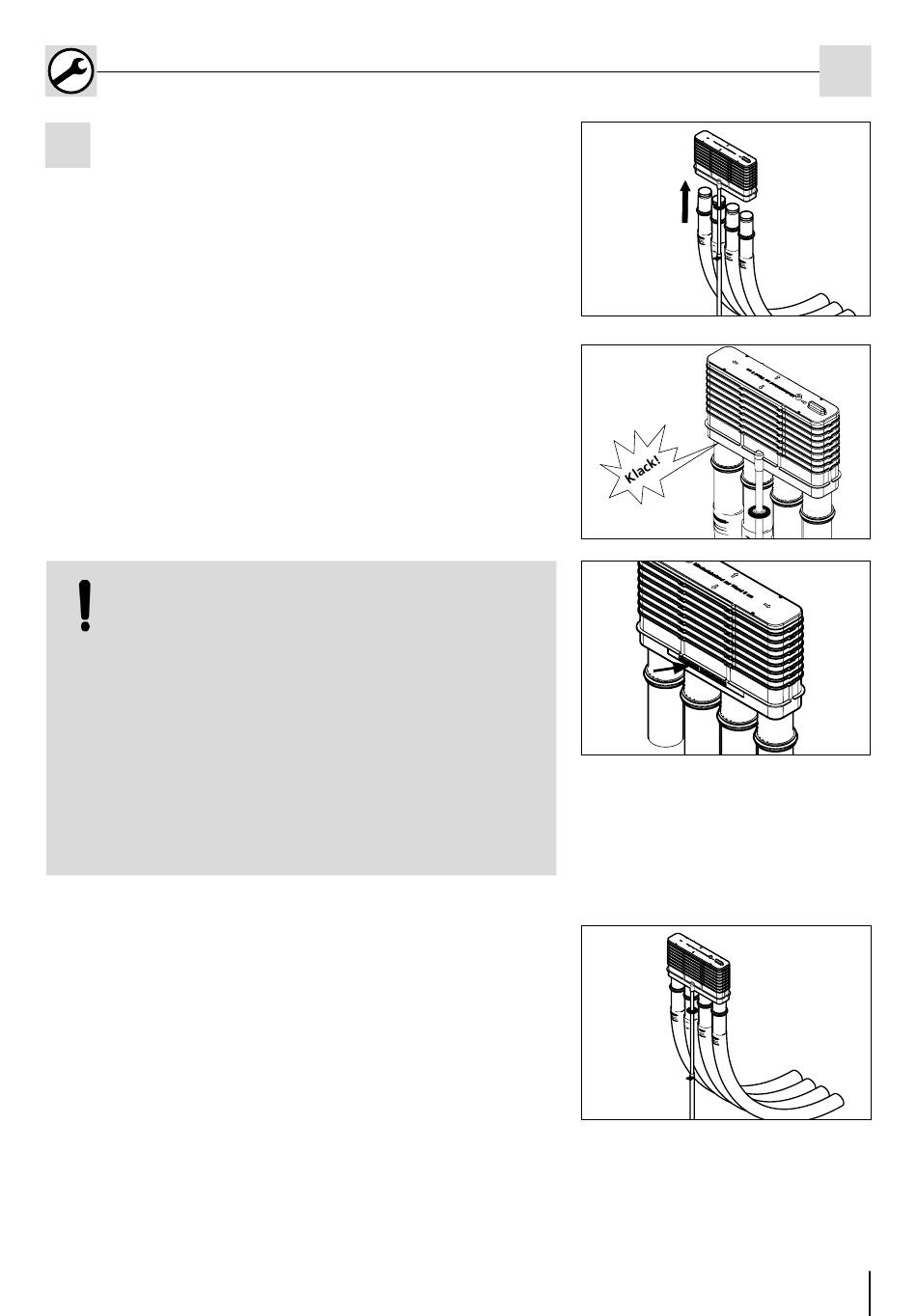

Insert KES hose systems successively from the bottom into
7
the openings of the MSH Basic-FUBO-GK-SR4 (basic unit)
until they audibly click into place (see fig.: 9 and fig.: 10).
Detail (see fig.: 10)
IMPORTANT!
No sealing due to incorrect preparation of
installation!
Incorrect preparation can result in damage.
• On the MSH Basic-FUBO-GK-SR4 (basic unit) there
is a label/marking "Upper edge of unfinished
floor" (see fig.: 11).
• The 3-ribbed seals must always be located in
the concrete plate.
• The water barrier flange from the ground spike
may not be at the same height as the 3-ribbed
seal of the casing pipe for reasons of space.
MSH Basic-FUBO-GK-SR4 (basic unit) with inserted KES
►
hose systems (see fig.: 12).
Art. Nr.: 5090032089 Rev.: 01/2018-07-05
EN
Fig.: 9
Fig.: 10
Fig.: 11
Fig.: 12
