Building package MSH Basic-FUBO-GK-SR4 / MBK-R4
9

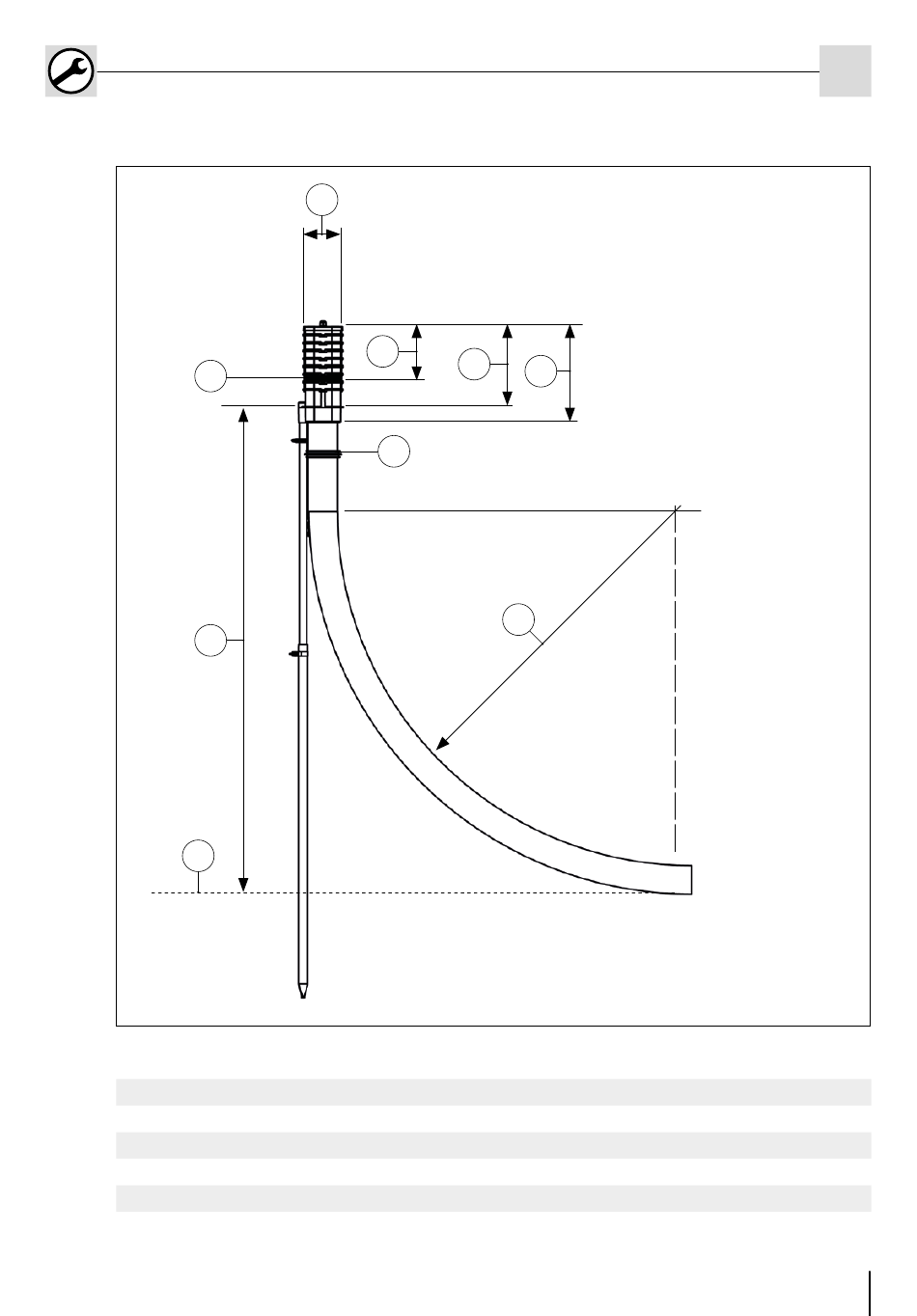

Dimensioning MSH Basic-FUBO-GK-SR4 (basic unit)

9
2
1
Legend for fig.: MSH Basic-FUBO-GK-SR4 (basic unit)
1 Trench bottom
2 1500 mm
3 L: 479 mm / W: 116 mm
4 Shortening area 155 mm
5 Marking of unfinished floor upper edge 235 mm
6 Basic unit 270 mm
3
4
5
7
Art. Nr.: 5090032089 Rev.: 01/2018-07-05
6
8
7 3-ribbed seal (adjustable)
8 Bend radius ≥1000 mm
9 red frame
EN
25
