Building package MSH Basic-FUBO-GK-SR4 / MBK-R4

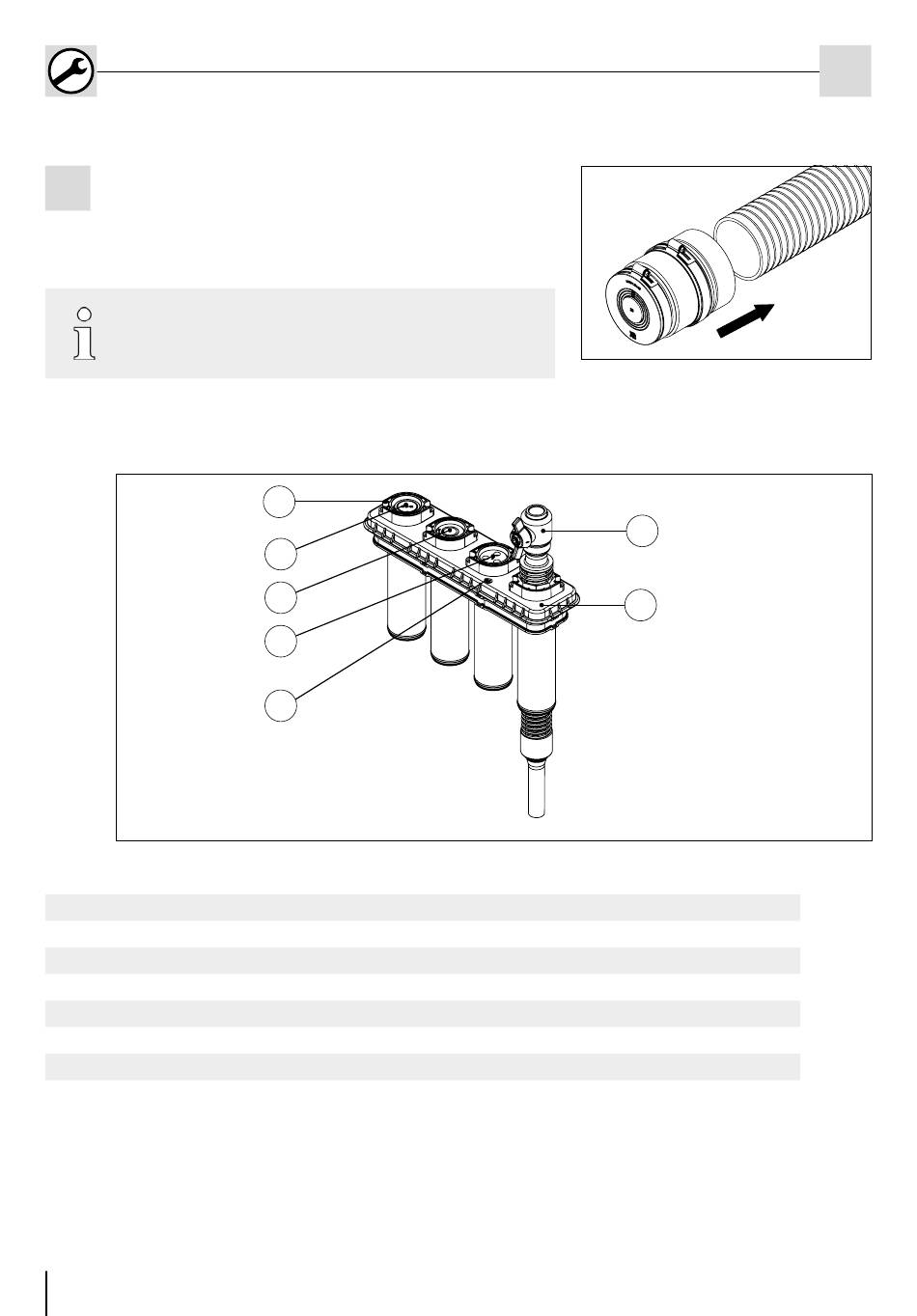

14 Assembly of sleeve caps

The sleeve caps are fitted at the pipe end of the KES
1
cable entry systems or at the end of the extended pipe
systems. The details apply as contained in the assembly
instructions attached: "PolySafe sealing elements and
sleeve caps" (see fig.: 19).
All sleeve caps are fitted before the cables/pipes are
installed, even if not all sleeve caps are to be used.

15 Description of MSH Basic-MBK-R4 seal insert

Legend for fig.: MSH Basic-MBK-R4 with exemplary configuration
1 Schuck DN25 gas fitting (not included)
2 MSH Basic-MBK-R4 seal insert
3 Nail screw
4 Sealing element M-KD 1/13-21+3/7-13+1/5-13
5 Sealing element M-ED 1/20-34
6 Sealing element M-WD 1/32-50
7 Plastic tapping screw
32
7
6
5
4
3
Art. Nr.: 5090032089
1
2
Position of seal inserts defined according to coordination of lots
Rev.: 01/2018-07-05
EN
Fig.: 19
Fig.: MSH Basic-MBK-R4
with exemplary configuration
