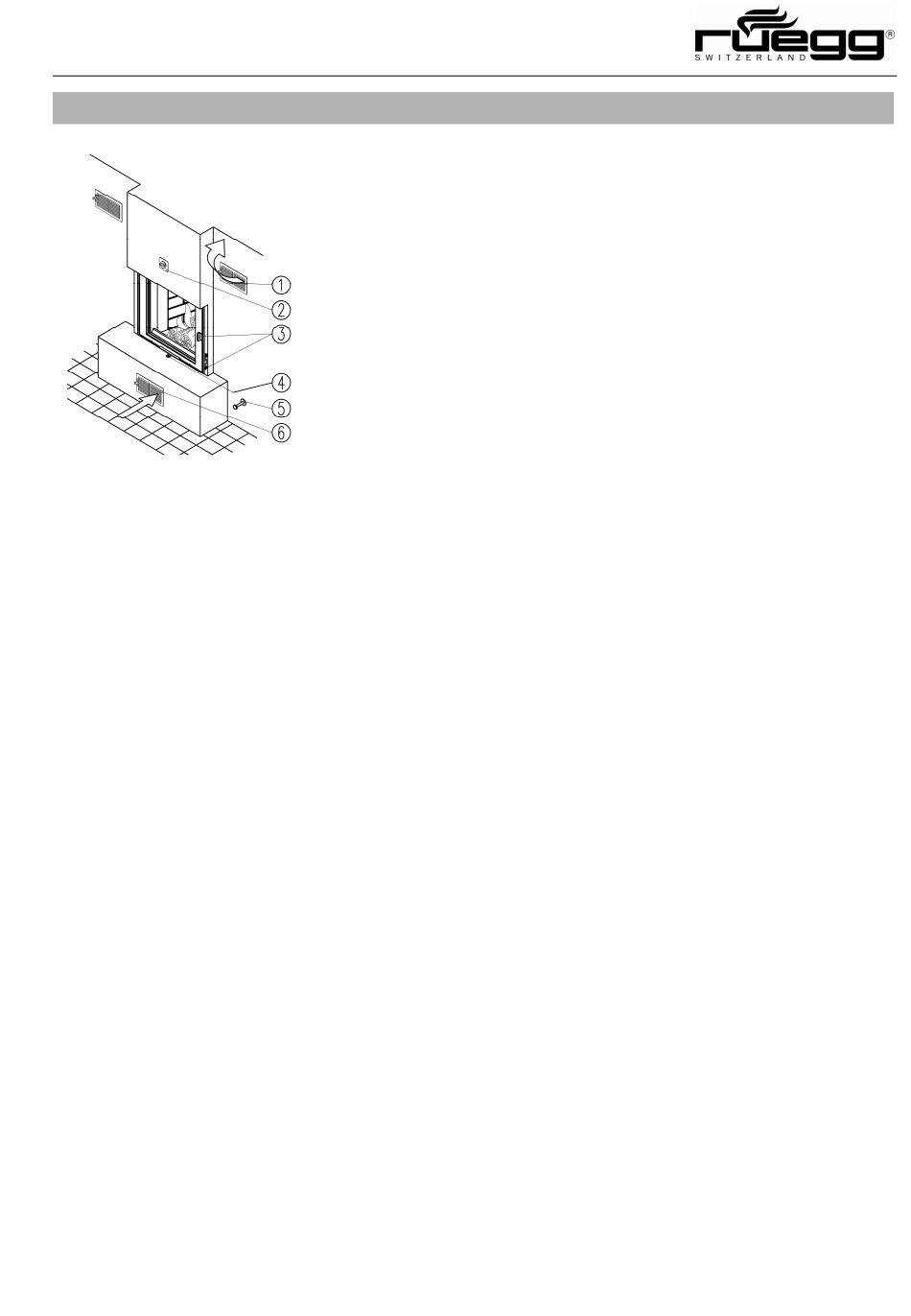

3. Functional elements

79
Instruction manual
[1] supply air/hot air outlet
[2] possibly present deflector valve (for deflexion of
the heating gases into supplementary heating
surfaces) or throttle valve
[3] door lock:
- K fireplace inserts: on the side of the door
- HK fireplace inserts: on the right side behind
the door
[4] combustion air control handle (valve integrated
in appliance)
[5] outside/fresh air valve handle (mandatory for
open operation) or for the style appliances
[6] circulating air/ambient air inlet
