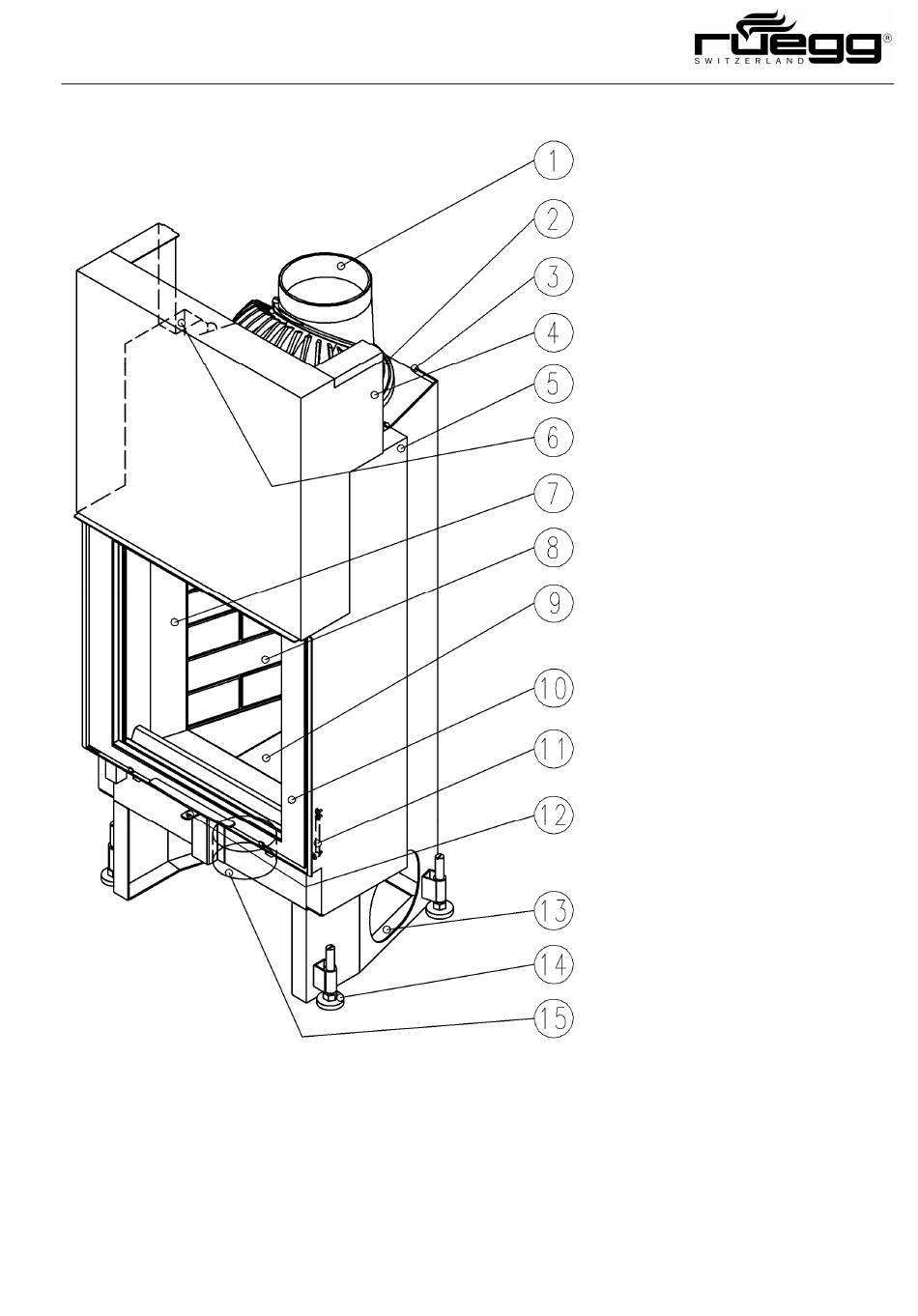

2.2. HK fireplace inserts (pane flue appliances)
Instruction manual
flue gas outlet
(made of cast)
exhaust manifold dome
(made of cast)
furnace metal sheet cover-
ing
head plate
lock box
(right side)
counterweight box
(left side)
air-wash air channel
(pane washing)
fireclay furnace with deflec-
tor plate
fireclay insert stone
changeable with cast grating and
ash pan accessory)
door with handle
(can be pushed up)
lock slider pull handle
combustion air control
handle
passage opening
(for outside/fresh air duct)
mount
(height adjustable with
sound absorber insert)
combustion air connection
piece
(inter-
78
