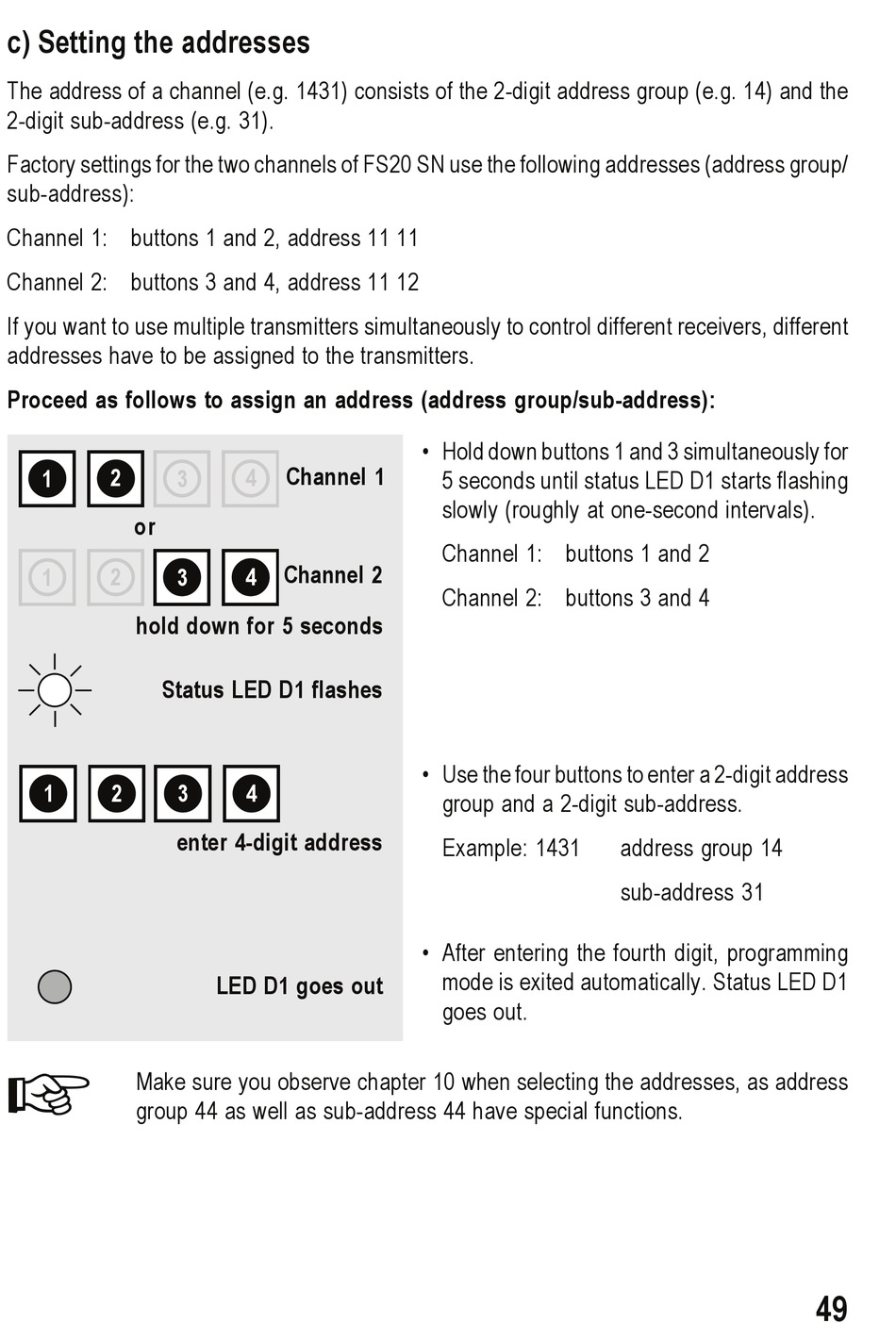

c) Setting the addresses

The address of a channel (e.g. 1431) consists of the 2-digit address group (e.g. 14) and the
2-digit sub-address (e.g. 31).
Factory settings for the two channels of FS20 SN use the following addresses (address group/
sub-address):
Channel 1: buttons 1 and 2, address 11 11
Channel 2: buttons 3 and 4, address 11 12
If you want to use multiple transmitters simultaneously to control different receivers, different
addresses have to be assigned to the transmitters.
Proceed as follows to assign an address (address group/sub-address):
2
1
or
2
1
hold down for 5 seconds
Status LED D1 flashes
1 2

Make sure you observe chapter 10 when selecting the addresses, as address
group 44 as well as sub-address 44 have special functions.
Channel 1
4
3
Channel 2
4
3
3 4
enter 4-digit address
LED D1 goes out
• Hold down buttons 1 and 3 simultaneously for
5 seconds until status LED D1 starts flashing
slowly (roughly at one-second intervals).
Channel 1: buttons 1 and 2
Channel 2: buttons 3 and 4
• Use the four buttons to enter a 2-digit address
group and a 2-digit sub-address.
Example: 1431
• After entering the fourth digit, programming
mode is exited automatically. Status LED D1
goes out.
address group 14
sub-address 31
49
