g) Set on-time

The on-time sent to the FS20 receiver is adjustable between 0.25 seconds and 4.25 hours (255
minutes).
Required
2-digit number
11
12
13
14
21
22
23
24
31
32
33
34
41
42
43
44
Example (factory settings): 1 minute = input 44 21 = 15 x 4 seconds = 60 seconds
1 2
or
1 2
hold down for 5 seconds
Status LED D1 flashes
1 2
Status LED D1 goes out
Value
(1. and 2. digit)
infinite
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Channel 1
3 4
Channel 2
3 4
3 4
Enter on-time
Multiplier
(3. and 4. digit)
0.25 seconds
0.5 seconds
1 second
2 seconds
4 seconds
8 seconds
16 seconds
32 seconds
64 seconds = 1.07 minutes
128 seconds = 2.13 minutes
256 seconds = 4.27 minutes
512 seconds = 8.53 minutes
1024 seconds = 17.07 minutes
1024 seconds = 17.07 minutes
1024 seconds = 17.07 minutes
1024 seconds = 17.07 minutes

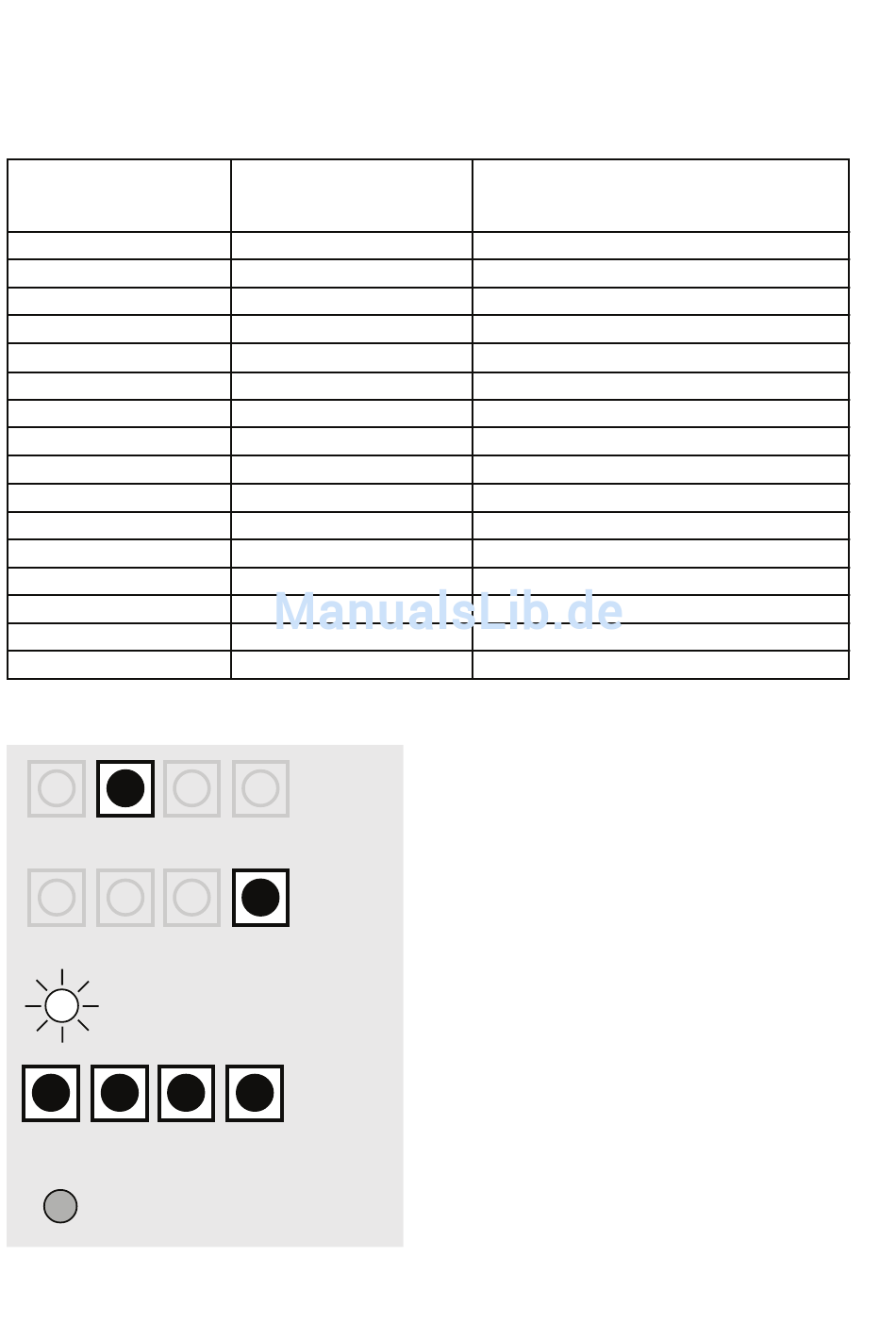

• To set channel 1, hold down button 2 for 5
seconds, until status LED D1 flashes.
Use button 4 for channel 2.
• Then enter the transmission interval according
to the table above.
Example: 1232 = 1 x 128 = 128 seconds
• When the new settings are entered, status
LED D1 goes out.
