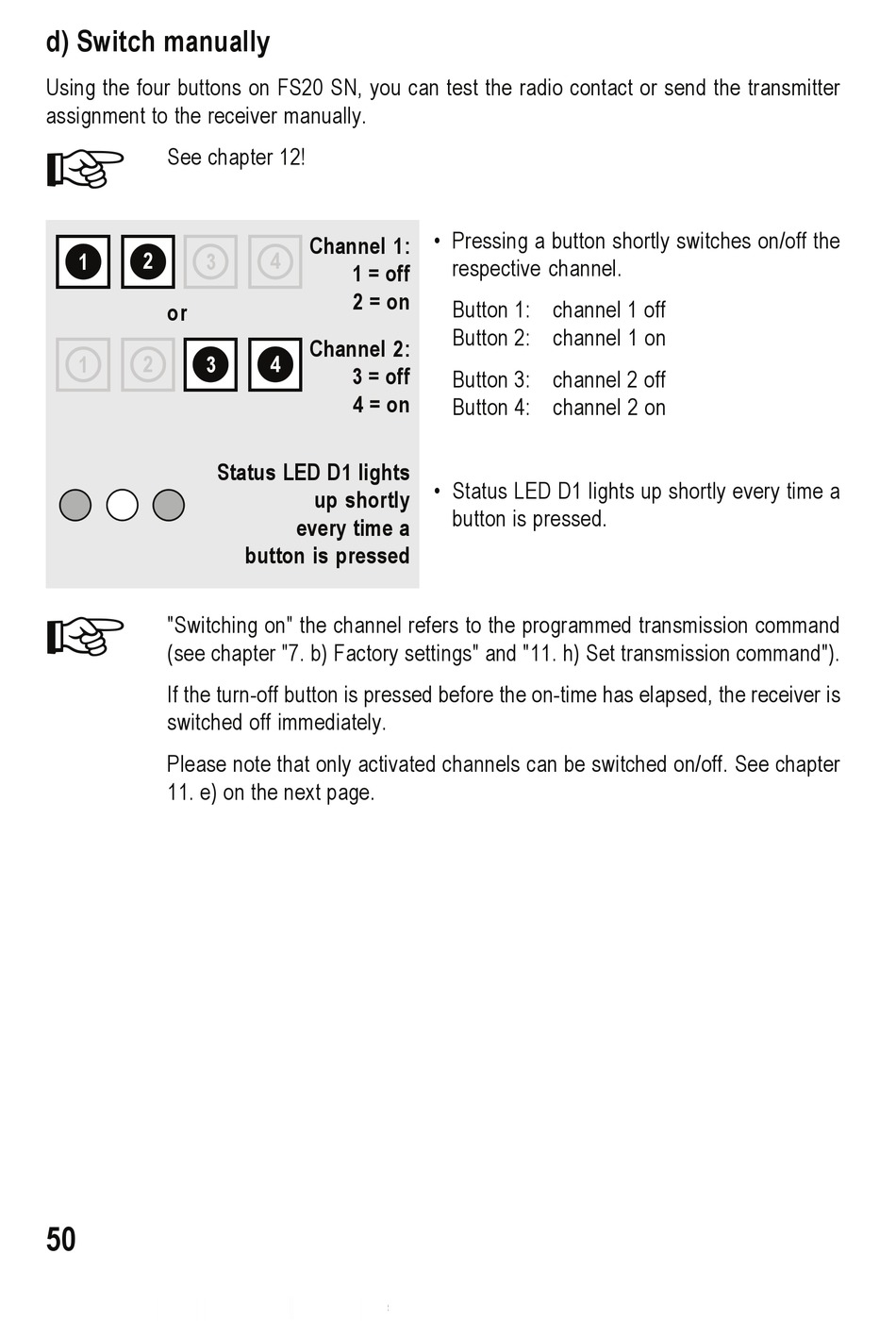

d) Switch manually

Using the four buttons on FS20 SN, you can test the radio contact or send the transmitter
assignment to the receiver manually.

See chapter 12!
2
1
or
2
1

"Switching on" the channel refers to the programmed transmission command
(see chapter "7. b) Factory settings" and "11. h) Set transmission command").
If the turn-off button is pressed before the on-time has elapsed, the receiver is
switched off immediately.
Please note that only activated channels can be switched on/off. See chapter
11. e) on the next page.
50
Channel 1:
4
3
1 = off
2 = on
Channel 2:
4
3
3 = off
4 = on
Status LED D1 lights
up shortly
every time a
button is pressed
• Pressing a button shortly switches on/off the
respective channel.
Button 1: channel 1 off
Button 2: channel 1 on
Button 3: channel 2 off
Button 4: channel 2 on
• Status LED D1 lights up shortly every time a
button is pressed.
