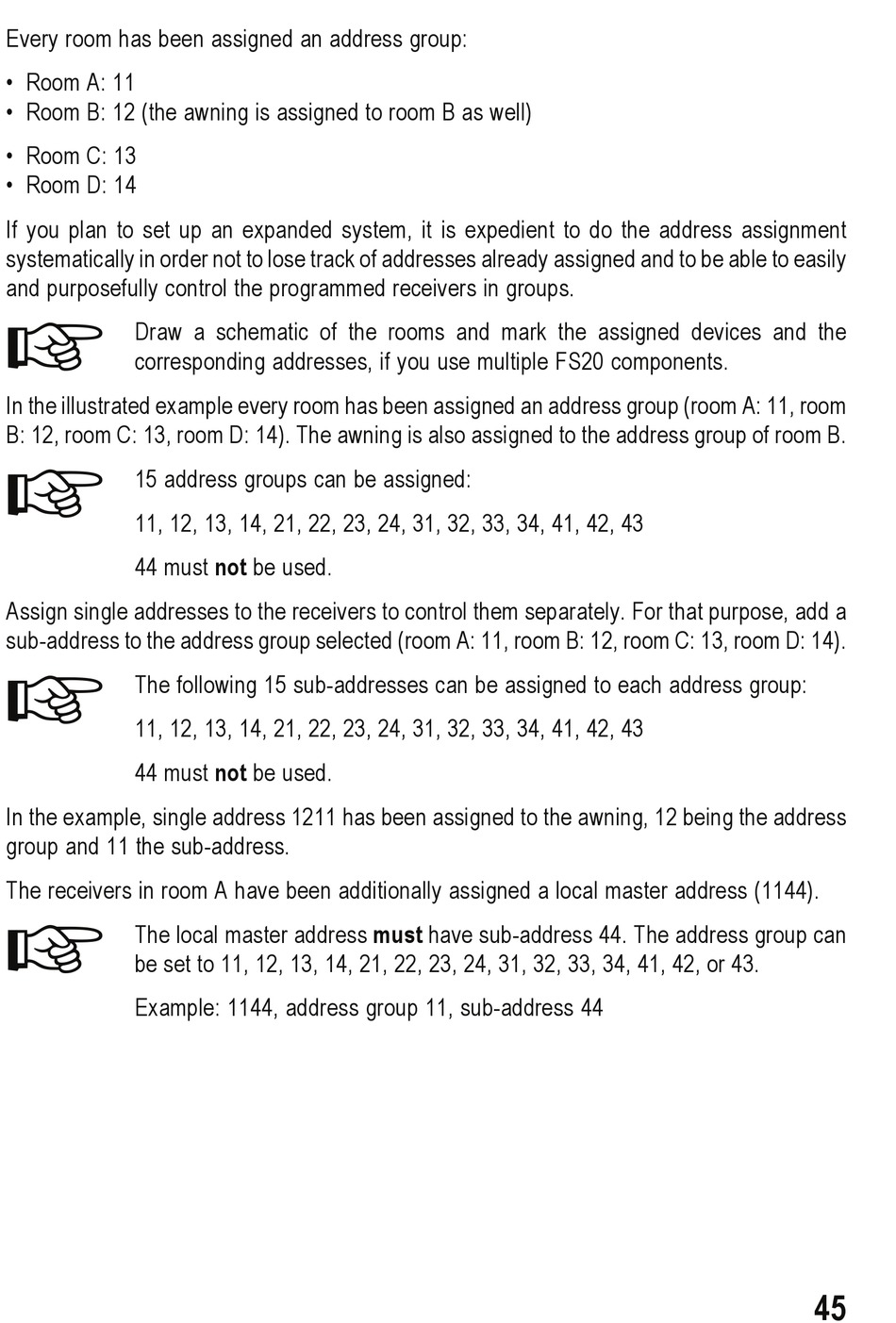

Every room has been assigned an address group:
• Room A: 11
• Room B: 12 (the awning is assigned to room B as well)
• Room C: 13
• Room D: 14
If you plan to set up an expanded system, it is expedient to do the address assignment
systematically in order not to lose track of addresses already assigned and to be able to easily
and purposefully control the programmed receivers in groups.

Draw a schematic of the rooms and mark the assigned devices and the
corresponding addresses, if you use multiple FS20 components.
In the illustrated example every room has been assigned an address group (room A: 11, room
B: 12, room C: 13, room D: 14). The awning is also assigned to the address group of room B.

15 address groups can be assigned:
11, 12, 13, 14, 21, 22, 23, 24, 31, 32, 33, 34, 41, 42, 43
44 must not be used.
Assign single addresses to the receivers to control them separately. For that purpose, add a
sub-address to the address group selected (room A: 11, room B: 12, room C: 13, room D: 14).

The following 15 sub-addresses can be assigned to each address group:
11, 12, 13, 14, 21, 22, 23, 24, 31, 32, 33, 34, 41, 42, 43
44 must not be used.
In the example, single address 1211 has been assigned to the awning, 12 being the address
group and 11 the sub-address.
The receivers in room A have been additionally assigned a local master address (1144).

The local master address must have sub-address 44. The address group can
be set to 11, 12, 13, 14, 21, 22, 23, 24, 31, 32, 33, 34, 41, 42, or 43.
Example: 1144, address group 11, sub-address 44
