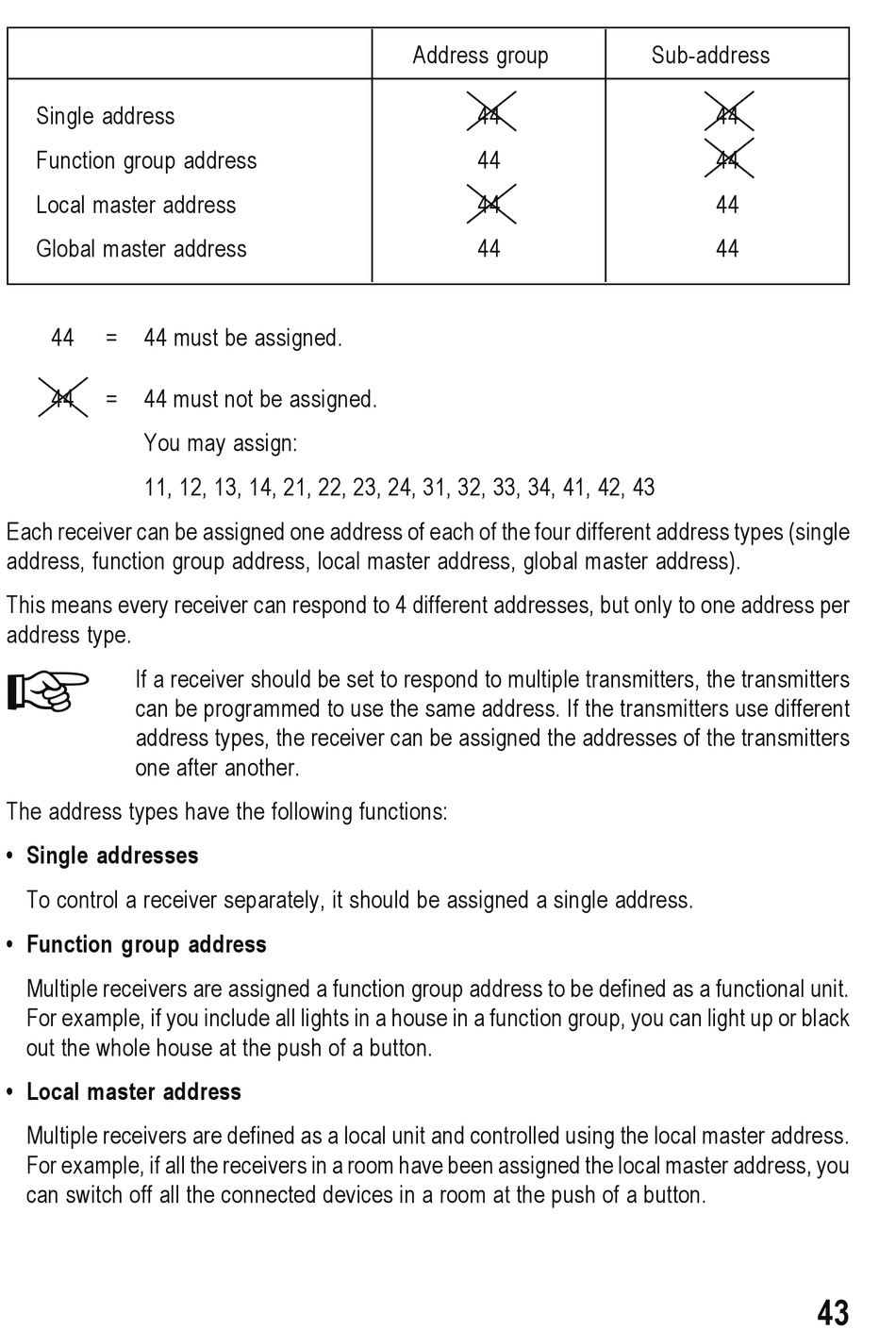

Conrad FS20 SN Bedienungsanleitung Seite 43

Single address
Function group address
Local master address
Global master address
44 = 44 must be assigned.
44 = 44 must not be assigned.
You may assign:
11, 12, 13, 14, 21, 22, 23, 24, 31, 32, 33, 34, 41, 42, 43
Each receiver can be assigned one address of each of the four different address types (single
address, function group address, local master address, global master address).
This means every receiver can respond to 4 different addresses, but only to one address per
address type.

If a receiver should be set to respond to multiple transmitters, the transmitters
can be programmed to use the same address. If the transmitters use different
address types, the receiver can be assigned the addresses of the transmitters
one after another.
The address types have the following functions:
• Single addresses
To control a receiver separately, it should be assigned a single address.
• Function group address
Multiple receivers are assigned a function group address to be defined as a functional unit.
For example, if you include all lights in a house in a function group, you can light up or black
out the whole house at the push of a button.
• Local master address
Multiple receivers are defined as a local unit and controlled using the local master address.
For example, if all the receivers in a room have been assigned the local master address, you
can switch off all the connected devices in a room at the push of a button.
Address group
44
44
44
44
Sub-address
44
44
44
44
43
