4
−
Mark cell, with an arrow, points to the selected function in editing mode;
−
Skip function cell, with multiple red arrows to one point, shows that this function
is connected by a jump or a loop (see par. 5.10). The little arrow button on the
cell can be used, if selected with the pointing device, to see the name of the
calling function.
−
Function name cell, shows the unique name assigned to the function. The
name is used to connect jump or loop functions to this one.
By selecting this box it is possible to change the name of a function directly
within the window; the name can be of any length and identifies the function. The
system suggests a default name with progressive numbers automatically.
−

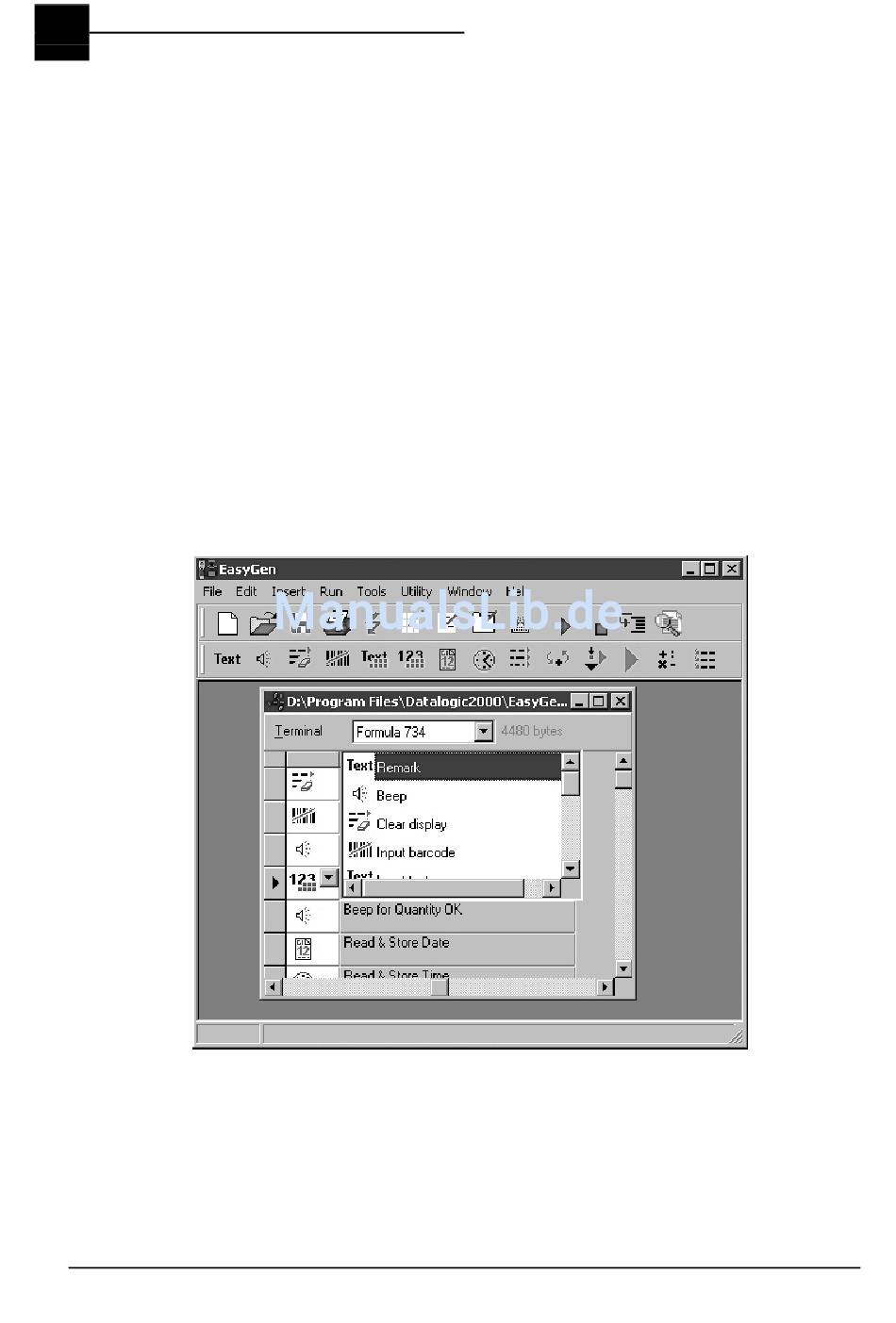

Function type cell, shows the symbol of the function used.
Pointing to the cell causes a little arrow to appear in the right upper corner. By
clicking on it, it's possible to change the function type by selecting from the list
that appears.
The function position can be changed within the ApWin through the Drag and Drop
procedure. If the CTRL key is pressed simultaneously, the dragged function will then
be copied.
18
EASYGEN™
