IMPAC pyrometer IP 140-LO
10.6

Number of devices

With a click on "number of devices" InfraWin changes to the display of 1 or 2 devices. If 2 devices
are selected, always 2 windows are displayed for settings or evaluation.
10.7

Basic settings

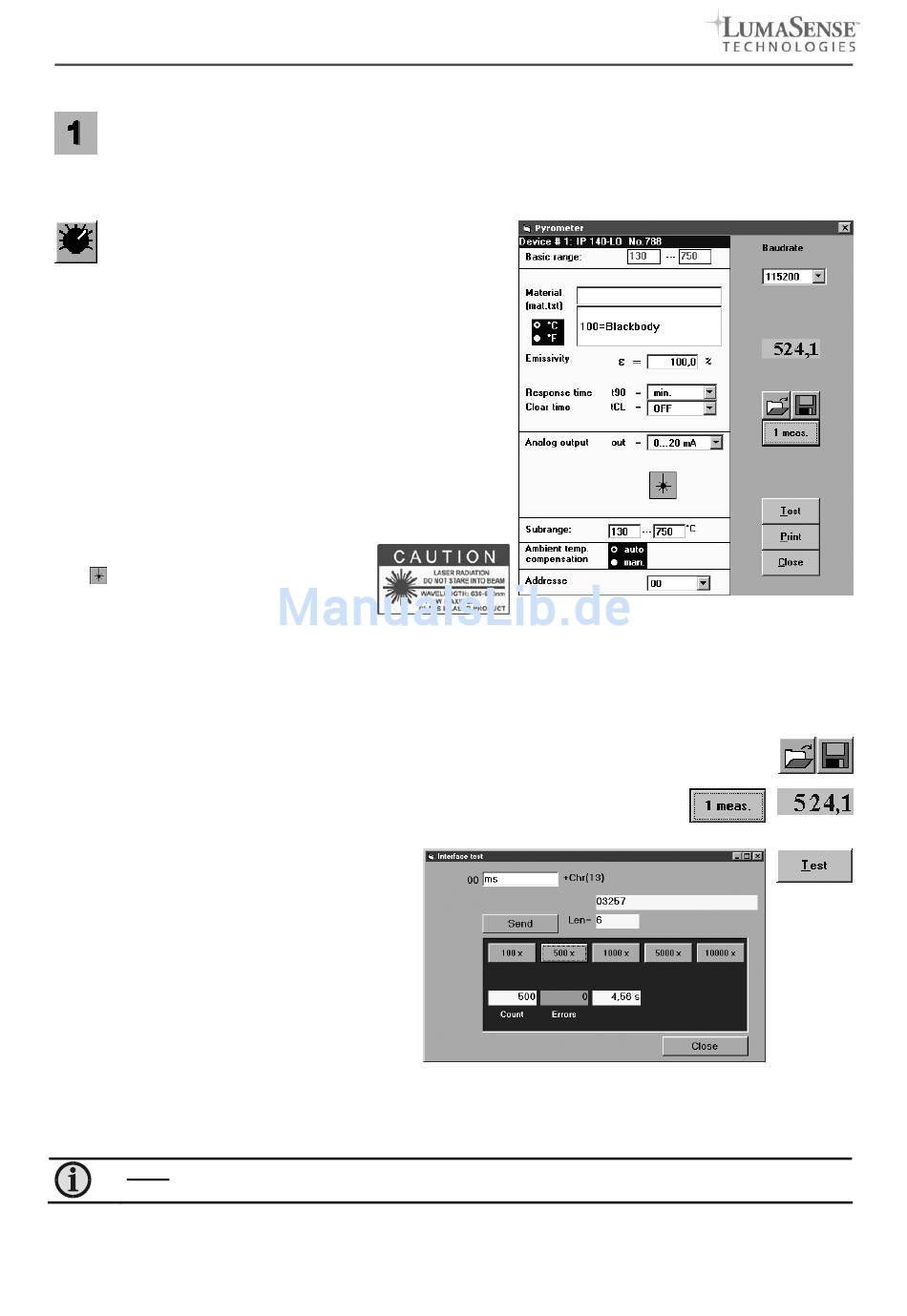

Under pyrometer parameters all preset values can
be displayed and modified if necessary.
The window pyrometer parameter contains all parameter
settings described in 9 Parameter descriptions / settings.
Choose the correct setting for your application, the actual
setting is displayed.
Notes:
•
"Basic range" displays the total range of the pyrometer
automatically and can not be changed. If the sub range is
changed the new values must be confirmed with "OK".
•
Under "Material" you have the possibility to store the
names of different measuring objects with their emissivity
values and to recall them from the list.
•
Choose whether the temperature should be displayed in
°C (Celsius) or °F (Fahrenheit).
•
A click on the laser targeting light icon
( ) turns the laser targeting light on
or off at this point. After approx. two
minutes the laser targeting light is
switched off automatically.
•
After switching over to "man", the ambient temperature compensation will be activated (the IP 140-LO is
always running in "auto" mode). The corresponding data field T(amb) is then activated so that the ambi-
ent temperature value can be entered. In the "auto" mode position, the device assumes that the ambient
temperature of the measured object is equal to that of the pyrometer.
The open / save button enable to store and recall own pyrometer configurations.
„1 meas." shows the current measuring temperature in the pyrometer parameters
window for approx. 1 second.
A click on the "Test" icon opens a window that
allows the direct communication with the py-
rometer via the interface commands (see
section 14, Data format UPP
After entering an interface command (00 is the
adjusted address ex works, "ms" is the com-
mand "reading temperature value") and a click
on "Send" the following window is opened:
This window already shows the answer of the
1
pyrometer in / °. The actual temperature
10
reading is 325.7°C.
"Len" indicates the length of the answered data string, incl. Carriage Return (Chr(13)).
In the lower part of the window the connection with the preset baud rate can be checked. Here the command
was send 500 times with 19200 baud. It has taken 4.56 seconds without transmission errors.
Note: If the pyrometer parameters window displayed, changing of settings on the pyrometer
is blocked.
®
).
