IMPAC pyrometer IP 140-LO
9.12

Error status (Status)

In case of a device error the pyrometer displays a hex code which identifies this error to LumaSense ser-
vice. The standard display at this point is "ok".
10

Settings via interface and software

The operating and analyzing software InfraWin is included in delivery of the pyrometer. With this software all
pyrometer functions also can be used on the PC (except changing the interface or using the test current
function). This section gives an overview about the functions of the software. Additionally there is a software
description in the program's help menu.
The following descriptions refer to the program version 4.0. The latest version is available for free as
download from the homepage www.lumasenseinc.com.
10.1

Connecting the pyrometer to a PC

The program InfraWin can operate up to two devices. For two devices using the RS232 interface, two PC
interfaces must be used. Two devices using RS485 may be operated simultaneously by the same interface,
if two different addresses have been properly entered (see 9.7 Address).
10.2

Installation

For installation select the setup program "setup.exe" from the InfraWin-CD or from the downloaded and
unpacked zip file from the internet and follow the installation instructions.
10.3

Program start

After installation and the first program start a language must be chosen (German, English, French, Italian,
Spanish. The language also can be changed in the program). On the start page the screen shows the follow-
ing icons:

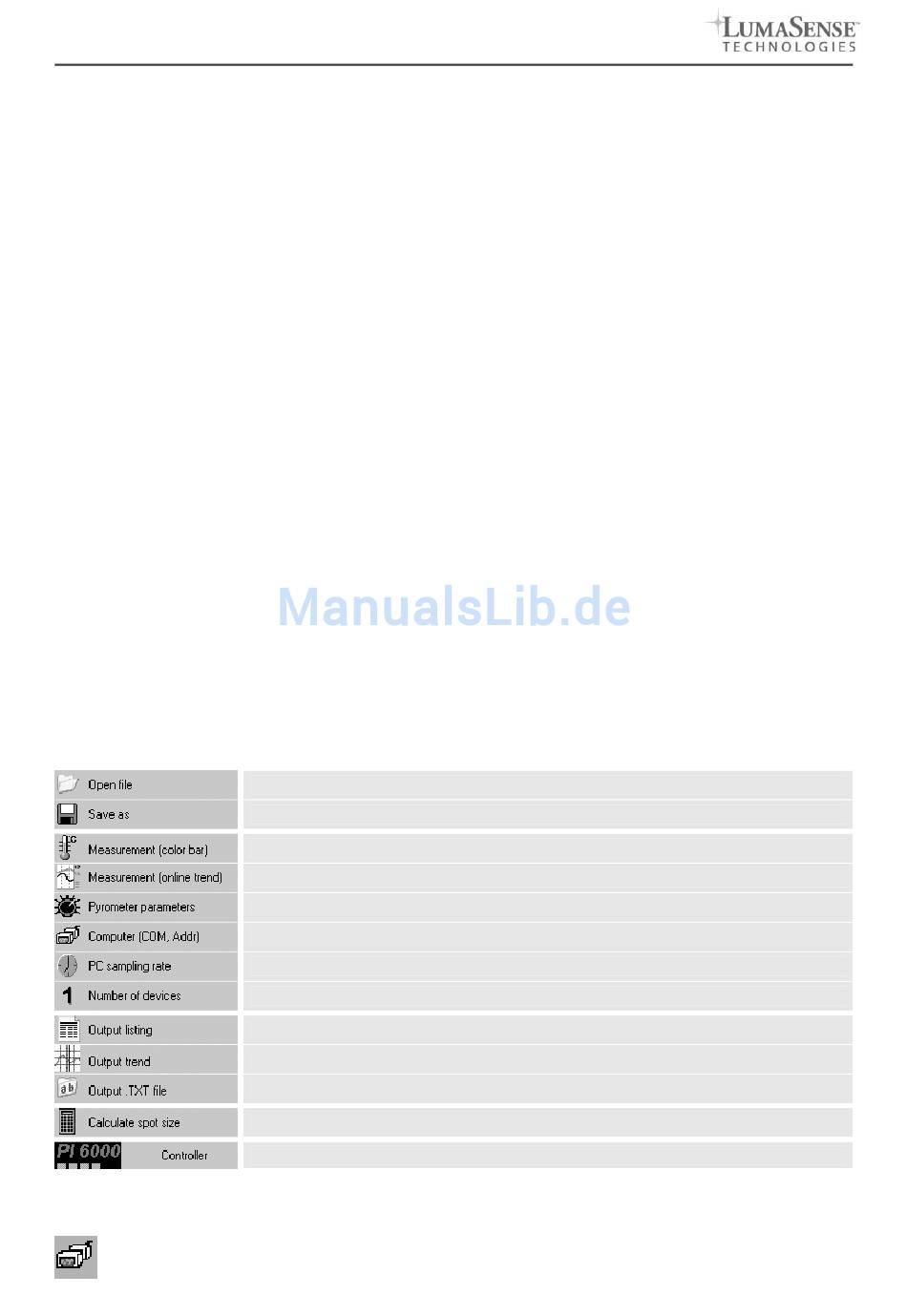

10.4

The start menu

10.5

Beginning

Before using the software, the serial interface connected to the pyrometer has to be selected under
the Computer icon. For two devices using the RS232 interface, two PC interfaces must be used.
18
Opens a saved file
Storage of measured values for further processing
Online measurement with color bar display
Online measurement with graphic display
Setting of the parameters of the instrument
Setting of interface, baud rate and pyrometer addresses (RS485)
Time interval between two measurements
Number of connected instruments (max. 2)
Listing of measured or stored values in tabular form
Processing of measured (stored) readings in graph form
Processing of measured (stored) readings in a text file
Calculation of spot sizes in various measuring distances
Only if available: controls the programmable controller PI 6000
