IMPAC pyrometer IP 140-LO
4.3

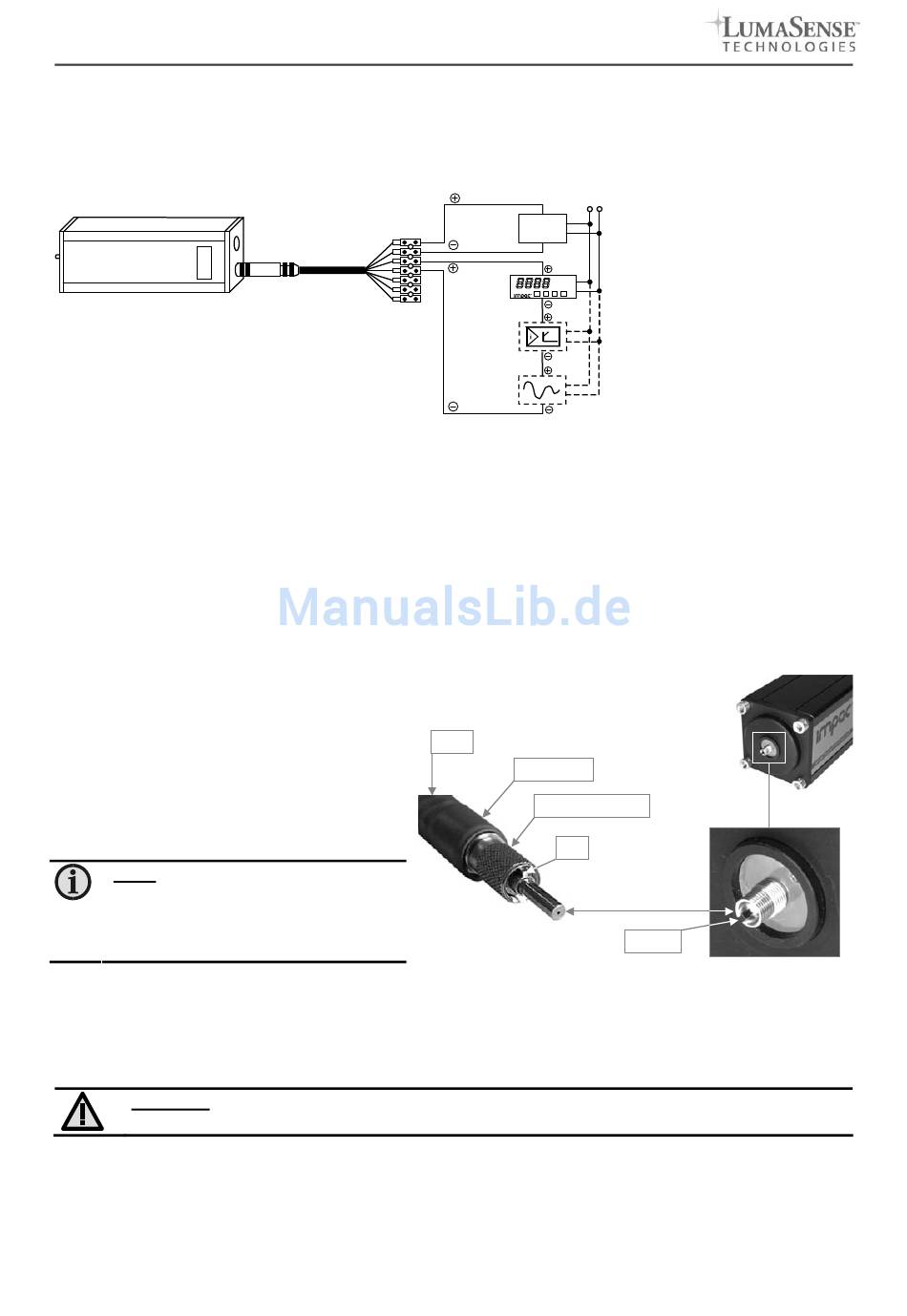

Connection of additional analyzing devices

Additional analyzing instruments, for example a LED digital display instrument only needs to be connected to
a power supply and the analog outputs from the pyrometer. Another Instruments like a controller or printer
can be connected to the display in series as shown above (total load of resistance max. 500 Ohm).
5

Mechanical Installation

5.1

Pyrometer

For mounting the pyrometer is equipped with a mounting rail on the bottom. This rail allows easy fixing of an
adjustable mounting angle or a ball and socket mounting. Another possibility for fixing the pyrometer are 4
screws with thread holes M 5 on the front of the instrument.
5.2

Fiber optic

The fiber has a green mark for correct connec-
tion to the pyrometer. This color mark has to
be mounted on the pyrometer's side.
The fiber optic is equipped with a special con-
nector which allows to fix the fiber only in one
position. Please notice that the connector of
the fiber with the pin is fixed in the correct
position before plug and socket can be bold
together with the screw connection.
Note: The light guide end of the
fibre optic cable as well as the
socket/connector and the optical head
must always be protected with the caps
when not connected!
5.2.1

Ambient temperature

Fiber and optical head can withstand ambient temperatures up to 200°C without cooling on optical head's
side.
Attention:
10
The temperature of fiber and optical head must be at least 30°C lower than the
measuring temperature to get a correct temperature reading.
white
230V ~
24 V DC
brown
green
°C
yellow
Fibre
Green mark
Screw connection
Pin
Power supply
LED digital display
Controller
Writer
Cut-out
