230 V fuse (Combi D6 E)
The fuse and the power supply lines must only be replaced by
an expert!
The unit must be disconnected from the mains (all
poles) before opening the electronic housing lid.
The fuse is in the power electronics (14) beneath the elec-
tronic housing lid.
This fine fuse must always be replaced with a fuse of the
same type: 10 A, slow-acting, interrupting capacity "H".

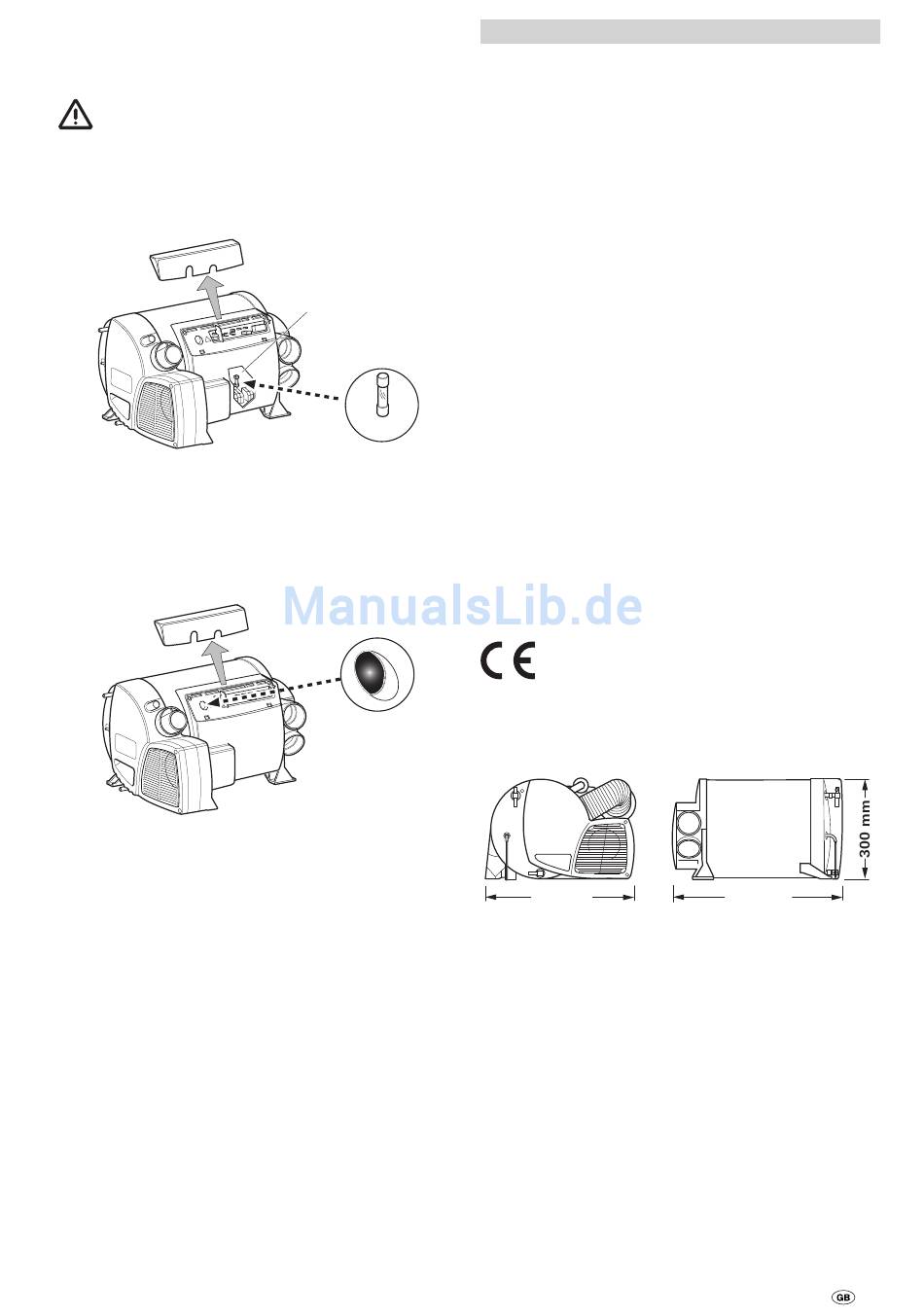

Fig. 5
230 V overheating protection (Combi D6 E)
The 230 V heating facility has a mechanical overheating
switch. If the 12 V power supply is interrupted during opera-
tion or during the after-run period, for example, the tempera-
tures within the unit could activate the overheating protection.
Fig. 6
To reset the overheating protection, allow heater to cool, re-
move connection cover and press red reset button.
Found by Truma Test conditions
Fuel
Diesel as per EN 590
Water contents
10 litres
Heating time from approx. 15 °C to approx. 60 °C
Boiler approx. 20 minutes (measured according to EN 15033)
Heater + boiler approx. 80 min.
Pump pressure
max. 2.8 bar
System pressure
max. 4.5 bar
Rated thermal output (automatic operating level)
Diesel mode
2000 W / 4000 W / 6000 W
14
Electrical mode
900 W / 1800 W
Mixed mode (diesel and electrical)
max. 5800 W
Fuel consumption
220 – 630 ml/h (110 ml/h in normal mode with average heat
output of 1000 W)
Air delivery volume (free-blowing without warm air duct)
T 10 A
With 4 warm air outlets max. 287 m³/h
Power consumption at 12 V
Heater + boiler 1.8 – 4 A (in control mode between "Off" and
"Lowest operating level" less than 1.8 A)
Heat up boiler without heating operation max. 1.8 A
Stand-by approx. 0.001 A
Heating element – FrostControl (optional): maximum 0.4 A
Power consumption at 230 V
3.9 A (900 W) or 7.8 A (1800 W)
Weight (not containing water)
Heater unit:
Heater unit with
peripheral devices:
Right reserved to make technical changes!
Dimensions
Fig. 7

Technical data

15.8 kg 16.9 kg (Combi D6 E)
17.2 kg 18.3 kg (Combi D6 E)
450 mm 525 mm
