Combi D6 (E) CP plus ready
1
4
5
3
17

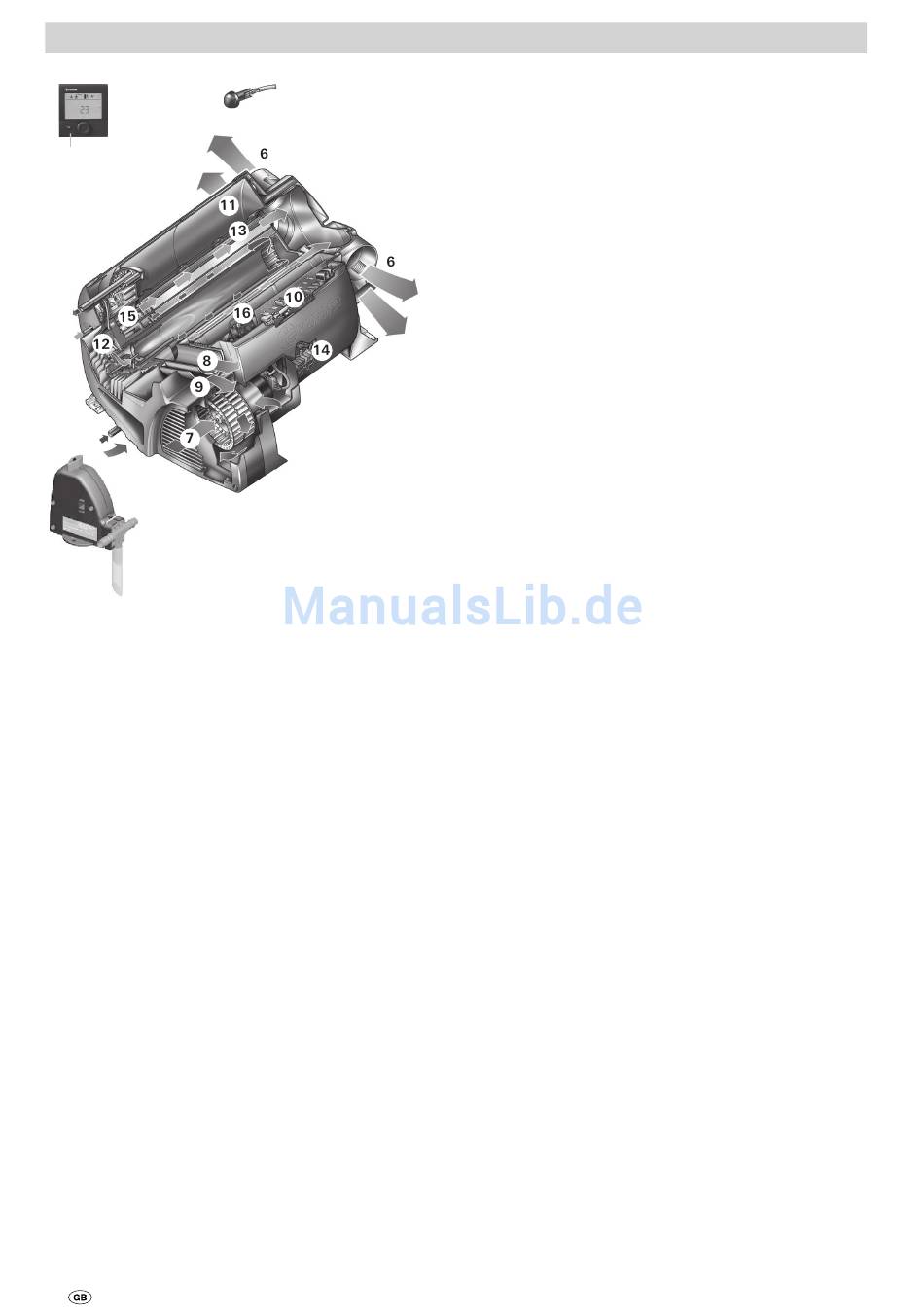

Fig. 1
Table of Contents
Symbols used ...................................................................... 11
Intended use ........................................................................ 11
Function Description (Combi D6) .................................... 11
Function Description (Combi D6 E) ................................ 11
Safety instructions .......................................................... 12
Important operating notes ............................................. 12
Fuel supply ........................................................................ 12
Fuel quality .......................................................................... 12
Fuel at low temperatures .................................................... 12
Operating instructions
Room thermostat ............................................................. 13
FrostControl ...................................................................... 13
Opening the safety/drain valve ........................................... 13
Closing the safety/drain valve ............................................. 13
Automatic opening of the safety/drain valve ...................... 13
Filling the boiler ............................................................... 13
Draining the boiler ........................................................... 14
Initial start-up ................................................................... 14
Filling the fuel lines ............................................................. 14
Start-up .............................................................................. 14
Switching off .................................................................... 14
Maintenance ..................................................................... 14
Fuses .................................................................................. 14
Fuses 12 V ........................................................................... 14
230 V fuse (Combi D6 E) ..................................................... 15
230 V overheating protection (Combi D6 E) ....................... 15
Technical data ................................................................... 15
Faults .................................................................................. 16
Troubleshooting guide (water supply) ................................. 16
Disposal ............................................................................. 16
Accessories ....................................................................... 16
Declaration of conformity .............................................. 17
Truma manufacturer warranty declaration ................. 17
10
2
1 Control panel, digital or analogue (no picture)
2 Room temperature sensor
3 Cold water connection
4 Hot water connection
5 Fuel line connection
6 Warm air outlets
7 Circulated air intake
8 Exhaust gas discharge
9 Combustion air infeed
10 Electronic control unit
11 Water container (10 litres)
12 Burner
13 Heat exchanger
14 Power electronics
15 Heating elements 230 V
16 Overheating switch 230 V
17 FrostControl (Safety/drain valve)
