Installation
Monitor 1
CON
Mouse Speaker
Keyb. Line In

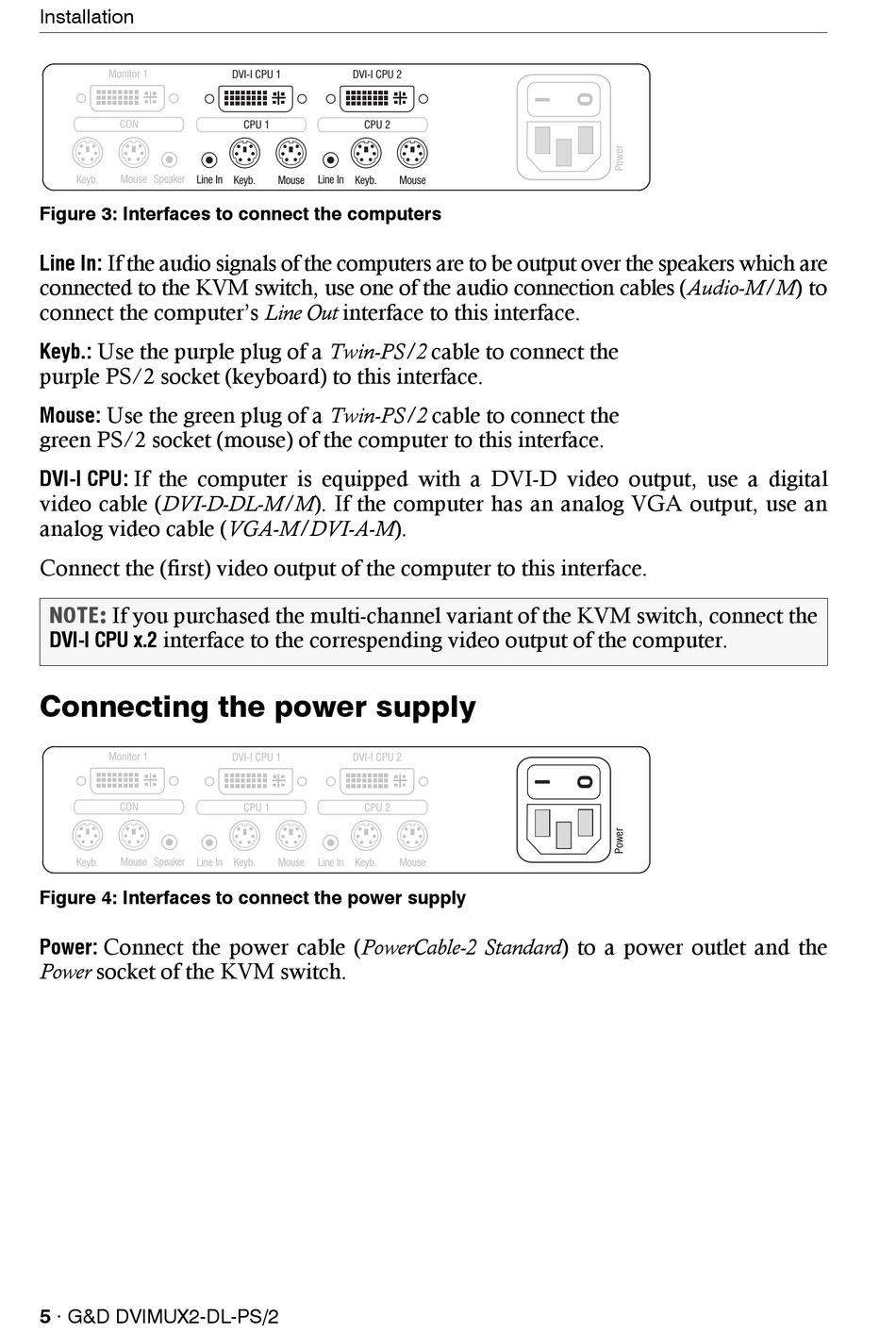

Figure 3: Interfaces to connect the computers
Line In: If the audio signals of the computers are to be output over the speakers which are
connected to the KVM switch, use one of the audio connection cables (Audio-M/M) to
connect the computer's Line Out interface to this interface.
Keyb.: Use the purple plug of a Twin-PS/2 cable to connect the
purple PS/2 socket (keyboard) to this interface.
Use the green plug of a Twin-PS/2 cable to connect the
Mouse:
green PS/2 socket (mouse) of the computer to this interface.
DVI-I CPU: If the computer is equipped with a DVI-D video output, use a digital
video cable (DVI-D-DL-M/M). If the computer has an analog VGA output, use an
analog video cable (VGA-M/DVI-A-M).
Connect the (first) video output of the computer to this interface.
NOTE:
If you purchased the multi-channel variant of the KVM switch, connect the
interface to the correspending video output of the computer.
DVI-I CPU x.2

Connecting the power supply

Monitor 1
CON
Keyb. Mouse Speaker Line In
Figure 4: Interfaces to connect the power supply
Power: Connect the power cable (PowerCable-2 Standard) to a power outlet and the
Power socket of the KVM switch.
5 · G&D DVIMUX2-DL-PS/2
DVI-I CPU 1 DVI-I CPU 2
CPU 1 CPU 2
Keyb. Mouse Line In Keyb. Mouse
DVI-I CPU 1 DVI-I CPU 2
CPU 1 CPU 2
Keyb. Mouse Line In Keyb. Mouse
