Configuration

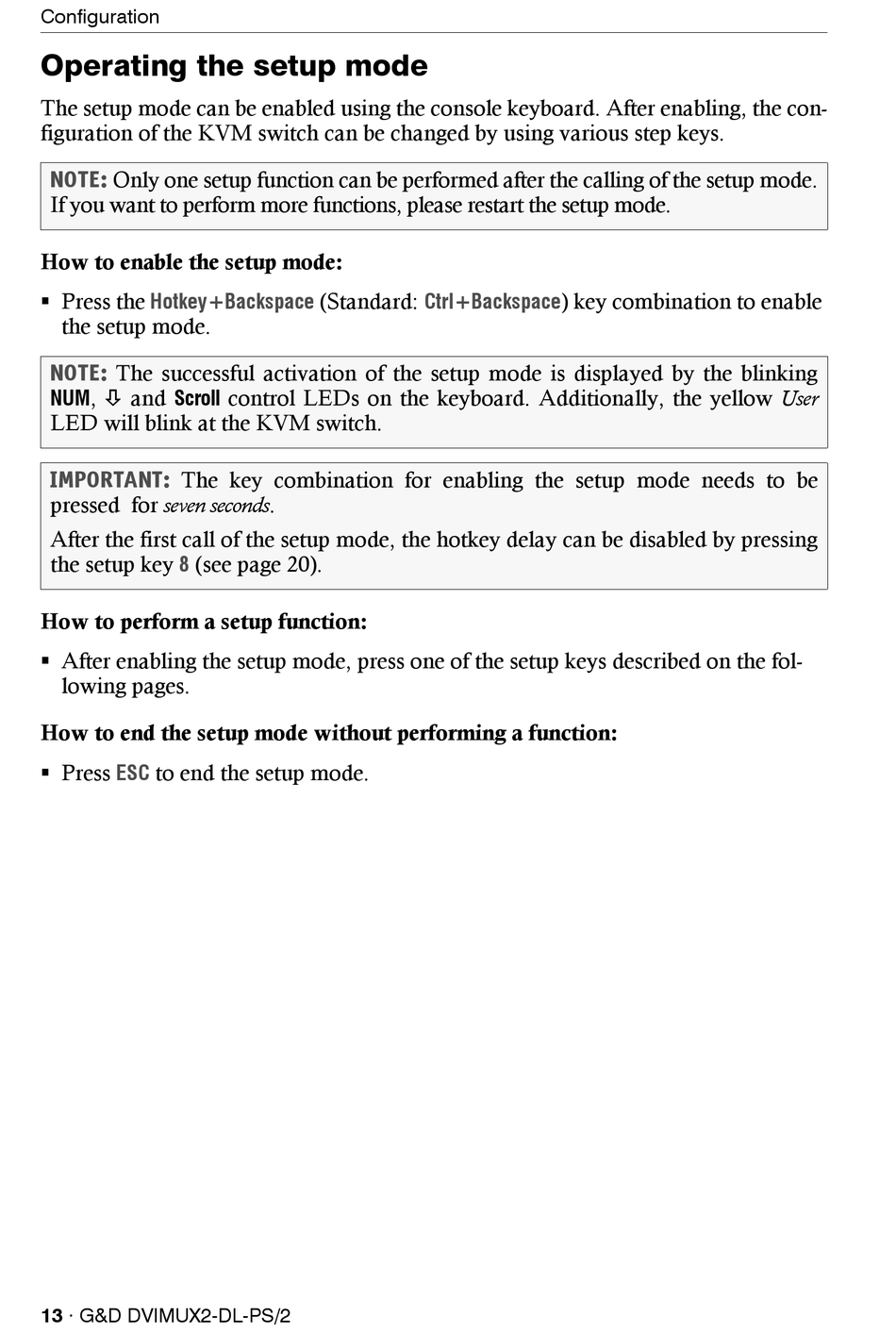

Operating the setup mode

The setup mode can be enabled using the console keyboard. After enabling, the con-
figuration of the KVM switch can be changed by using various step keys.
NOTE:
Only one setup function can be performed after the calling of the setup mode.
If you want to perform more functions, please restart the setup mode.
How to enable the setup mode:
 Press the Hotkey+Backspace
the setup mode.
NOTE: The successful activation of the setup mode is displayed by the blinking
NUM ,  and Scroll
LED will blink at the KVM switch.
IMPORTANT: The key combination for enabling the setup mode needs to be
pressed for seven seconds.
After the first call of the setup mode, the hotkey delay can be disabled by pressing
the setup key 8 (see page 20).
How to perform a setup function:
 After enabling the setup mode, press one of the setup keys described on the fol-
lowing pages.
How to end the setup mode without performing a function:
 Press to end the setup mode.
ESC
13 · G&D DVIMUX2-DL-PS/2
(Standard:
control LEDs on the keyboard. Additionally, the yellow User
Ctrl+Backspace ) key combination to enable
