Installation

Connecting up to two local networks

If desired, connect the network interfaces to up to two local networks to access the
Config Panel web application from the networks and to send SNMP traps or syslog
messages to these networks.
Network B Mouse
Network A Keyb. USB K/M

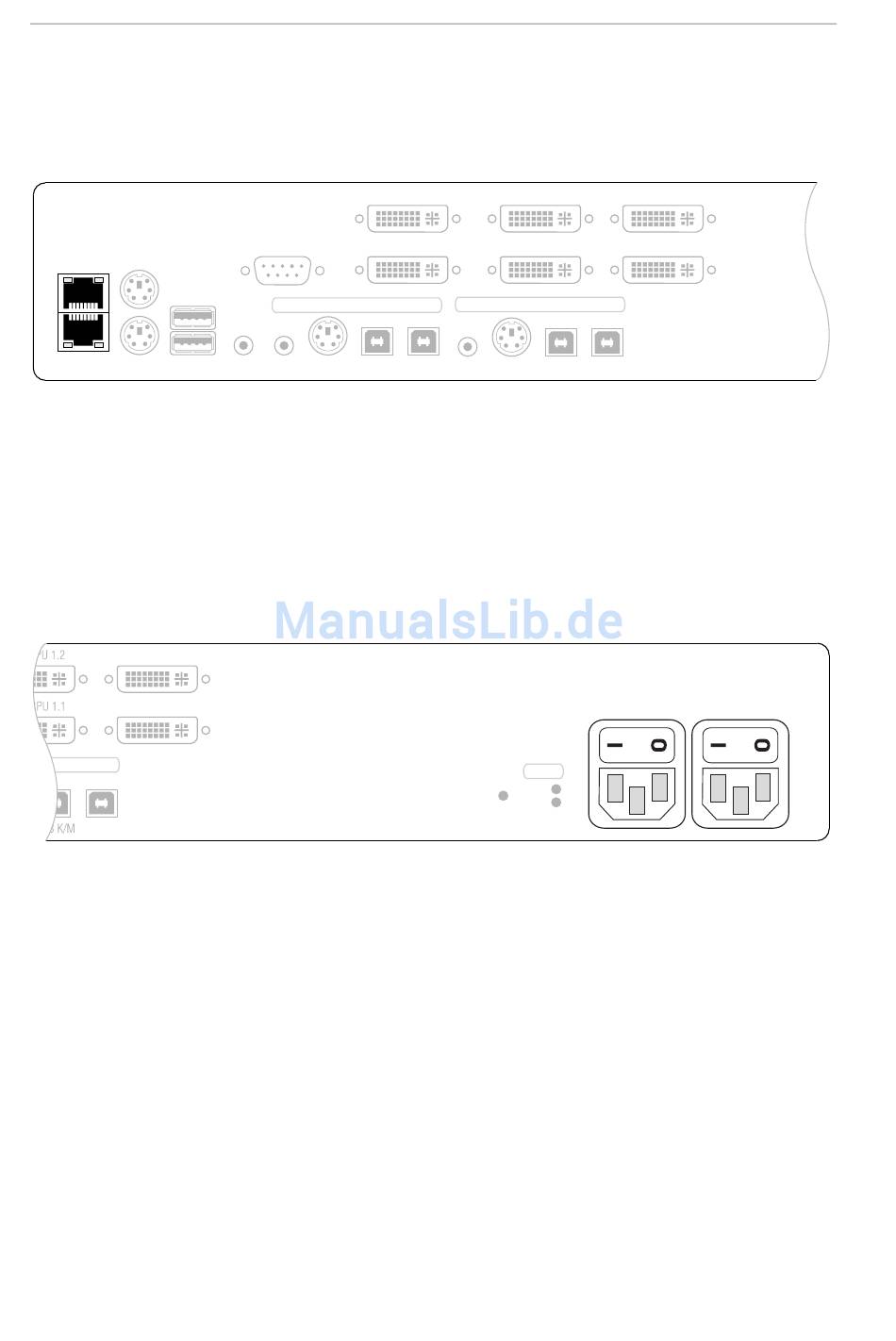

Figure 4: Interfaces to connect local networks
Connect a category 5e (or better) twisted pair cable which is available as
Network A:
accessory to this interface. Connect the other end of the cable to a local network.
Network B: Connect a category 5e (or better) twisted pair cable which is available as
accessory to this interface. Connect the other end of the cable to a local network.

Connecting the power supply

DVI-I CPU 2.2
DVI-I CPU 2.1
USB 2.0
Figure 5: Interfaces to connect the power supply
Main Power: Connect an IEC cable to a power outlet and this socket.
If desired, connect another IEC cable to a power outlet and this socket.
Red. Power:
This provides the device with a second, redundant power supply.
6 · G&D DL-MUX2-MC2
Monitor 2
RS232 Monitor 1
CPU In 1
Speaker Line In PS/2 K/M USB K/M USB 2.0
DVI-I CPU 1.2
DVI-I CPU 1.1
CPU In 2
Line In PS/2 K/M USB K/M USB 2.0
Main Power
Ident. Power
Red.
Main
DVI-I CPU 2.2
DVI-I CPU 2.1
Red. Power
