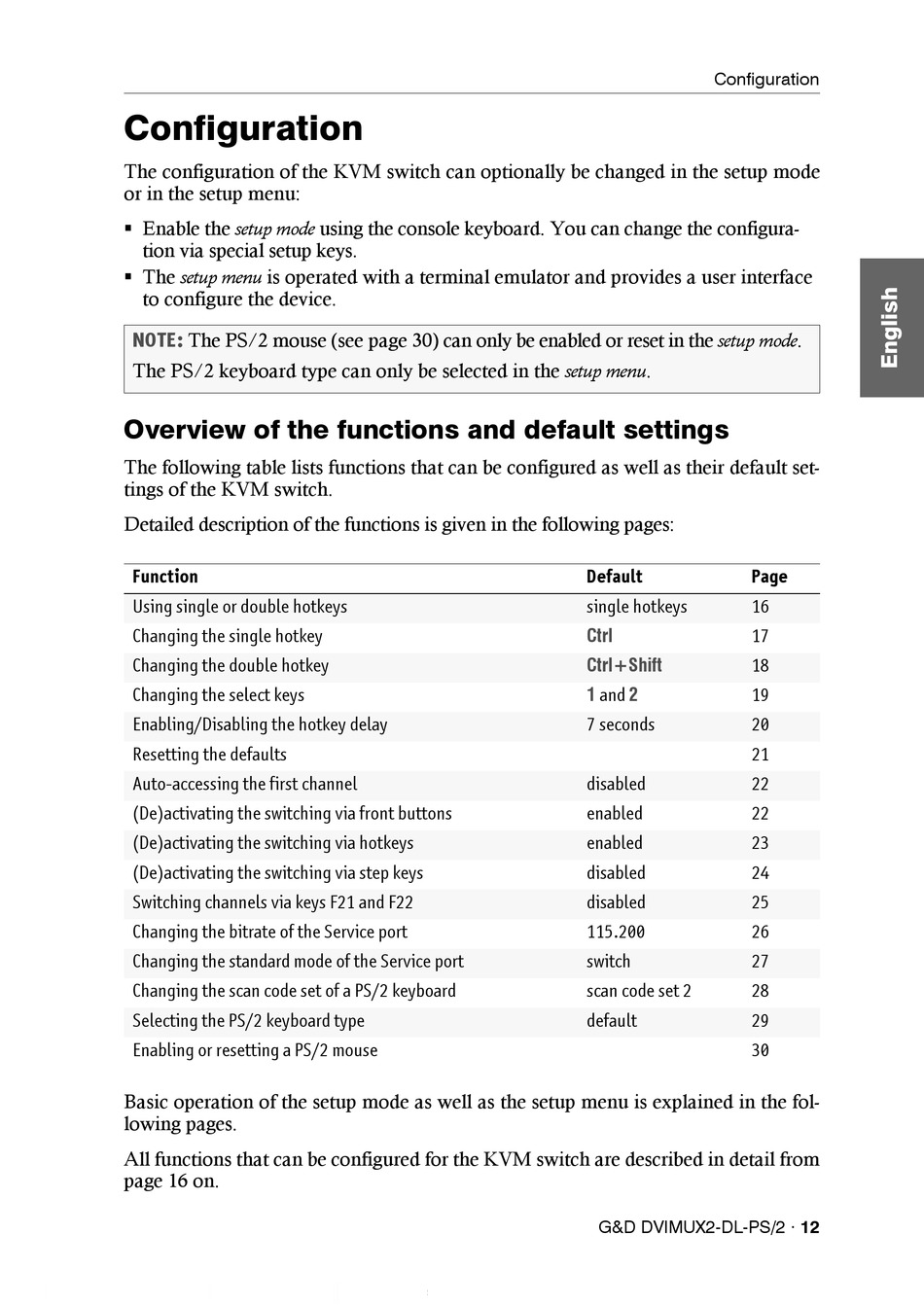

Configuration

The configuration of the KVM switch can optionally be changed in the setup mode
or in the setup menu:
 Enable the setup mode using the console keyboard. You can change the configura-
tion via special setup keys.
 The setup menu is operated with a terminal emulator and provides a user interface
to configure the device.
NOTE: The PS/2 mouse (see page 30) can only be enabled or reset in the setup mode.
The PS/2 keyboard type can only be selected in the setup menu.

Overview of the functions and default settings

The following table lists functions that can be configured as well as their default set-
tings of the KVM switch.
Detailed description of the functions is given in the following pages:
Function
Using single or double hotkeys
Changing the single hotkey
Changing the double hotkey
Changing the select keys
Enabling/Disabling the hotkey delay
Resetting the defaults
Auto-accessing the first channel
(De)activating the switching via front buttons
(De)activating the switching via hotkeys
(De)activating the switching via step keys
Switching channels via keys F21 and F22
Changing the bitrate of the Service port
Changing the standard mode of the Service port
Changing the scan code set of a PS/2 keyboard
Selecting the PS/2 keyboard type
Enabling or resetting a PS/2 mouse
Basic operation of the setup mode as well as the setup menu is explained in the fol-
lowing pages.
All functions that can be configured for the KVM switch are described in detail from
page 16 on.
Configuration
Default Page
single hotkeys 16
Ctrl 17
Ctrl+Shift
18
1 and 2 19
7 seconds 20
21
disabled 22
enabled 22
enabled 23
disabled 24
disabled 25
115.200 26
switch 27
scan code set 2 28
default 29
30
