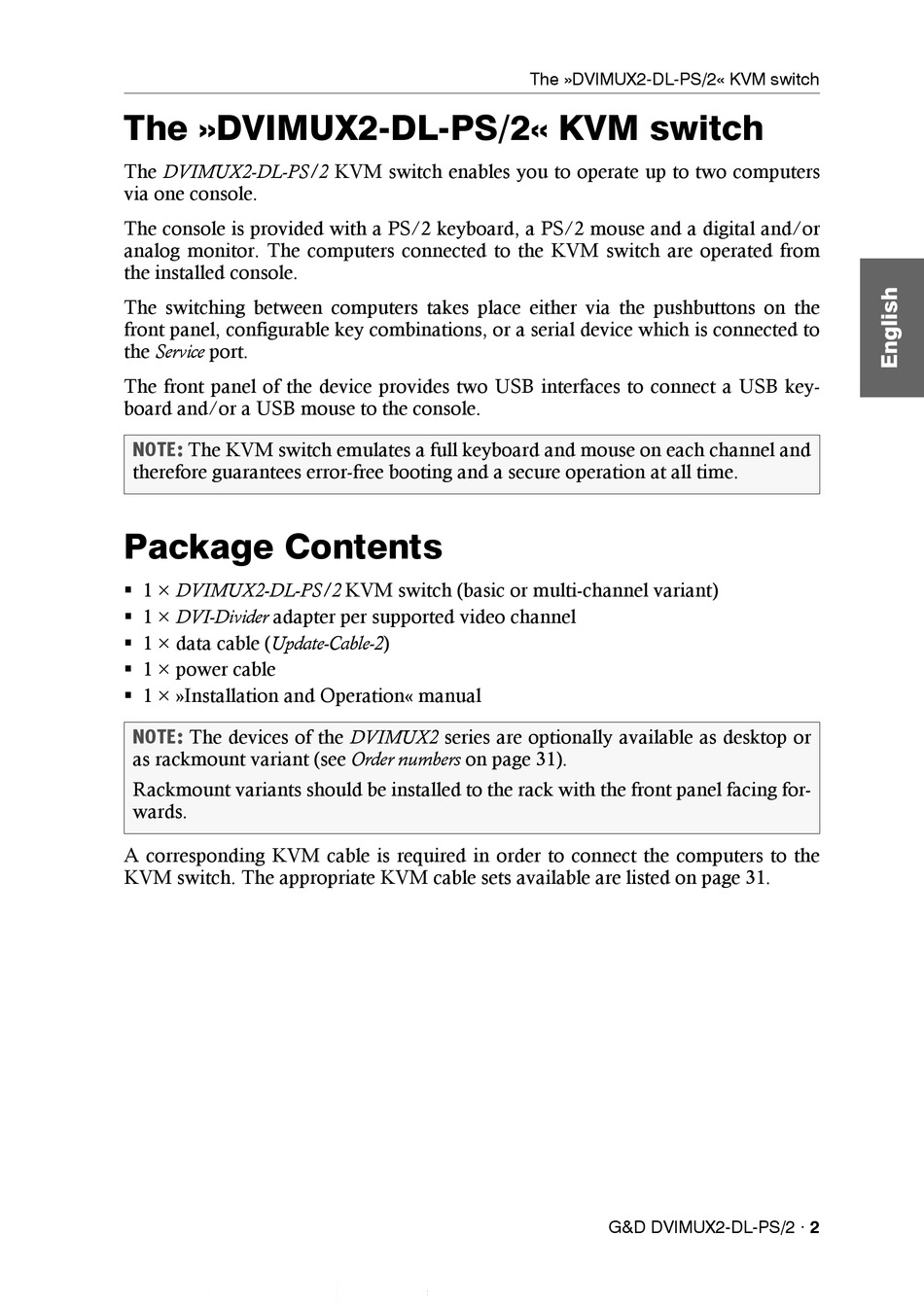

The »DVIMUX2-DL-PS/2« KVM switch
The DVIMUX2-DL-PS/2 KVM switch enables you to operate up to two computers
via one console.
The console is provided with a PS/2 keyboard, a PS/2 mouse and a digital and/or
analog monitor. The computers connected to the KVM switch are operated from
the installed console.
The switching between computers takes place either via the pushbuttons on the
front panel, configurable key combinations, or a serial device which is connected to
the Service port.
The front panel of the device provides two USB interfaces to connect a USB key-
board and/or a USB mouse to the console.
NOTE: The KVM switch emulates a full keyboard and mouse on each channel and
therefore guarantees error-free booting and a secure operation at all time.

Package Contents

 1 × DVIMUX2-DL-PS/2 KVM switch (basic or multi-channel variant)
 1 × DVI-Divider adapter per supported video channel
 1 × data cable (Update-Cable-2)
 1 × power cable
 1 × »Installation and Operation« manual
NOTE: The devices of the DVIMUX2 series are optionally available as desktop or
as rackmount variant (see Order numbers on page 31).
Rackmount variants should be installed to the rack with the front panel facing for-
wards.
A corresponding KVM cable is required in order to connect the computers to the
KVM switch. The appropriate KVM cable sets available are listed on page 31.
The »DVIMUX2-DL-PS/2« KVM switch
G&D DVIMUX2-DL-PS/2 · 2
