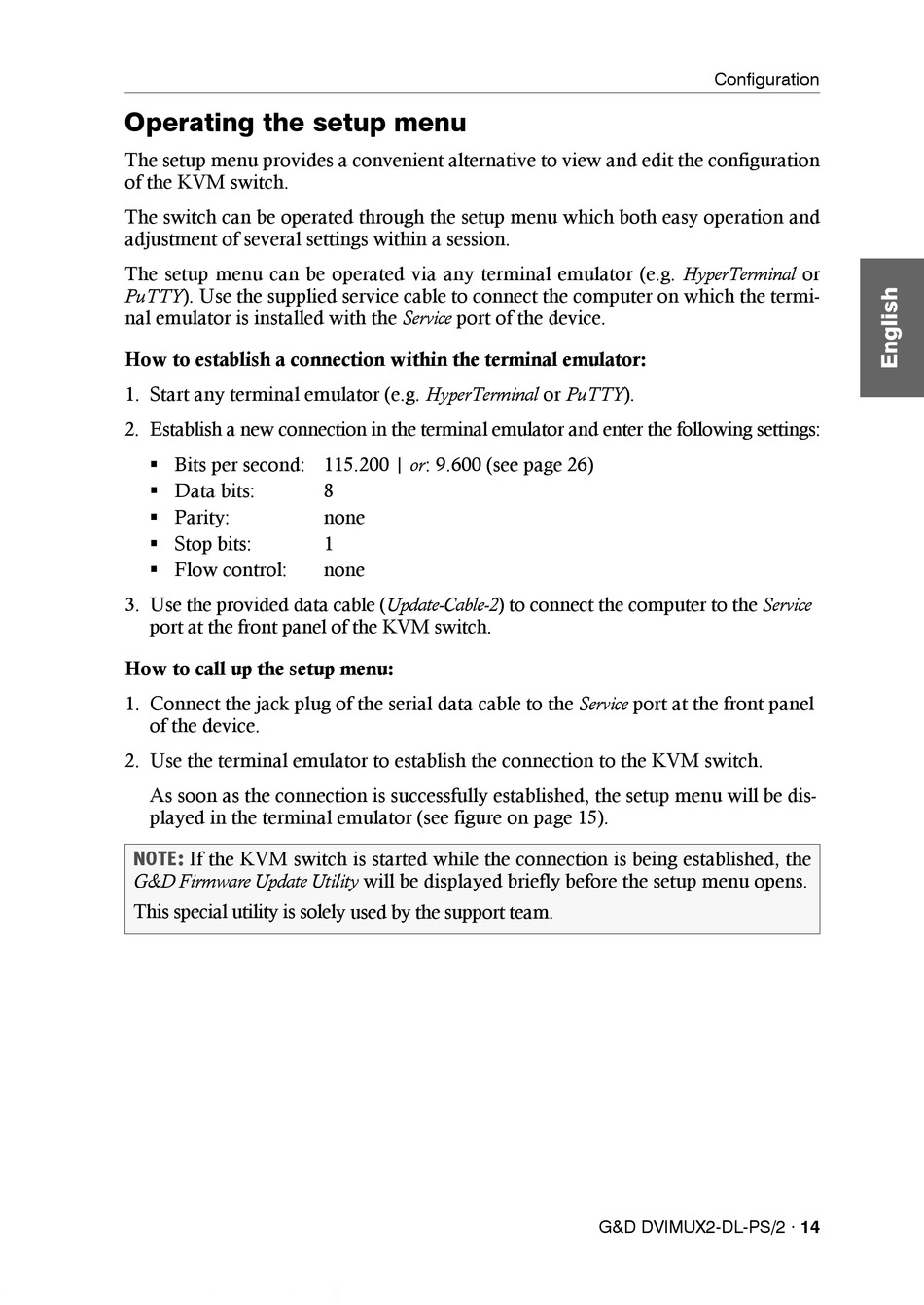

Operating the setup menu

The setup menu provides a convenient alternative to view and edit the configuration
of the KVM switch.
The switch can be operated through the setup menu which both easy operation and
adjustment of several settings within a session.
The setup menu can be operated via any terminal emulator (e.g. HyperTerminal or
PuTTY). Use the supplied service cable to connect the computer on which the termi-
nal emulator is installed with the Service port of the device.
How to establish a connection within the terminal emulator:
1. Start any terminal emulator (e.g. HyperTerminal or PuTTY).
2. Establish a new connection in the terminal emulator and enter the following settings:
 Bits per second: 115.200 | or : 9.600 (see page 26)
 Data bits:
 Parity:
 Stop bits:
 Flow control:
3. Use the provided data cable (Update-Cable-2) to connect the computer to the Service
port at the front panel of the KVM switch.
How to call up the setup menu:
1. Connect the jack plug of the serial data cable to the Service port at the front panel
of the device.
2. Use the terminal emulator to establish the connection to the KVM switch.
As soon as the connection is successfully established, the setup menu will be dis-
played in the terminal emulator (see figure on page 15).
NOTE: If the KVM switch is started while the connection is being established, the
G&D Firmware Update Utility will be displayed briefly before the setup menu opens.
This special utility is solely used by the support team.
8
none
1
none
Configuration
G&D DVIMUX2-DL-PS/2 · 14
