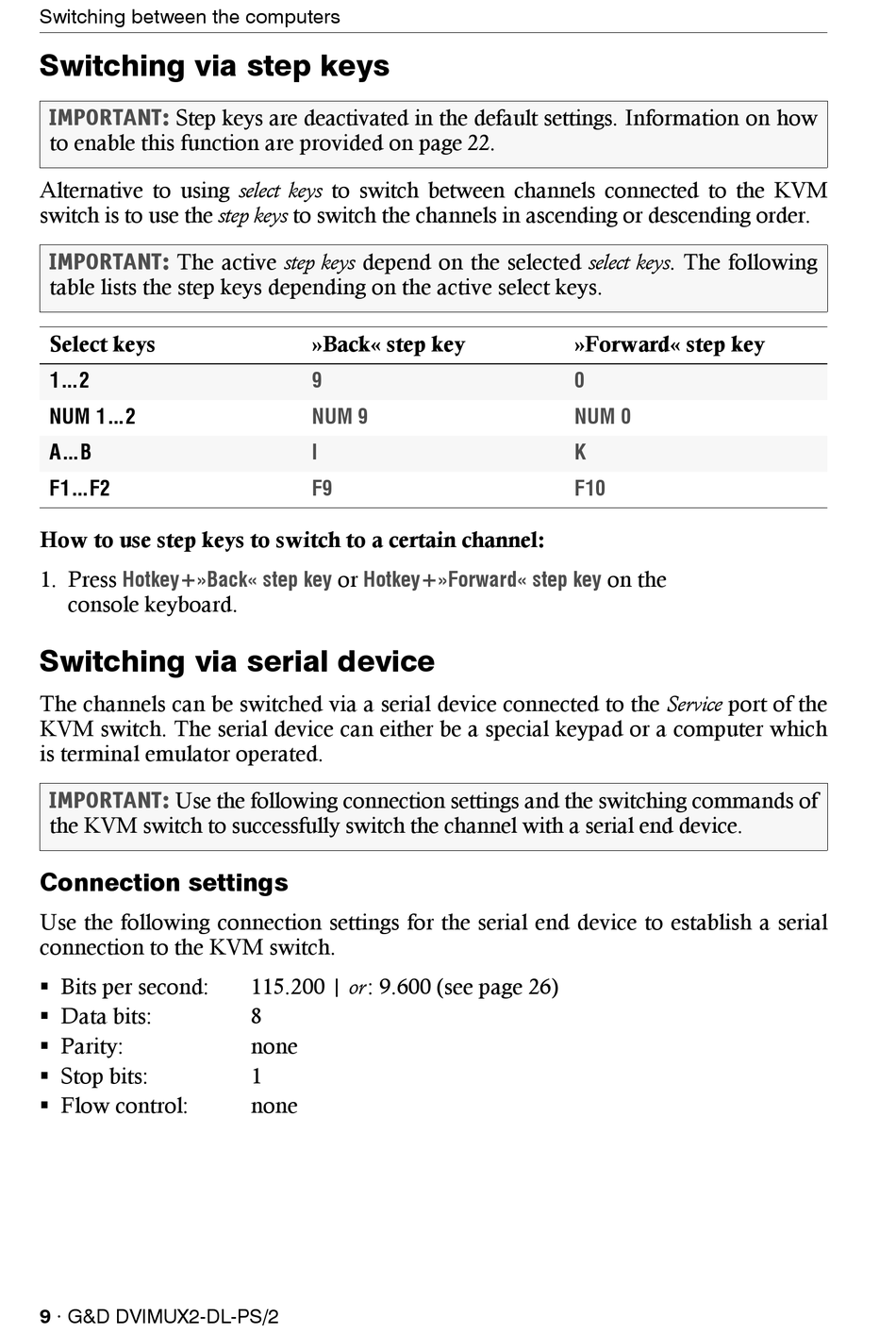

Switching between the computers

Switching via step keys

IMPORTANT: Step keys are deactivated in the default settings. Information on how
to enable this function are provided on page 22.
Alternative to using select keys to switch between channels connected to the KVM
switch is to use the step keys to switch the channels in ascending or descending order.
IMPORTANT:
The active step keys depend on the selected select keys. The following
table lists the step keys depending on the active select keys.
Select keys
1 ... 2
NUM 1 ... 2
A ... B
F1 ... F2
How to use step keys to switch to a certain channel:
1. Press Hotkey+»Back« step key
console keyboard.

Switching via serial device

The channels can be switched via a serial device connected to the Service port of the
KVM switch. The serial device can either be a special keypad or a computer which
is terminal emulator operated.
IMPORTANT: Use the following connection settings and the switching commands of
the KVM switch to successfully switch the channel with a serial end device.

Connection settings

Use the following connection settings for the serial end device to establish a serial
connection to the KVM switch.
 Bits per second:
 Data bits:
 Parity:
 Stop bits:
 Flow control:
9 · G&D DVIMUX2-DL-PS/2
»Back« step key
9
NUM 9
I
F9
or Hotkey+»Forward« step key
115.200 | or : 9.600 (see page 26)
8
none
1
none
»Forward« step key
0
NUM 0
K
F10
on the
