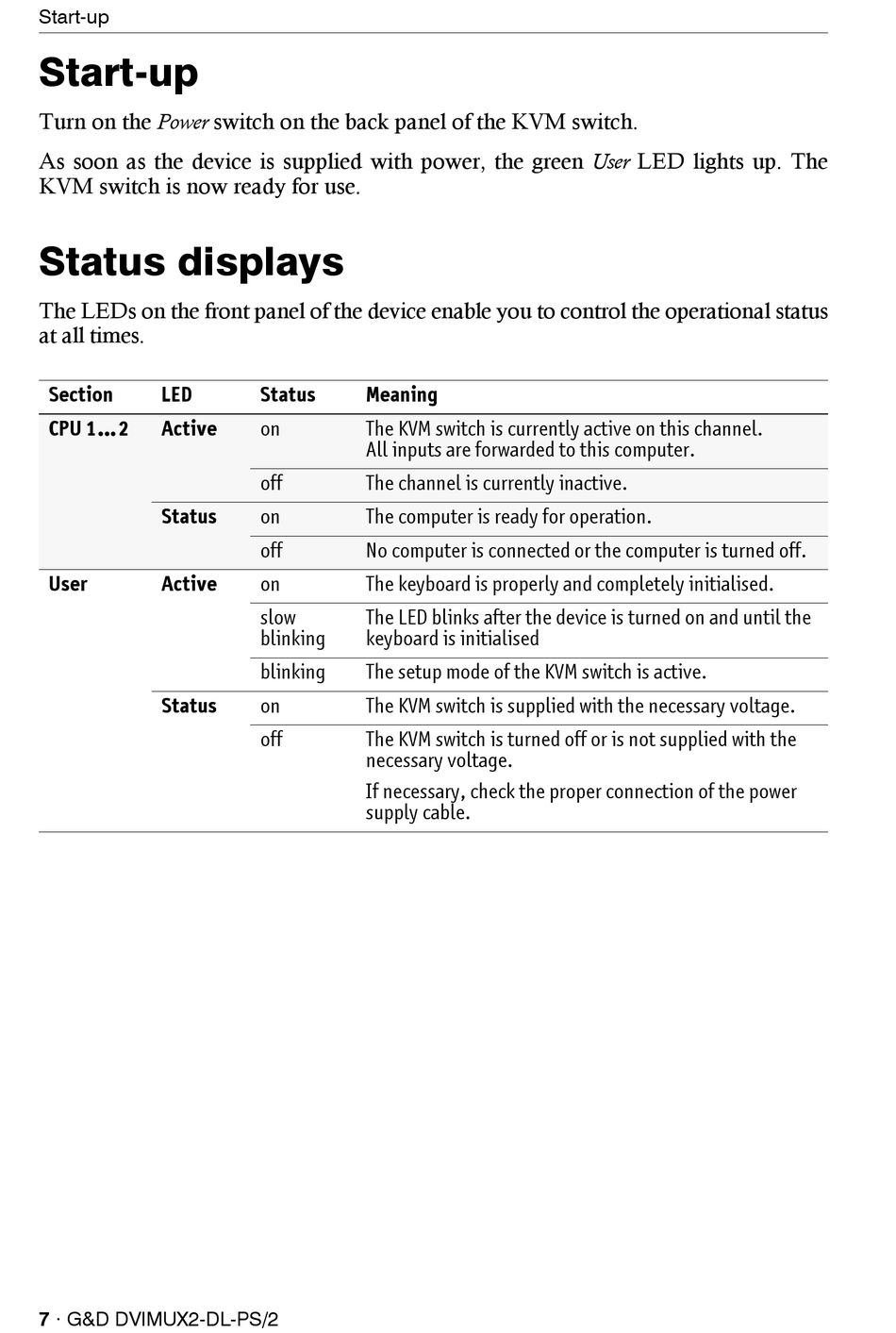

Start-up

Start-up
Turn on the Power switch on the back panel of the KVM switch.
As soon as the device is supplied with power, the green User LED lights up. The
KVM switch is now ready for use.

Status displays

The LEDs on the front panel of the device enable you to control the operational status
at all times.
Section LED
CPU 1 ... 2 Active
Status
User Active
Status
7 · G&D DVIMUX2-DL-PS/2
Status Meaning
on The KVM switch is currently active on this channel.
All inputs are forwarded to this computer.
off The channel is currently inactive.
on The computer is ready for operation.
off No computer is connected or the computer is turned off.
on The keyboard is properly and completely initialised.
slow The LED blinks after the device is turned on and until the
blinking keyboard is initialised
blinking The setup mode of the KVM switch is active.
on The KVM switch is supplied with the necessary voltage.
off The KVM switch is turned off or is not supplied with the
necessary voltage.
If necessary, check the proper connection of the power
supply cable.
