ELSYSTEM

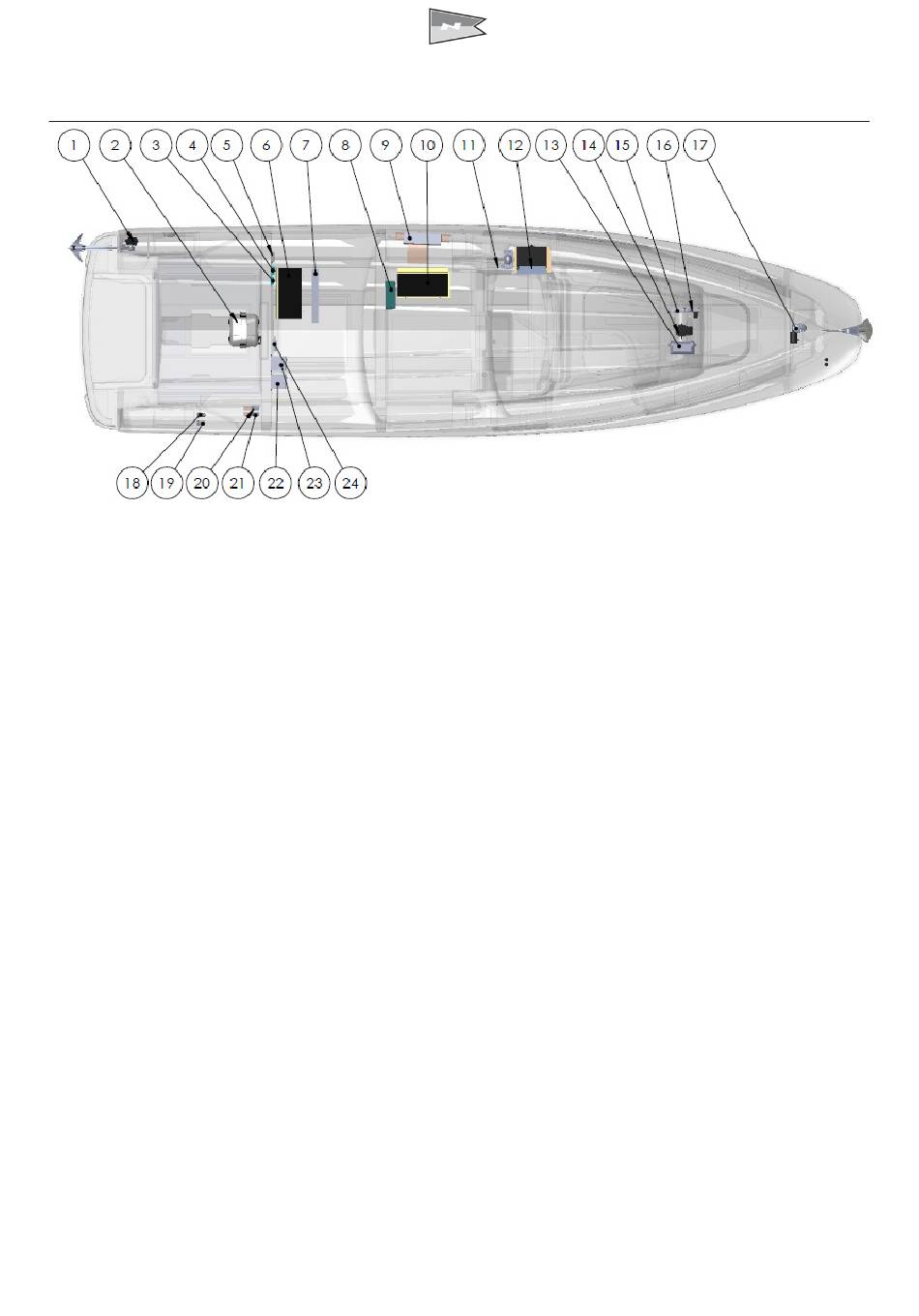

1 Ankarspel, akter / Anchor winch, aft / Ankerwinde, Heck
2 Genset
3,4 Chargemate pro
5 Engine battery charger combi (option)
6 Startbatterier och tung förbrukarbatteri/ Start batteries and one H-AUX battery / Starbatterien und eine H-AUX batterie
7 12 V-säkringar / 12 V circuit breakers / 12 V-Sicherungen
8 Charger or combi (option)
9 230V and 12V fuse panel
10 Förbrukningsbatterier / Batteries for power consumption / Verbrauchsbatterien
11 Remote main switch panel and 12V fuse panel
12 Kylskåp/ Fridge/ Kühlschrank
13 Battery heavy aux bow
14 Bogpropeller / Bow thruster / Bugpropeller
15 Charger heavy aux bow
16 Fuses heavy aux bow
17 Ankarspel, för / Anchor winch, bow / Ankerwinde, buge
18 Landströmsintag / Shore power inlet / Landstromanschluss
19 Landströmsintag AC / Shore power socket AC/ Landstromanschluss AC (Option)
20 RCD 230V/110V
21 RCD AC (Option)
22 Shore power isolator 110V (only U.S)
23 Shore power isolator AC (U.S)
24 Charger heavy aux stern
ELECTRICAL SYSTEM
NIMBUS GROUP AB
ELEKTRISCHES SYSTEM
