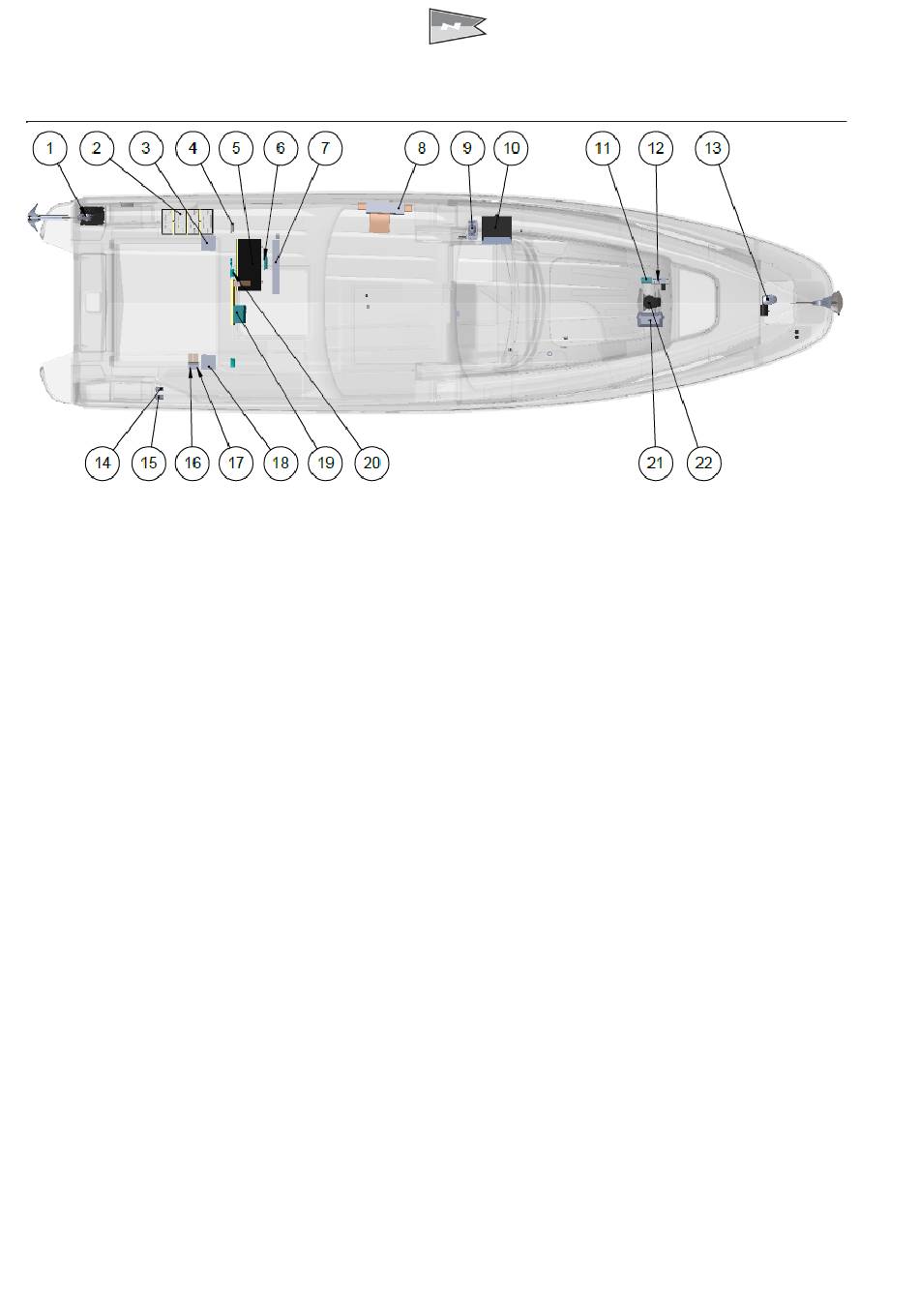

ELSYSTEM
1 Ankarspel, akter / Anchor winch, aft / Ankerwinde, Heck
2 Förbrukningsbatterier / Batteries for power consumption / Verbrauchsbatterien
3 Shore power isolator AC (U.S)
4 Engine battery charger combi (option)
5 Startbatterier och förbrukningsbatteri ankarspel akter / Start batteries and consumption battery for windlass aft / Star
batterien und Verbrauchsbatterien Ankerwinde, Heck
6 Charger heavy aux stern
7 Main switch panel
8 230V and 12V fuse panel
9 Remote main switch panel and 12V fuse panel
10 Kylskåp/ Fridge/ Kühlschrank
11 Charger heavy aux bow
12 Fuses heavy aux bow
13 Ankarspel, för / Anchor winch, bow / Ankerwinde, buge
14 Landströmsintag / Shore power inlet / Landstromanschluss
15 Landströmsintag AC / Shore power socket AC/ Landstromanschluss AC (Option)
16 RCD 230V/110V
17 RCD AC (Option)
18 Shore power isolator 110V (only U.S)
19 Charger or combi (option)
20 Chargemate pro
21 Battery heavy aux bow
22 Bogpropeller / Bow thruster / Bugpropeller
