NET-COM

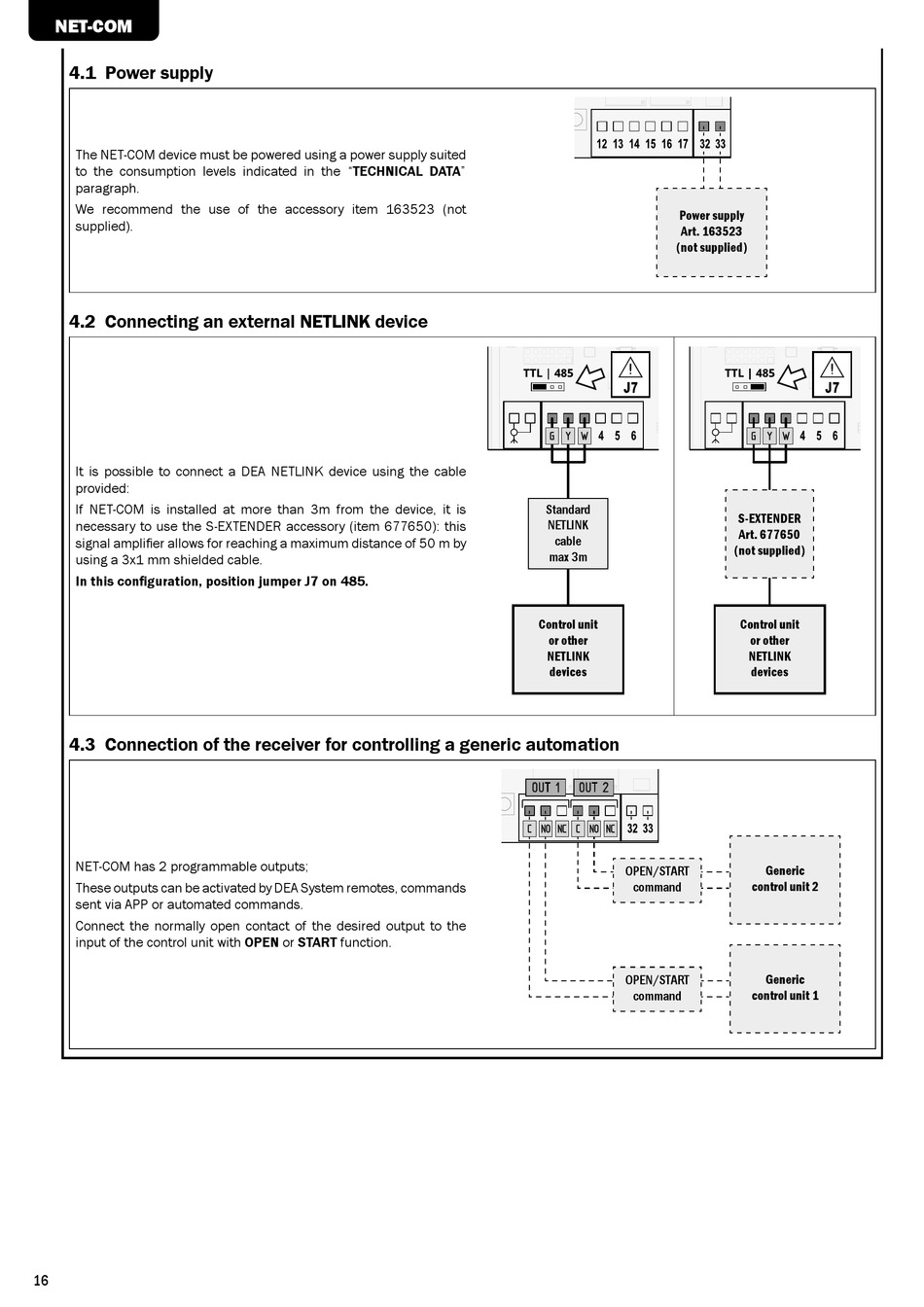

4.1 Power supply

The NET-COM device must be powered using a power supply suited
to the consumption levels indicated in the "TECHNICAL DATA"
paragraph.
We recommend the use of the accessory item 163523 (not
supplied).

4.2 Connecting an external NETLINK device

It is possible to connect a DEA NETLINK device using the cable
provided:
If NET-COM is installed at more than 3m from the device, it is
necessary to use the S-EXTENDER accessory (item 677650): this
signal amplifier allows for reaching a maximum distance of 50 m by
using a 3x1 mm shielded cable.
In this configuration, position jumper J7 on 485.
4.3 Connection of the receiver for controlling a generic automation
NET-COM has 2 programmable outputs;
These outputs can be activated by DEA System remotes, commands
sent via APP or automated commands.
Connect the normally open contact of the desired output to the
input of the control unit with OPEN or START function.
16
Power supply
Art. 163523
(not supplied)
G Y W
Standard
NETLINK
cable
max 3m
Control unit
or other
NETLINK
devices
OUT 1 OUT 2
C NO NC C NO NC
OPEN/START
command
OPEN/START
command
G Y W
S-EXTENDER
Art. 677650
(not supplied)
Control unit
or other
NETLINK
devices
Generic
control unit 2
Generic
control unit 1
