EVCO S.p.A.
3.5
User interface installation

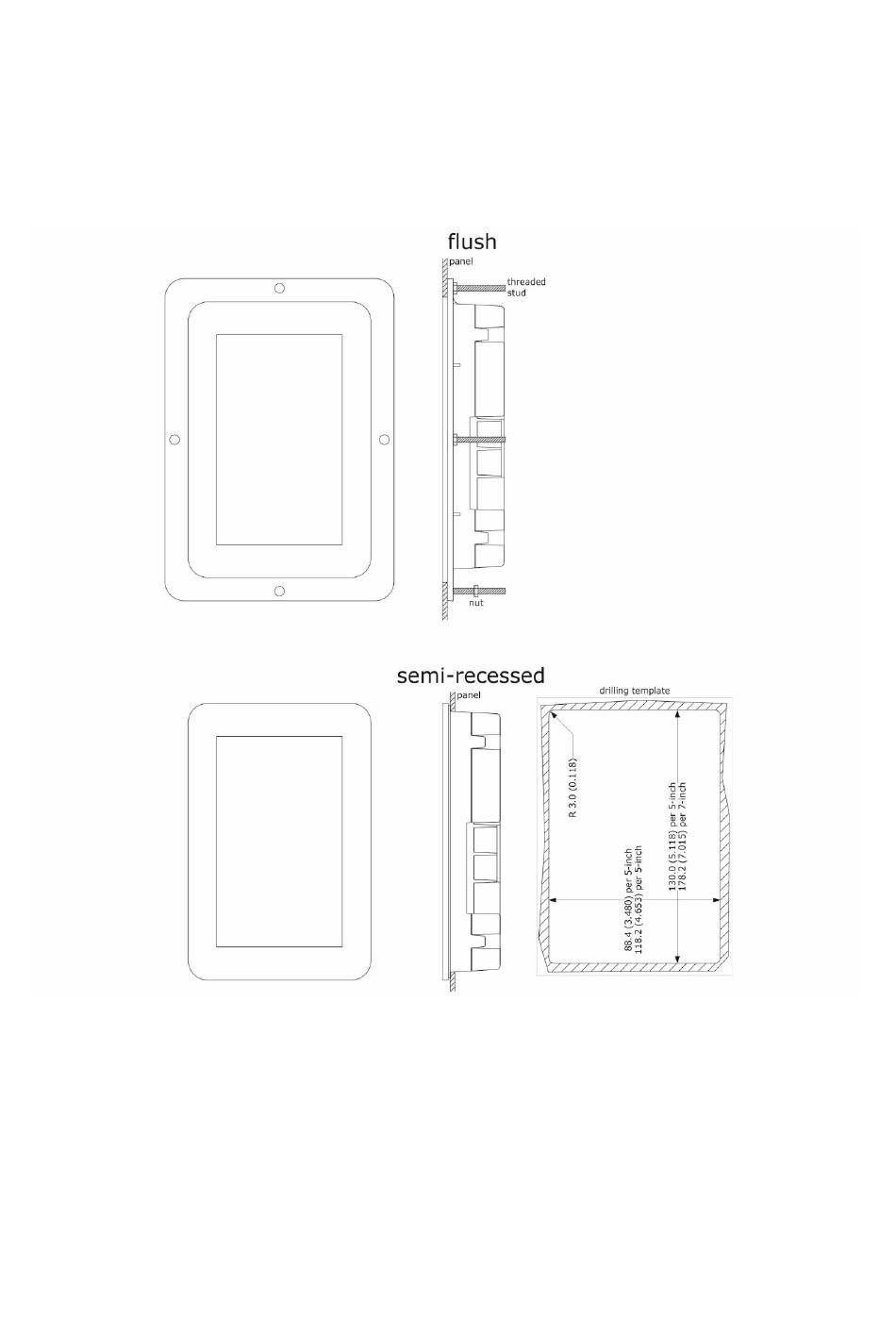

The figure below shows the installation of the user interface.
Depending on the model, installation can be:
-
flush, from behind the panel with threaded studs (not provided) welded to hold it in place;
-
semi-recessed, from the front of the panel with spring clips to hold it in place.
3.6 Control and multi-functional module installation
On a flat surface with spacers.
Vcolor 869/879 | Installer manual ver. 4.0 | Code 144VC869E404
page 15 of 96
