EVCO S.p.A.
Vcolor 869/879 | Installer manual ver. 4.0 | Code 144VC869E404
3.3 Control module measurements

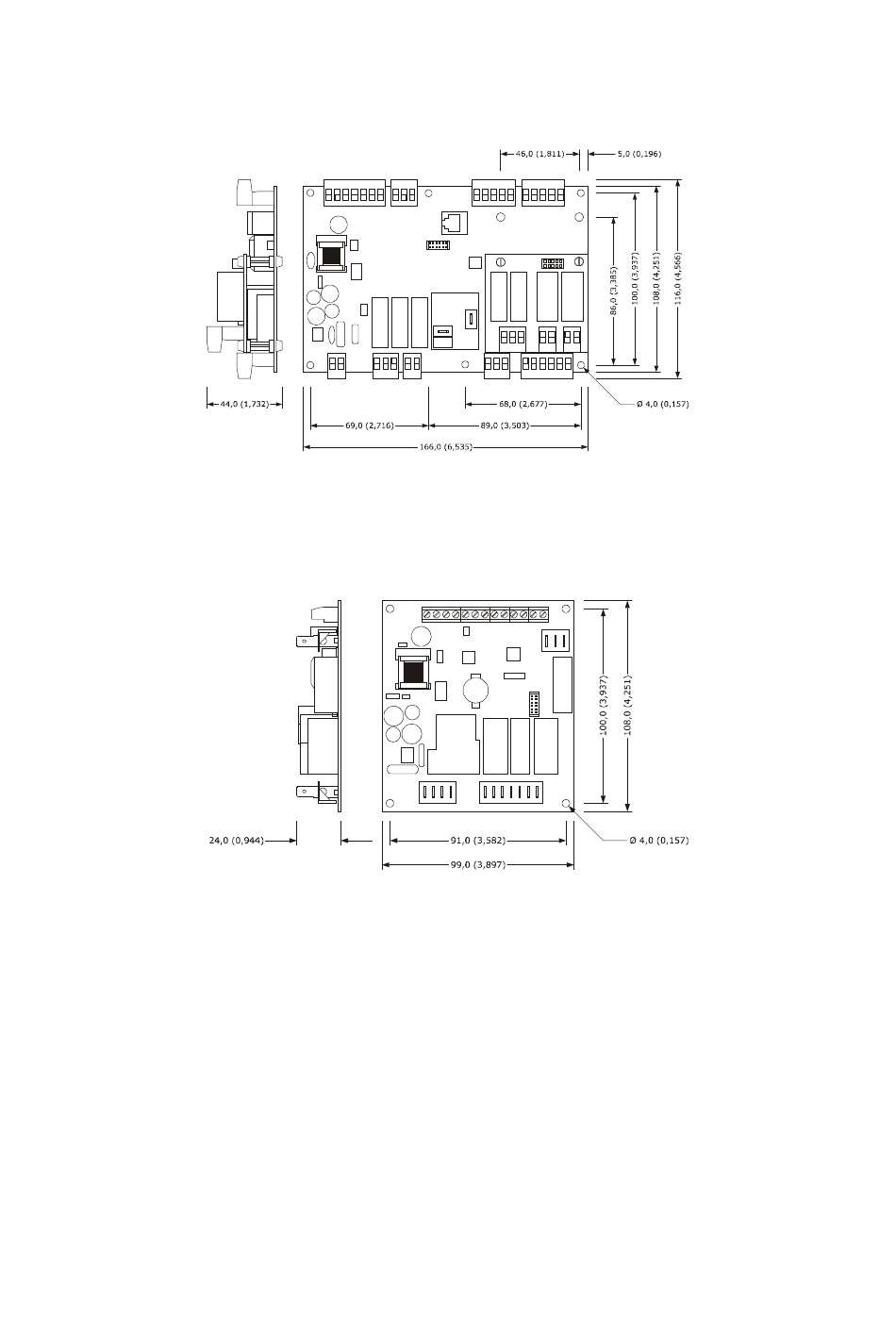

The picture below shows the measurements of the control module; measurements are expressed in mm (inches).
3.4
Multi-functional module measurements
The picture below shows the measurements of the multi-functional module; measurements are expressed in mm (inches).
page 14 of 96
