BrAKE CONTrOL AND TEMPErATUrE DETECTION FOr P CONTrOL
4.4.3 Operation without temperature detection
Use of the COMBIVERT without evaluation of the temperature input:
•
or
•
4.4.4 Connection of a KTy sensor
NOTICE
Name
TA1 (X1C.9);
TA2 (X1C.10)

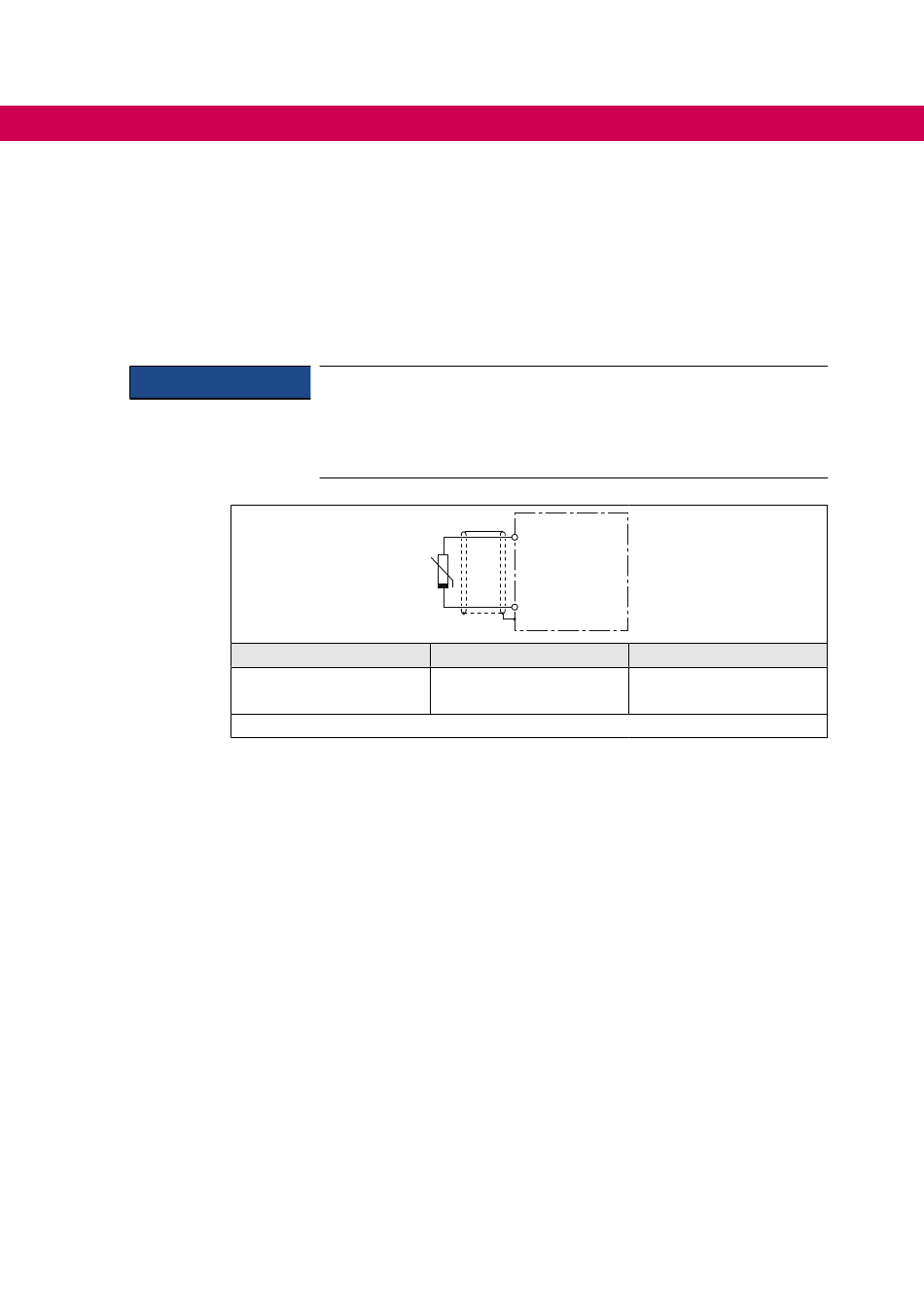

Abbildung 29: Connection of a KTY sensor for P control
68
Deactivate evaluation (pn12 =7).
Install bridge between terminal TA1 (X1C.9) and TA2 (X1C.10) (dr33=1).
No protection of the motor winding in case of wrong connection!
► Operate KTY sensors in forward direction. Non-observance leads to
incorrect measurements in the upper temperature range.
► KTY sensors may not be combined with other detections.
+
KTY84
X1C.9 (TA1)
X1C.10 (TA2)
Function
Temperature sensor input
Setting
dr33 = 0; KTY84/130
dr33 = 3; KTY83/110
