BrAKE CONTrOL AND TEMPErATUrE DETECTION FOr K AND A CONTrOL
4.3 Brake control and temperature detection for K and A control

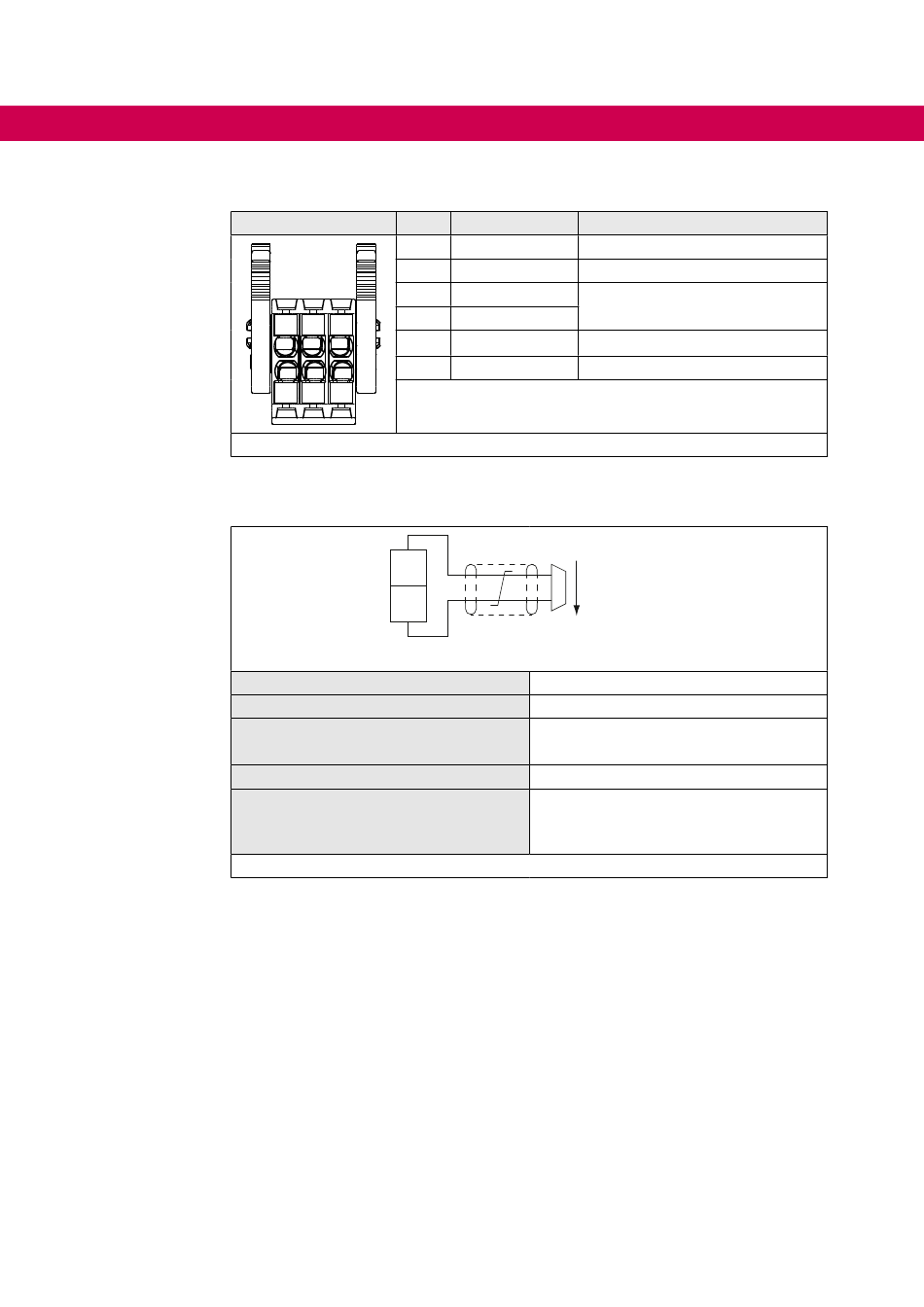

Abbildung 24: Assignment of terminal block X1C for K and A control
4.3.1 Specification and connection of the brake control
Name
Function
Output voltage
Maximum DC output current
Others
Abbildung 25: Example of connecting the brake output to X1C K / A
62
X1C PIN
1
2
3
4
2 4 6
5
6
1 3 5
1
X1C
2
Name Descriptions
BR+ Brake control / output +
BR- Brake control / output -
Reserved
Reserved
TA1
Temperature detection / input+
TA2 Temperature detection / input-
24V
U
dc =
I
_max =
BR+ (X1C.1); BR- (X1C.2)
Output for controlling a brake
• Minimum P24V_IN -2.4 V
• Maximum P24V_IN
2 A
Short-circuit proof, internal free-wheeling
path;
internal filter circuit
2A
