KEB COMBIVERT S6 Gebrauchsanleitung Seite 64

BrAKE CONTrOL AND TEMPErATUrE DETECTION FOr K AND A CONTrOL
4.3.3 Operation without temperature detection
Use of the COMBIVERT without evaluation of the temperature input:
•
or
•
4.3.4 Connection of a KTy sensor
NOTICE
Name
TA1 (X1C.5);
TA2 (X1C.6)
1

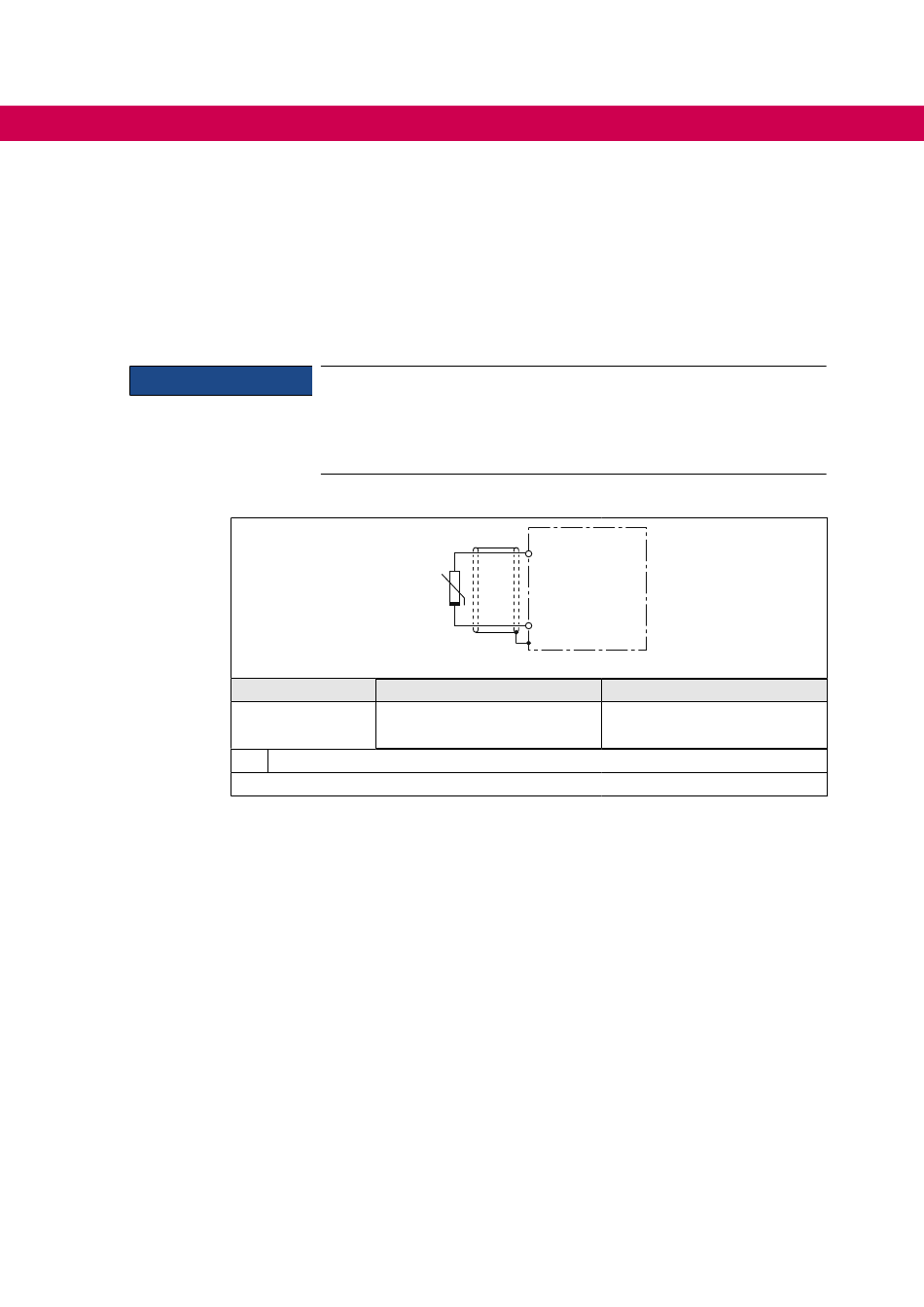

Abbildung 26: Connection of a KTY sensor for K and A control
1)
64
Deactivate evaluation (pn12 =7)
install bridge between terminal X1C.5 and X1C.6 (dr33=1)
No protection of the motor winding in case of wrong connection!
► Operate KTY sensors in forward direction. Non-observance leads to
incorrect measurements in the upper temperature range.
► KTY sensors may not be combined with other detections.
KTY84
Function
Temperature sensor input
Connection via shielding plate
If not available, place on the mounting plate.
TA1
+
TA2
①
Setting
dr33=0; KTY84/130
dr33=3; KTY83/110
1)
