EM-601A, EM-601 and EM-601B support Manual1,Manual2,Manual3 and Manual6. EM-301A, EM-
301 and EM-301B support Manual1, Manual2 and Manual3.
Press【START / STOP】to enable printing. The print duration is controlled by user.
Press 【START / STOP】 again to stop printing.
4.4.3 Rhythm Mode
Press the 【RHY】 to select the rhythm work mode. The equipment acquires data for the
specified rhythm lead. The acquisition time is 60 seconds, which has single lead rhythm and
3-lead rhythms .Press【 】and 【 】to switch the lead.
Rhythm 1
Rhythm 3
After the waveform is stable, press【START / STOP】to start printing. The print duration is 60s.
Press 【START / STOP】again to stop print.

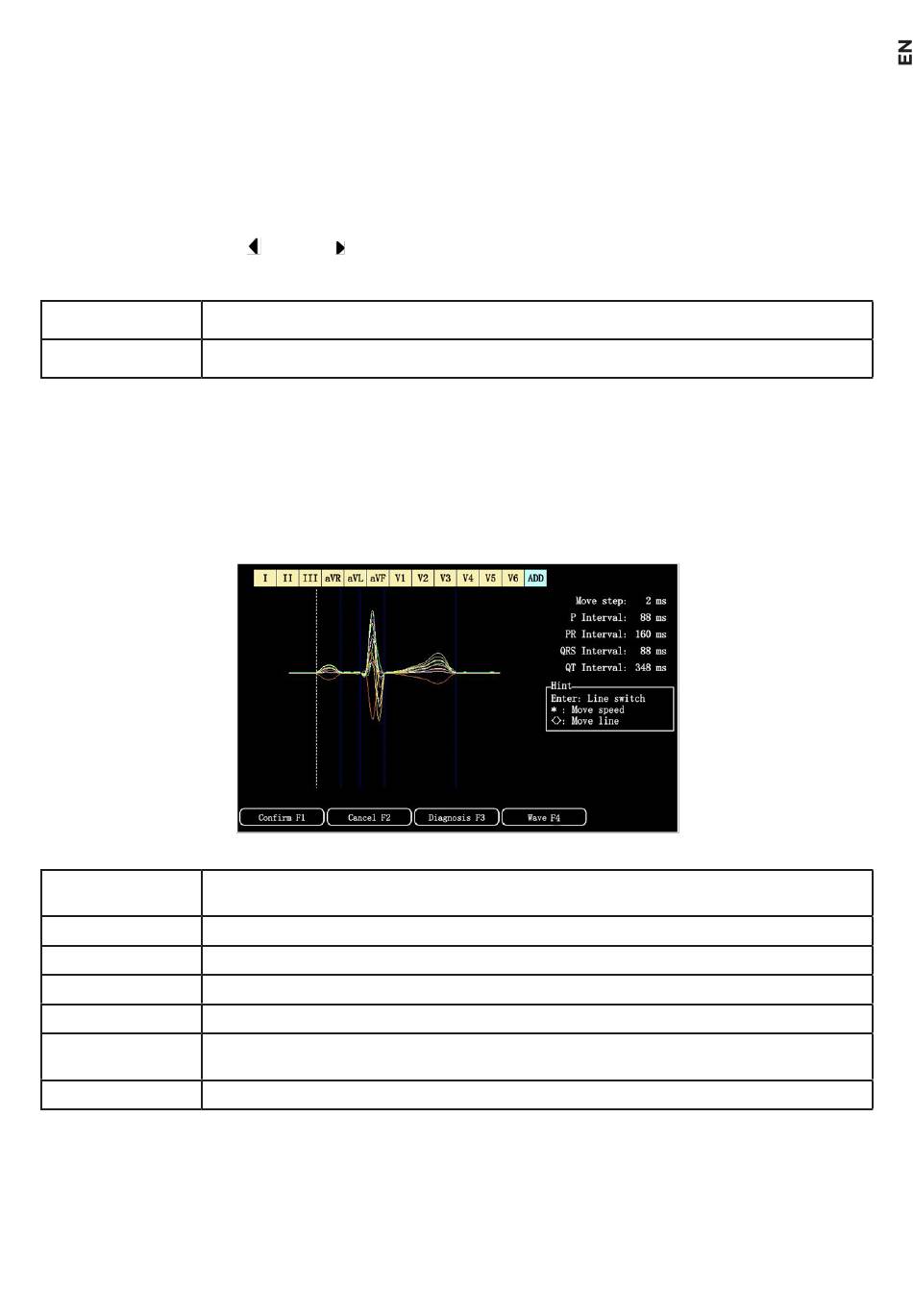

4.5 Reanalysis
Press F4 to enter «Setup» → «Analysis Setup», and enable «Reanalysis» function.
Save the parameter modification and exit, and print the average template and modified
Confirm F1
parameters and interpretations at the same time.
Cancel F2 Abandon recording and printing.
Diagnosis F3 Display the interpretation of waveform.
Wave F4 Enter replay interface.
Enter Switch the selected calibration line.
Set the move step of the calibration line. The available move steps are 2ms, 4ms, 8ms and
*
16ms.
<> Move the calibration line left and right according to the set steps
4.6 Print ECG Report
This equipment supports two print methods: thermal printer and USB printer. You can select
the appropriate printing method in the print setup interface.
Record the ECG data of selected single lead.
Records the ECG data of selected three leads simultaneously
