ROTOCLEAR C BASIC

Startup

This camera system is only to be put into op-
eration when the machine in which it is installed
complies with the provisions of Directive 2006/42/
EC (Machinery Directive)..
Commissioning is only to be performed by
qualified specialist personnel. During commis-
sioning, components that are starting up or spin-
ning pose a hazard. Avoid any contact during op-
eration.
Wear protective equipment, including safety
glasses.
Only connect and disconnect the camera
head when the power is off to prevent damage to
the system. Connect to an HDMI monitor or net-
work according to the desired use. It is also possi-
ble to use both options in parallel.
Rotoclear C Basic is only to be put into opera-
tion when it is in an installed state, such that the
heat can be dissipated adequately. The operation
of the camera head being mounted in a thermally
isolated fashion (small connecting area in combi-
nation with thermo-insulating material) is prohibit-
ed. Risk of burns due to temperatures exceeding
60 °C on the cylinder barrel surface of the camera
head.
The camera head is supplied with a voltage of
48 VDC. According to the IEC 60204-1:2019-06
standard, a maximum of 15 VDC may be applied to
the loose end of the data cable when it is used in
wet areas, such as in the tool spindle. In this case,
the power supply is shut off when the connection
between the HDMI unit and the camera head is
severed. It is only when the camera head is recon-
nected that the necessary supply voltage is once
again applied. The detection of the camera head
is performed using a test signal that is below 15
VDC. If this is insufficient according to the ma-

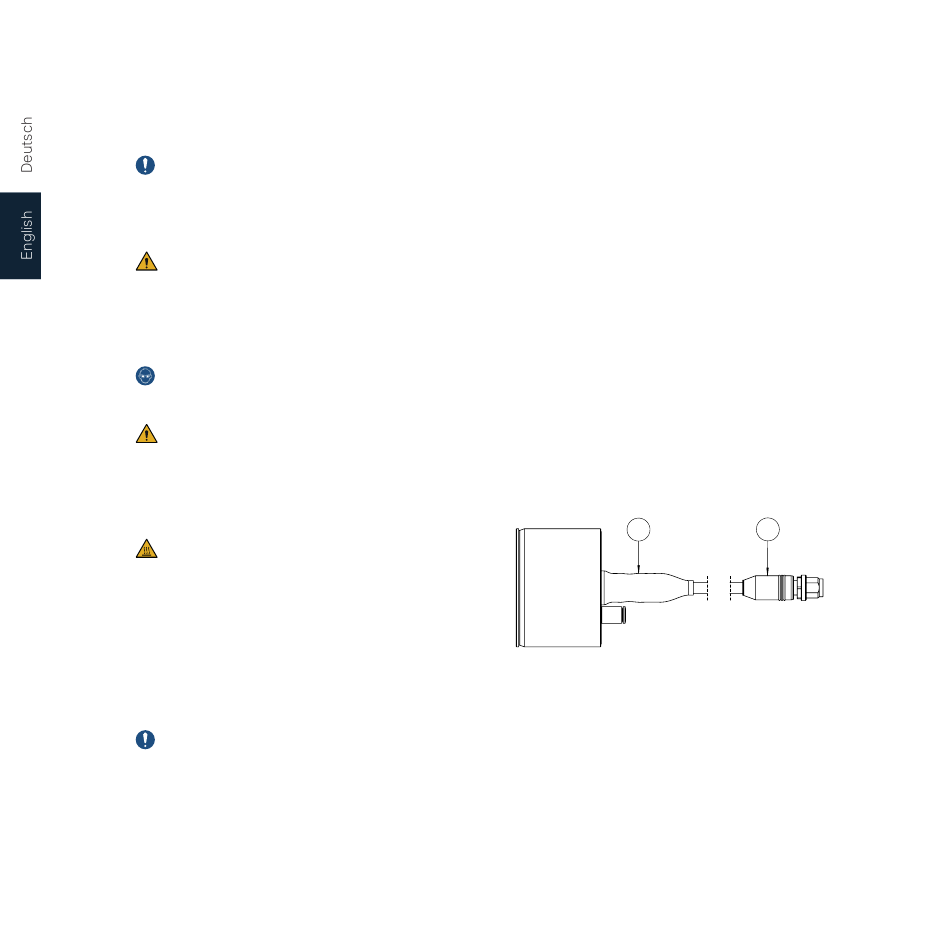

chine manufacturer's risk assessment, a pigtail
cable (Fig. 12-A) can be attached to the connector
of the camera head and the connection made
permanent, e.g. by means of a shrink hose (Fig. 12-
B). Thus, an electrically safe connection for wet
conditions is established. Instead of installing the
data cable with two male ends, it is necessary to
replace it with an extension cable with a female
end pointing towards the camera head and one
male end pointing towards the HDMI unit. Upon
receipt of a direct inquiry, the manufacturer can
provide the camera heads with a non-reversible
pigtail cable and an extension cable. For organiz-
ing the interfaces, data cables and pigtail cables
without the manufacturer, please refer to the nec-
essary data cable specifications see section "In-
terface" in chapter "Technical data" in the appen-
dix.
B
Figure 12
57
A
