ROTOCLEAR C BASIC
The data cable connected to the interface
(Fig. 3-A) and the sealing air tube (Fig. 3-B) can
also be routed in the area exposed to media with-
out additional protective tubing, provided that
they are adequately protected against damage
from chips or other sharp-edged parts and all
plug connections have been tightened to the cor-
rect torque.
Make sure that the system is disconnected
from the power supply. Connect the data cable
firmly with the plug to the corresponding interface
(Fig. 3-A) on the rear, such that the plug closes
tightly. Connect the plug connector to your com-
pressed air supply (Fig. 3-B).
When installing the camera head, please observe
the safety regulations, including the grounding
and the optional use of the pigtail cable for use in
wet rooms, see the chapter Startup.

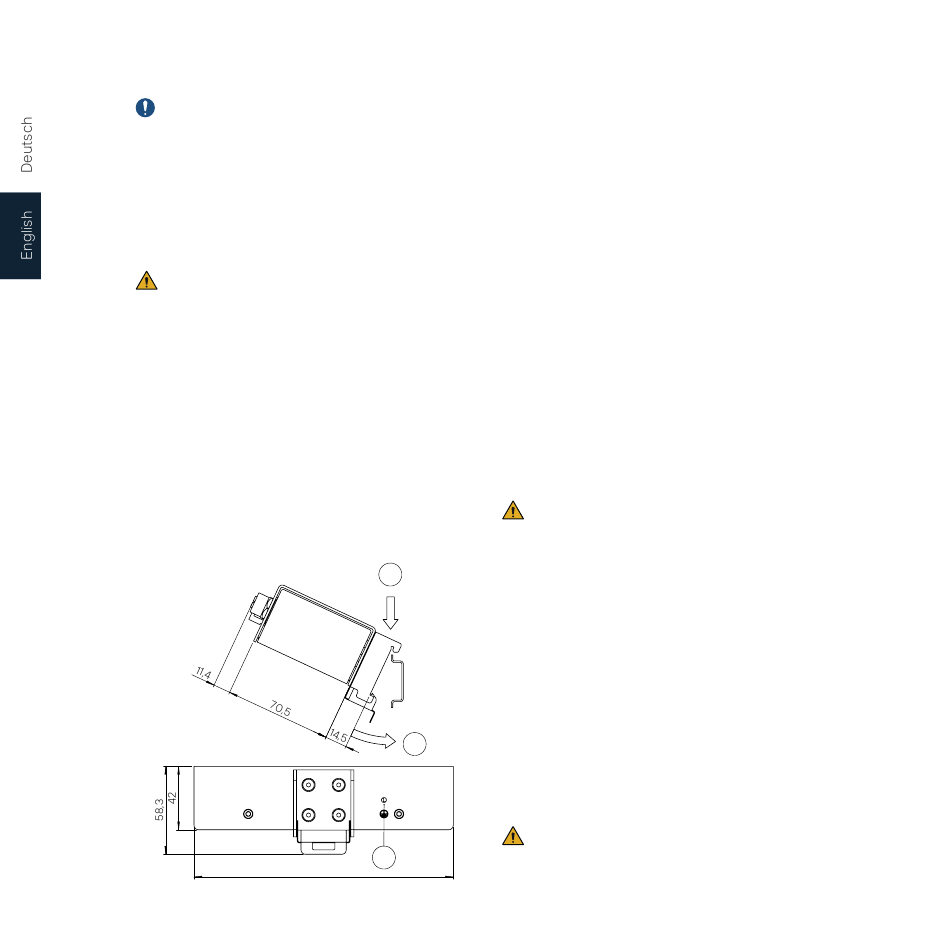

HDMI unit
Figure 4
1
2
A
172
The HDMI unit is typically installed on a top hat rail
according to DIN EN 60715 in the control cabinet
or in a protected area meant for electronic de-
vices. Please note that, among other things, the
HDMI unit with IP30 ingress protection is not pro-
tected against the ingress of fluids. For top-hat rail
mounting, you can use the pre-mounted top-hat
rail clip. It can be rotated in steps of 90° and af-
fixed to the housing. This allows you to attach the
HDMI unit in the desired position. Hang the upper
flange of the top-hat rail clip on the upper edge of
the top-hat rail (Fig. 4-1). Gently press the HDMI
unit downwards, such that the spring element of
the clip snaps into place at the bottom edge (Fig.
4-2).
To remove the HDMI unit, use a screwdriver and
gently pull the flange of the clip downwards. The
device can now easily be moved upwards and re-
moved.
Do not open the housing of the HDMI unit, as
this will void all warranty claims.
Supply lines
Lay the data cable (Fig. 2-A1) from the camera
head and/or the adapter of the mount into the
control cabinet and/or to the installation site of the
HDMI unit. When doing so, ensure proper sealing
at the transitions from areas exposed to media
into protected areas and/or into the control cab-
inet.
Connect the data cable to the interface for the
camera head labeled "Head".
The tightening torque for the M12 plug-in
connections is 0.6 Nm. Ensure that the torque is
adhered to, as liquids could penetrate the camera
head if the tightening is too loose or too tight.
