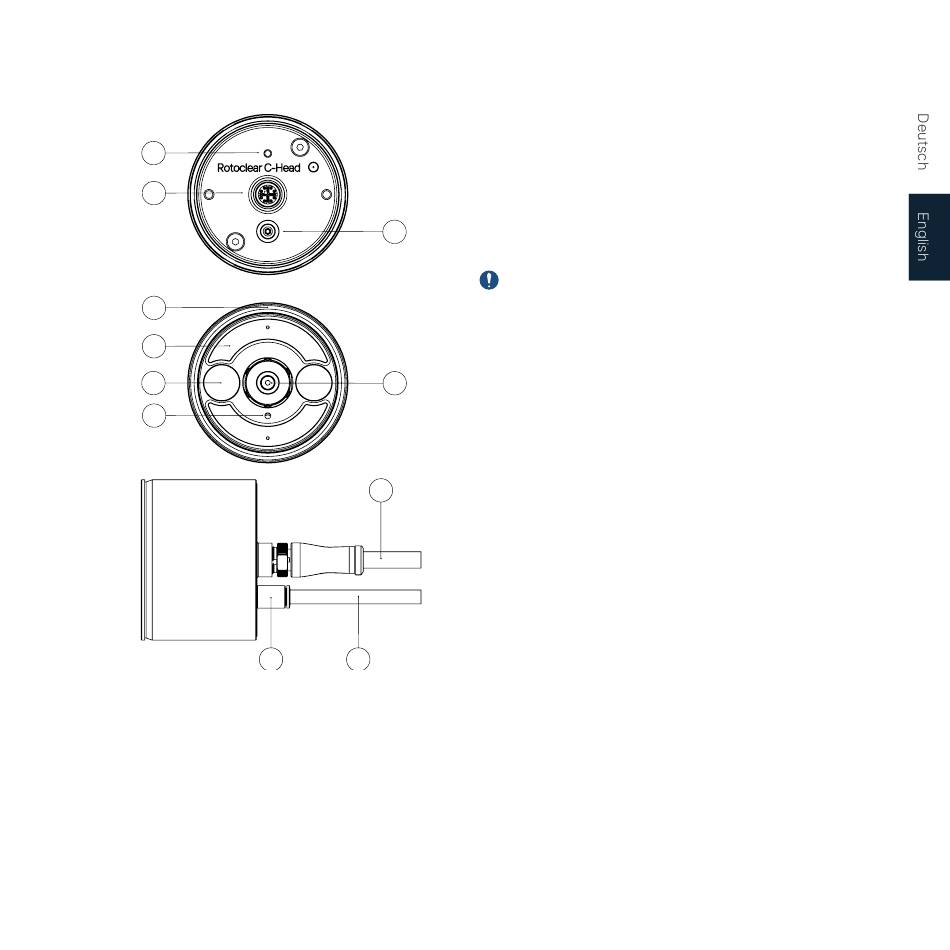

Figure 2
The rotor (Fig. 2-C) is on the front, which is affixed
via a center screw (Fig. 2-G) to the motor shaft,
under which the LED lighting (Fig. 2-D) is located.
Located between the LED modules is the lens (Fig.
2-E), which is protected by the protective window:
On the opposite side, a second lens may be in-
stalled depending on the model and configuration
variant. In connection with the Rotoclear C Basic,
this equipment variant corresponds to a camera
head with focus F1. The sealing air is fed through
the drill hole (Fig. 2-F) into the intervening rotor
space. This drill hole must be kept free and must
not be covered or closed in any way.
The device must not be operated constantly
under water or cooling lubricant, neither com-
pletely nor partially. If liquid enters the device,
B
please check the installation parameters.
Use Rotoclear C Basic only as intended. Roto-
clear shall not be liable for any use that is not as
intended.
