ROTOCLEAR C BASIC
Pay attention to the alignment according to
the marked plugs. The data cable (fig. 5-B) con-
nected to the side labeled "Camera" (fig. 5-C)
must point towards the camera head. The side la-
beled "Control Unit" (Fig. 5-D) must point towards
the HDMI unit.
The electronics of the signal amplifier are
protected against installation in the wrong orien-
tation. In this case, however, the camera head is
not recognized by the system.
There are M18 × 1.0 male threads on the con-
nectors, which can be used for mounting with the
separately available holder. The mount is
equipped with two M6 threads. M4 as well as M6
screws (fig. 5-E) are included for front or rear in-
stallation of the holder
Mounts (accessory)
Several mounts for installing the camera head in
the internal chamber of the machine are available
as optional accessories:
• The flex arm mount (trough-wall mounting)
(Fig. 6-A) is ideal for installation in a sheet
metal wall with a direct supply line feed-
through.
• The flex arm mount (pre-wall mounting) (Fig.
6-B) can be flexibly mounted on sheet metal
walls or in solid materials, even in places where
a direct cable feed through the housing wall is
not possible.
• The flex arm mount (magnetic mounting) (Fig.
6-C) is ideal for simple and quick mounting
without modification to the machine tool,
in particular for tests or selecting a suitable
installation location. For permanent installa-
tion, fixed mounting is recommended. To do
this, remove the magnetic shoe; the holder
then corresponds to the "pre-wall mounting"
version.
In the standard versions, an inclination of ± 40° (±
20° per joint) is possible for all variants of the flex
arm mount. Extension pieces are available, each
of which allows an additional inclination of ± 20°.

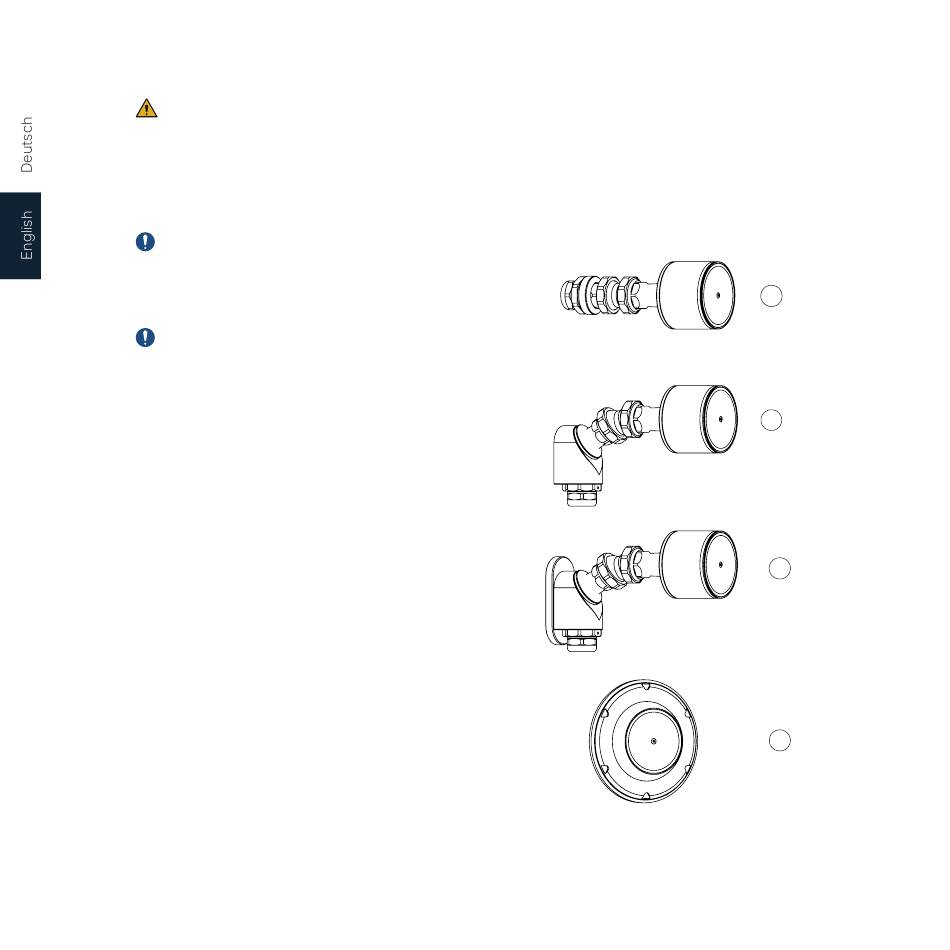

Figure 6
• The ball head mount (Fig. 6-D, shown without
tool and without counter holder) is designed
for installation in a sheet metal wall. Thanks to
51
A
B
C
D
