6 mm hole.
G1 G3 G2 C
H

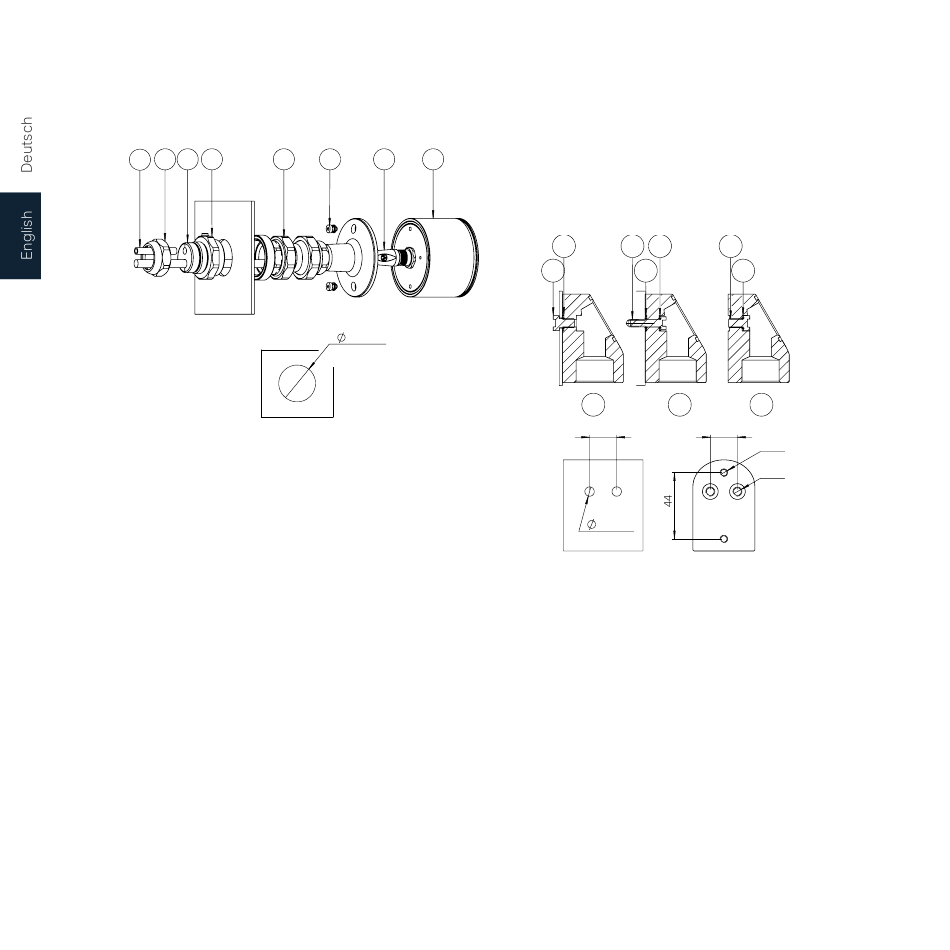

Figure 8
Flex arm mount (pre-wall mounting)
There are several options for fixing the flex arm
mount (pre-wall mounting) in place:
1. In sheet metal: Insert the M6 screws through
the sheet metal from the rear (Fig. 9-A) and fit
the M6 Usit ring (Fig. 9-B) over them. Use it to
screw the adapter in place.
2. In solid material with M5 thread: In this case, in-
sert the M5 × 20 screws (Fig. 9-C) with the M5
Usit ring (Fig. 9-D) fitted from the inside of the
adapter and screw it to the receiving part via
the prepared M5 threads.
3. M5 threads are available on the rear for other
types of mounting, see Figure 9. For this pur-
pose, seal the holes on the rear of the adapter
from the inside using the M6 screw (Fig. 9-E)
with the M6 Usit ring (Fig. 9-B) attached, as de-
scribed in 1, making sure that they are airtight.
Now feed the data cable through the adapter
from the angled side and screw the jointed sec-
tion of the mount onto the adapter. Use the en-
closed sealing ring to properly seal the screw con-
E B A
nection. On the flat side, mount the cable gland
as described in the previous section. Connect the
sealing air tube to the 6 mm hole.
+ 0,5
32,5
- 0,3
Figure 9
An insertion depth of approx. 20-30 mm is suf-
ficient; the sealing air tube does not have to be
pulled through the flex arm mount to the camera
head. The sealing air flows freely through the en-
tire flex arm mount to the camera head.
The sealing air tube is fixed in place by clamping
the cable gland closed.
Alternatively, a protective hose can also be
mounted between the cable gland and the adapt-
er. Cable glands are available separately for feed-
ing the supply lines through the machine wall.
D
B C D E
A D
1. 2.
18 18
+ 0,3
6,2
- 0,1
D
53
B
3.
M5
M6
