Components

HDMI unit
The HDMI unit is typically installed in the control
cabinet or in a protected area meant for electron-
ic devices, and therefore only has a basic protec-
tion class. The unit is equipped with a power con-
nection (Fig. 1-A) with a blue signal light arranged
below showing the status of the power supply, one
interface for the camera head (Fig. 1-B), an output
for connecting an HDMI monitor (Fig. 1-C) and two
USB ports (Fig. 1-D). On the rear of the HDMI unit,
there is a clip for top-hat rail mounting

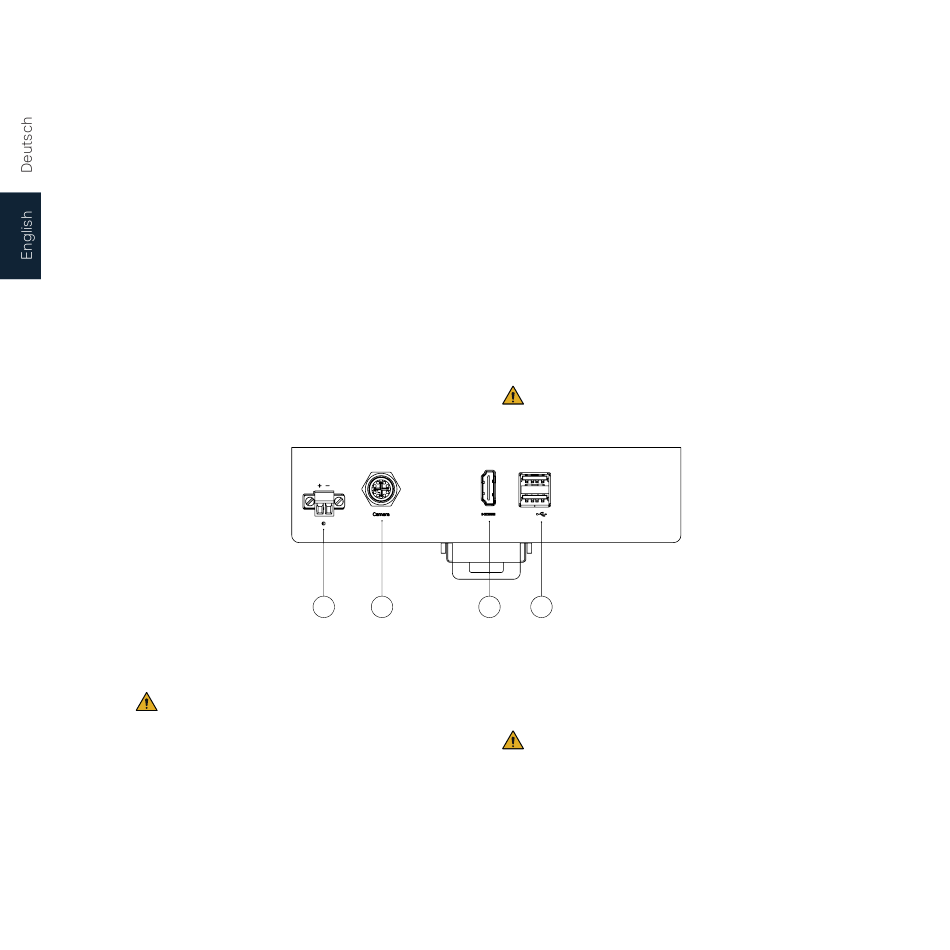

Figure 1

Camera head

The camera head is usually installed in the
application area. In assembly situations where the
camera head's connection side on its rear is un-
protected and exposed to fluids, it will be neces-
sary to refer to chapter "Startup".
The connection takes place via the interface to
the HDMI unit on the rear of the camera head
(Fig. 2-A). The data cable (Fig. 2-A1) supplies the
camera head with energy and is designed for con-
trol signals as well as data transfer with very high
A B C
bandwidth. Hence, when laying the data cables,
ensure that no interfering signals are introduced,
e.g. due to power cables that are laid in paral-
lel, carrying alternating current and insufficiently
shielded. Do not pinch or kink the data cable. The
camera head has a ground connection point (Fig.
2-H). For the ground connection, it will be neces-
sary to refer to the chapter Startup".
At the plug connector (Fig. 2-B), the camera head
is supplied with sealing air so that the area be-
tween the window and the cover is kept free of
the media in the environment. The Sealing air tube
(Fig. 2-B1) has a diameter of 6 mm.
In the event of incorrect adjustment, contam-
ination of the sealing air or damage to the spinning
D
window, liquid might contaminate the area be-
tween the spinning window and the front of the
camera head, impairing the view and invalidating
the warranty.
Included in the scope of delivery is a covering
cap. Use it to cover the front of the camera head
temporarily in the event of damage if the machine
is to be put into operation before it is repaired.
When the covering cap is in use, deactivate the
sealing air.
