As soon as the correct alignment is defined, you
can tighten the clamping ring with the enclosed
tool (Fig. 11-H) to fix the alignment of the camera
head.
A D B C
115
1-4
115
±1
6x 60°
6x M5
1.

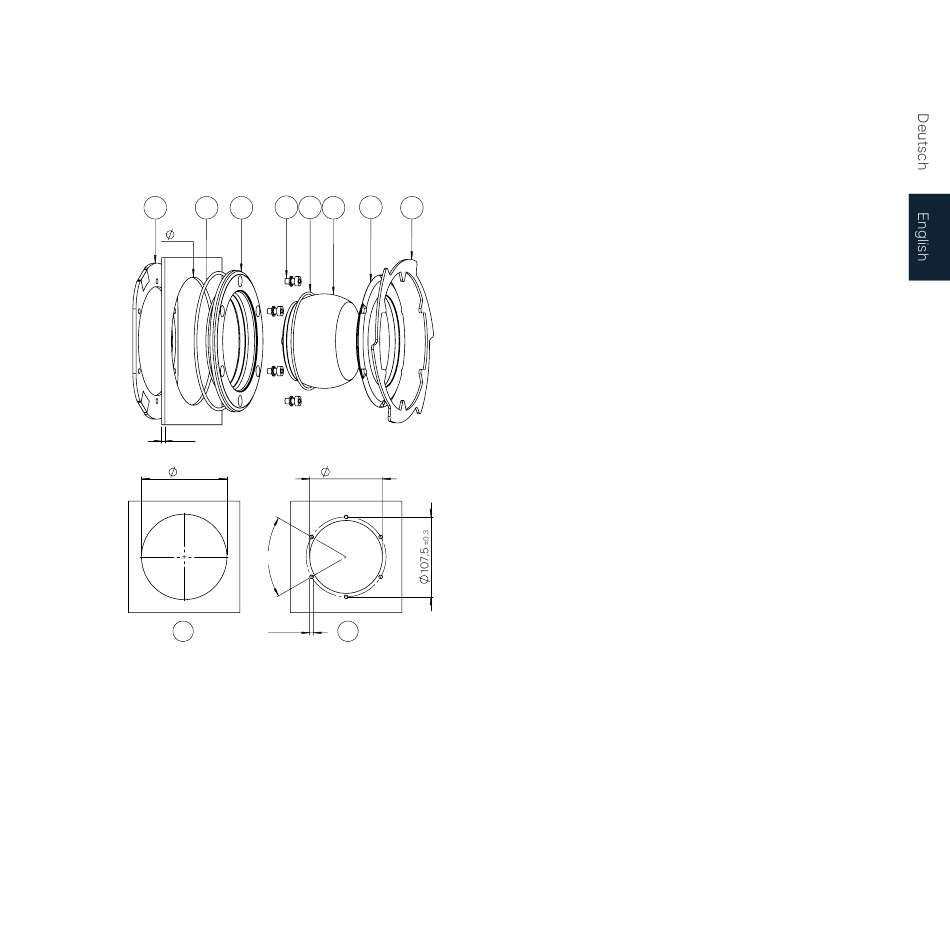

Figure 11
Spindle mounting
The camera head can be mounted in the area of
the machine tool spindle, i.e. directly on the head-
stock, even if the machine tool spindle is designed
to be mobile along an A and/or B axis. It is de-
signed to record the movements that can occur
at the spindle head. A special mount is not provid-
ed for this purpose. Use the options listed in the
section "Mounting the camera head" to mount the
camera head
