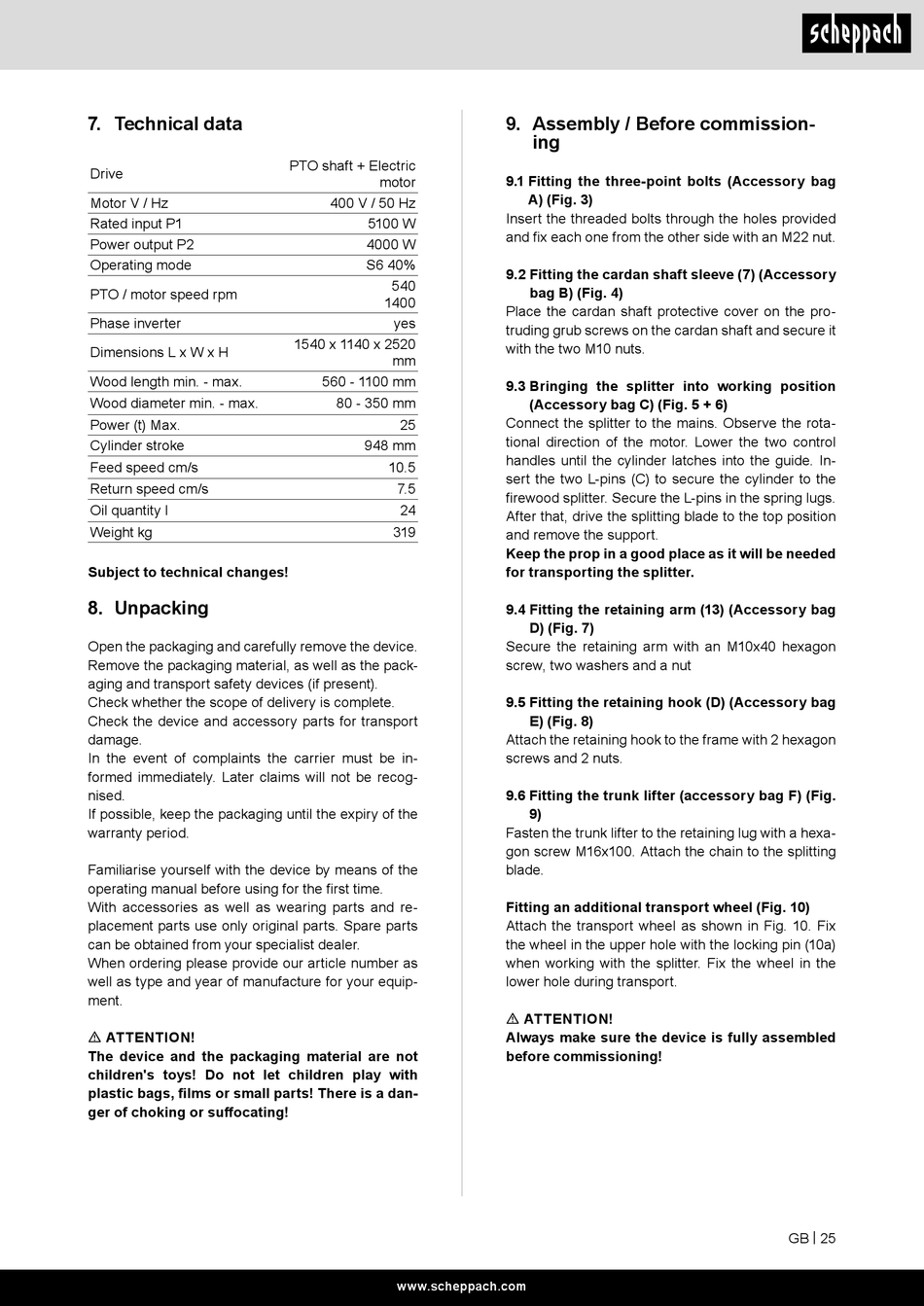

7. Technical data
Drive
Motor V / Hz
Rated input P1
Power output P2
Operating mode
PTO / motor speed rpm
Phase inverter
Dimensions L x W x H
Wood length min. - max.
Wood diameter min. - max.
Power (t) Max.
Cylinder stroke
Feed speed cm/s
Return speed cm/s
Oil quantity l
Weight kg
Subject to technical changes!
8. Unpacking
Open the packaging and carefully remove the device.
Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
Check whether the scope of delivery is complete.
Check the device and accessory parts for transport
damage.
In the event of complaints the carrier must be in-
formed immediately. Later claims will not be recog-
nised.
If possible, keep the packaging until the expiry of the
warranty period.
Familiarise yourself with the device by means of the
operating manual before using for the first time.
With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with
plastic bags, films or small parts! There is a dan-
ger of choking or suffocating!
PTO shaft + Electric
motor
400 V / 50 Hz
5100 W
4000 W
S6 40%
540
1400
yes
1540 x 1140 x 2520
mm
560 - 1100 mm
80 - 350 mm
25
948 mm
10.5
7.5
24
319
www.scheppach.com
9. Assembly / Before commission-
ing
9.1 Fitting the three-point bolts (Accessory bag
A) (Fig. 3)
Insert the threaded bolts through the holes provided
and fix each one from the other side with an M22 nut.
9.2 Fitting the cardan shaft sleeve (7) (Accessory
bag B) (Fig. 4)
Place the cardan shaft protective cover on the pro-
truding grub screws on the cardan shaft and secure it
with the two M10 nuts.
9.3 Bringing the splitter into working position
(Accessory bag C) (Fig. 5 + 6)
Connect the splitter to the mains. Observe the rota-
tional direction of the motor. Lower the two control
handles until the cylinder latches into the guide. In-
sert the two L-pins (C) to secure the cylinder to the
firewood splitter. Secure the L-pins in the spring lugs.
After that, drive the splitting blade to the top position
and remove the support.
Keep the prop in a good place as it will be needed
for transporting the splitter.
9.4 Fitting the retaining arm (13) (Accessory bag
D) (Fig. 7)
Secure the retaining arm with an M10x40 hexagon
screw, two washers and a nut
9.5 Fitting the retaining hook (D) (Accessory bag
E) (Fig. 8)
Attach the retaining hook to the frame with 2 hexagon
screws and 2 nuts.
9.6 Fitting the trunk lifter (accessory bag F) (Fig.
9)
Fasten the trunk lifter to the retaining lug with a hexa-
gon screw M16x100. Attach the chain to the splitting
blade.
Fitting an additional transport wheel (Fig. 10)
Attach the transport wheel as shown in Fig. 10. Fix
the wheel in the upper hole with the locking pin (10a)
when working with the splitter. Fix the wheel in the
lower hole during transport.
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
GB | 25
