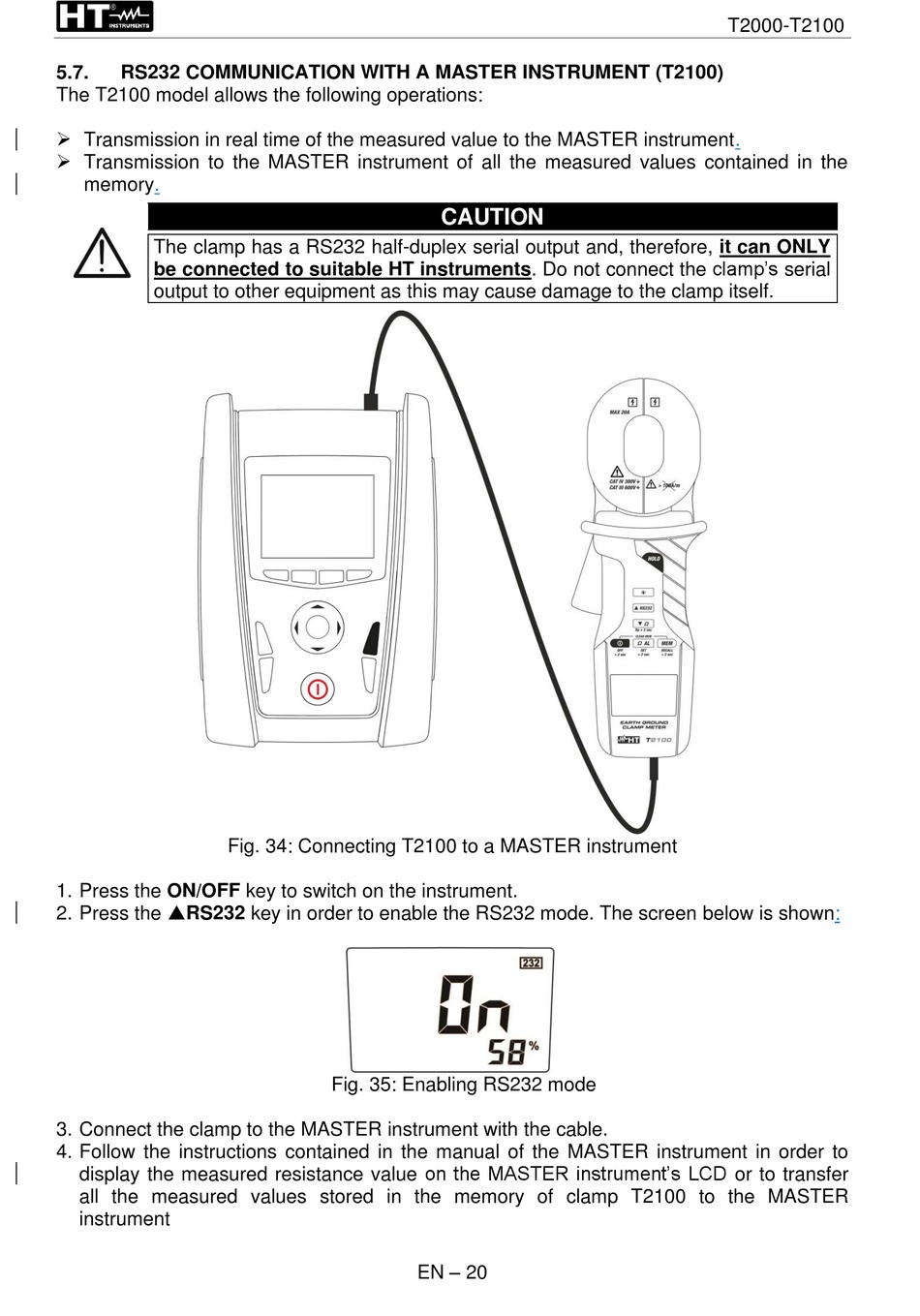

5.7. RS232 COMMUNICATION WITH A MASTER INSTRUMENT (T2100)
The T2100 model allows the following operations:
➢ Transmission in real time of the measured value to the MASTER
➢ Transmission to the MASTER instrument of all the measured values contained in the
memory.
The clamp has a RS232 half-duplex serial output and, therefore, it can ONLY
be connected to suitable HT instruments. Do not connect the clamp's serial
output to other equipment as this may cause damage to the clamp itself.
Fig. 34: Connecting T2100 to a MASTER instrument
1. Press the ON/OFF key to switch on the instrument.
2. Press the RS232 key in order to enable the RS232 mode. The screen below is
3. Connect the clamp to the MASTER instrument with the cable.
4. Follow the instructions contained in the manual of the MASTER instrument in order to
display the measured resistance value on the MASTER instrument's LCD or to transfer
all the measured values stored in the memory of clamp T2100 to the MASTER
instrument
CAUTION
Fig. 35: Enabling RS232 mode
EN – 20
T2000-T2100
instrument.
shown:
