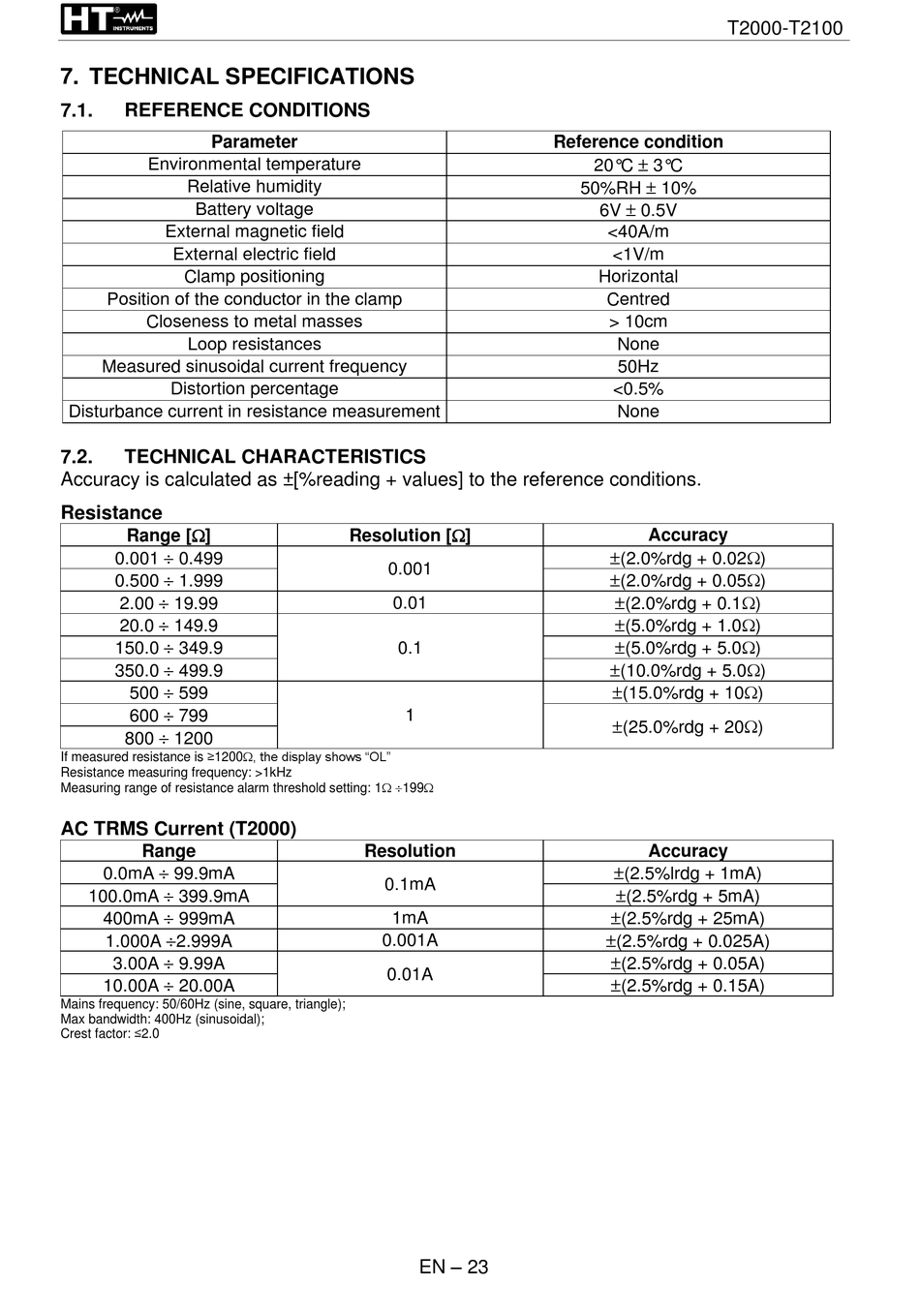

7. TECHNICAL SPECIFICATIONS

7.1.

REFERENCE CONDITIONS

Parameter
Environmental temperature
Relative humidity
Battery voltage
External magnetic field
External electric field
Clamp positioning
Position of the conductor in the clamp
Closeness to metal masses
Loop resistances
Measured sinusoidal current frequency
Distortion percentage
Disturbance current in resistance measurement
7.2.

TECHNICAL CHARACTERISTICS

Accuracy is calculated as ±[%reading + values] to the reference conditions.
Resistance
Range []
0.001  0.499
0.500  1.999
2.00  19.99
20.0  149.9
150.0  349.9
350.0  499.9
500  599
600  799
800  1200
If measured resistance is ≥1200, the display shows "OL"
Resistance measuring frequency: >1kHz
Measuring range of resistance alarm threshold setting: 1 199
AC TRMS Current (T2000)
Range
0.0mA  99.9mA
100.0mA  399.9mA
400mA  999mA
1.000A 2.999A
3.00A  9.99A
10.00A  20.00A
Mains frequency: 50/60Hz (sine, square, triangle);
Max bandwidth: 400Hz (sinusoidal);
Crest factor: ≤2.0
Resolution []
0.001
0.01
0.1
1
Resolution
0.1mA
1mA
0.001A
0.01A
EN – 23
Reference condition
20°C  3°C
50%RH  10%
6V  0.5V
<40A/m
<1V/m
Horizontal
Centred
> 10cm
None
50Hz
<0.5%
None
Accuracy
(2.0%rdg + 0.02)
(2.0%rdg + 0.05)
(2.0%rdg + 0.1)
(5.0%rdg + 1.0)
(5.0%rdg + 5.0)
(10.0%rdg + 5.0)
(15.0%rdg + 10)
(25.0%rdg + 20)
Accuracy
(2.5%lrdg + 1mA)
(2.5%rdg + 5mA)
(2.5%rdg + 25mA)
(2.5%rdg + 0.025A)
(2.5%rdg + 0.05A)
(2.5%rdg + 0.15A)
T2000-T2100
